SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

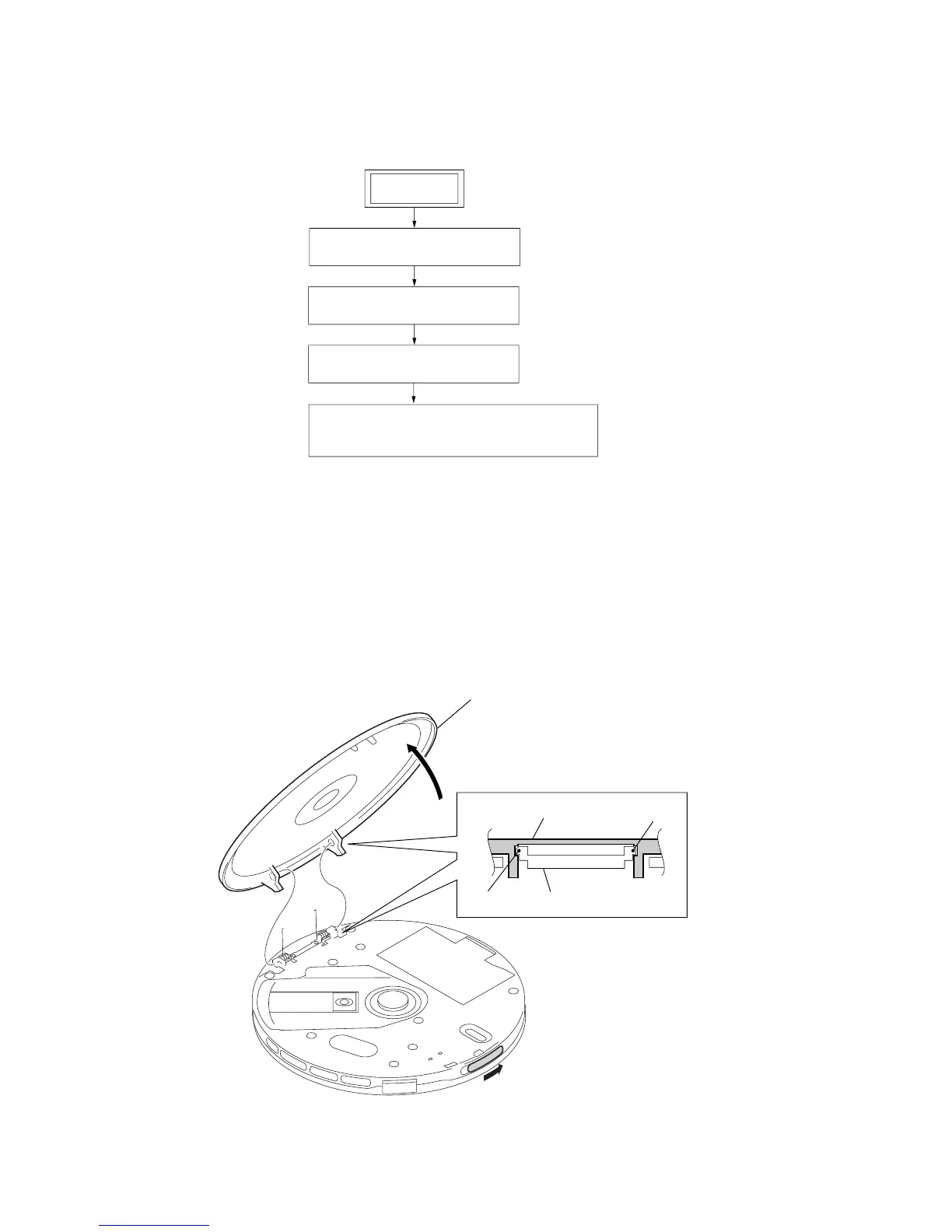

3-2. LID UPPER SUB ASSY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
3-2. LID UPPER SUB ASSY
(Page 6)
3-3. PLATE (SPRING)
(Page 7)
3-5. MAIN BOARD,
OPTICAL PICK-UP SECTION (CDM-3325ES)
(Page 8)
SET
3-4. CABINET (UPPER) SUB ASSY
(Page 7)
3 lid upper sub assy
1
2
lid upper sub assy
boss
boss
cabinet front sub assy
