D-EJ775
8

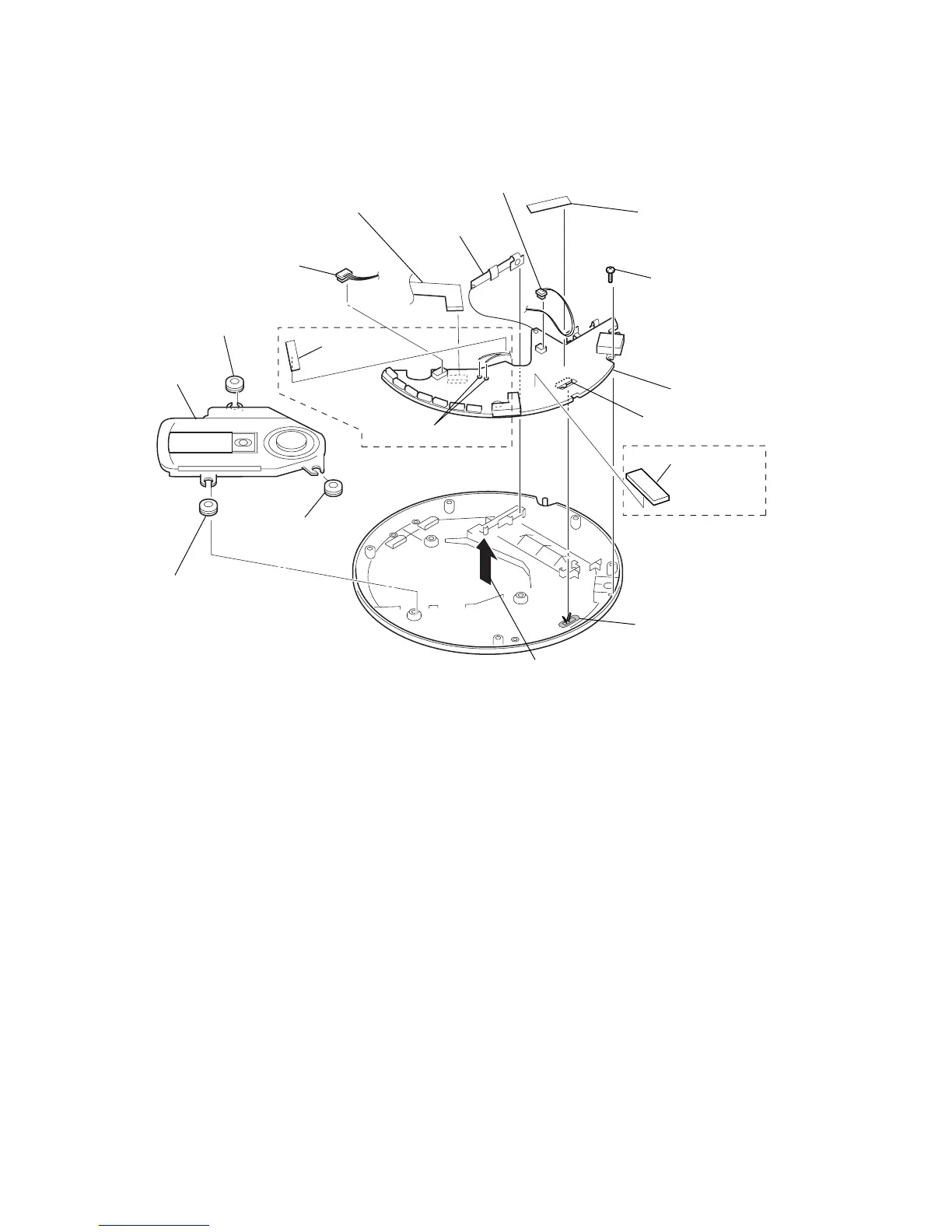

3-5. MAIN BOARD OPTICAL PICK-UP SECTION (CDM-3325ES)
qa
main board
0
SUB board
3
cushion
9
cushion
5
flexible board
(CN501)
8
Remove two solders.
6
insulator
7
optical pick-up section
(CDM-3325ES)
1
screw (B) (1.4)
4
connector (CN502)
2
Hold up both the main board and the optical
pick-up section at once, and remove them
form the cabinet (lower) sub assy.
Note : Handle the flexible board with care when
you hold up the optical pick-up section.
Note : On installation of main board,
adjust the position of switch
(S802) and knob (hold).
6
insulator
6
insulator
4
connector (CN503)
terminal board
(relay), battery
knob (hold)
main board: suffix -11, -12
main board: suffix -11, -12
S802
To Next Page
