Sony DAV-DZ210D - Index to Parts and Controls

84
GB

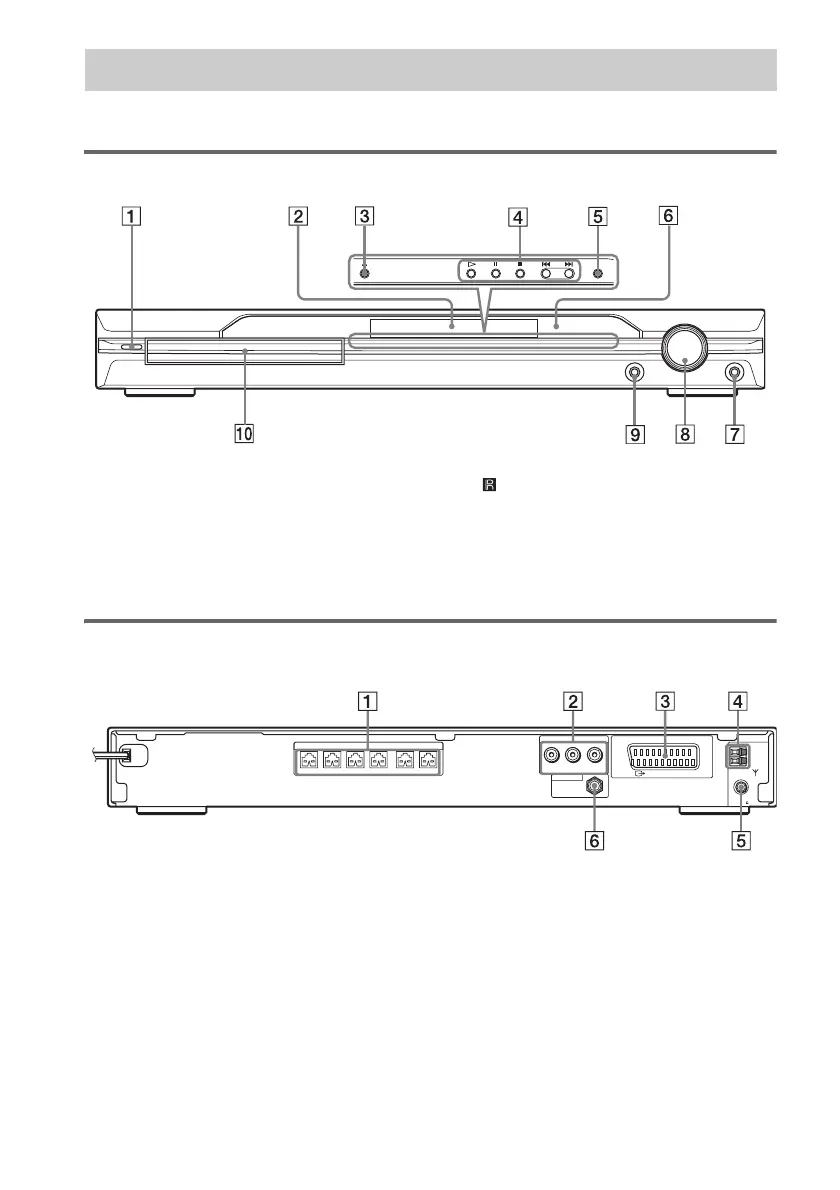

For more information, refer to the pages indicated in parentheses.
Front panel
A "/1 (on/standby) (25)
B Front panel display (85)
C A (open/close) (25)
D Disc operation (25)
E FUNCTION (25)
F (remote sensor) (9)
G PHONES jack (25)
H VOLUME control (25)
I AUDIO IN/A.CAL MIC jack (16, 26)
J Disc tray (25)
Rear panel
A SPEAKER jacks (10)
B COMPONENT VIDEO OUT jacks (21)
C EURO AV T OUTPUT (TO TV) jack (10,
21)
D AM terminal (10)
E COAXIAL FM 75Ω jack (10)
F ANTENNA DAB 75Ω jack (10)
Index to Parts and Controls
COMPONENT VIDEO OUT
YP B /C B P R /C R
(DVD
ONLY)
COAXIAL
AM
FM 75
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER WOOFER
EURO AV
OUTPUT(TO TV)
ANTENNA
DAB 75Ω
