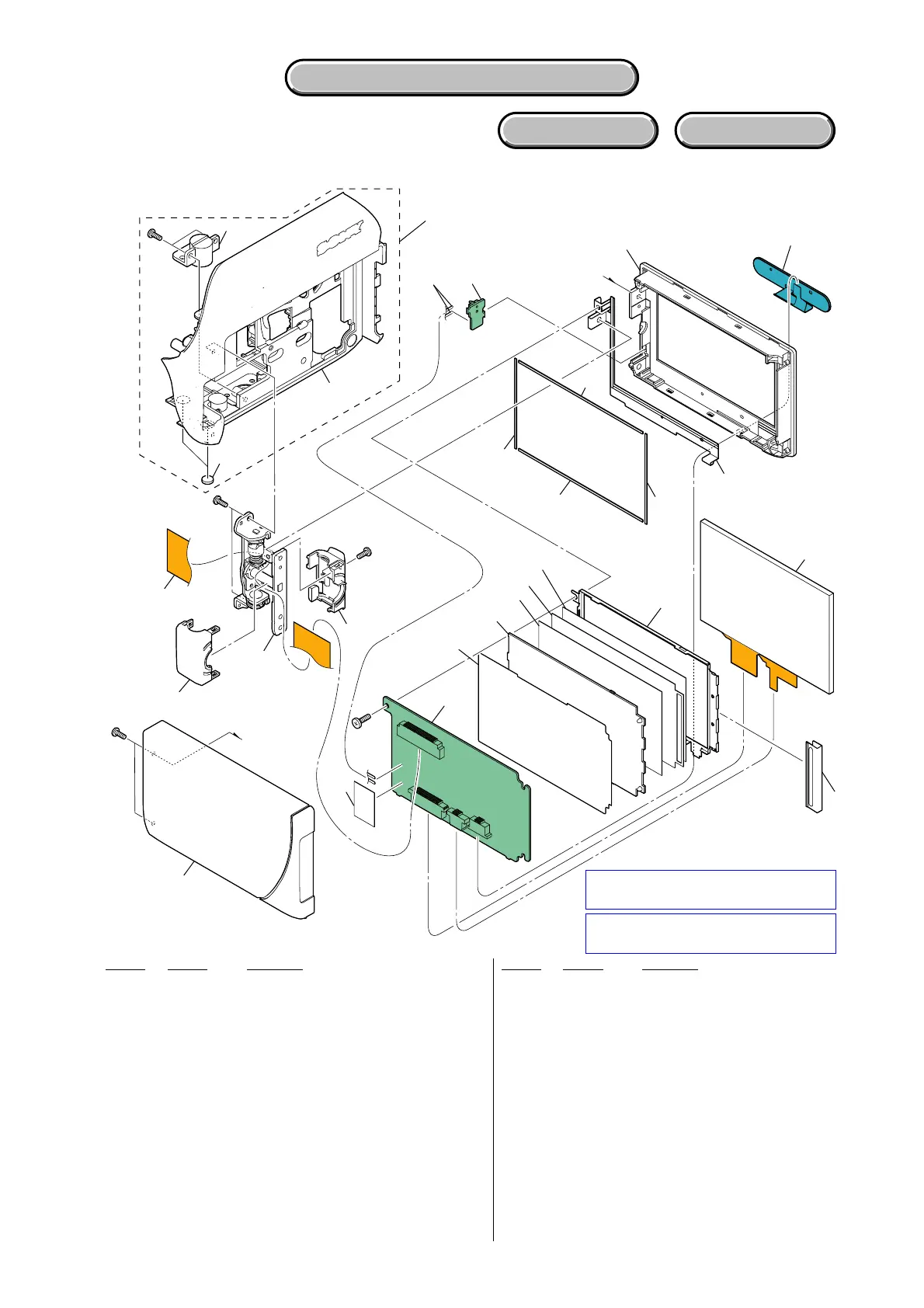

5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD306E/DVD308/DVD308E/DVD708/DVD708E_L2
PD-315
252
251
253
258
261
266
265
264
263
262
259
ns
267
ns
LCD901
257
256
269
268
258
259
270
(Note)
#2
#11
#1
254
260
255
#11
ns
#11
272
271
HARDWARE LIST
DISASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
251 2-699-212-01 SCREW, TRIPOD
252 2-589-376-01 FOOT (395), RUBBER
253 A-1246-117-A CABINET (R) ASSY(222) (SERVICE)
254 A-1228-515-A RV-002 BOARD, COMPLETE
255 1-479-995-11 KEY BLOCK, CONTROL (SB22200)
256 2-699-201-01 CABINET (M (222)), P (EXCEPT J)
256 2-699-201-11 CABINET (M (222)), P (J)
* 257 2-699-203-01 PLATE (222), GROUND
* 258 2-699-205-01 CUSHION (H (222)), PANEL
* 259 2-699-207-01 CUSHION (V (222)), PANEL
260 1-964-966-11 HARNESS (HN-024)
261 2-694-516-01 FRONT FRAME (2.7)
262 2-694-512-01 PRISM SHEET V (2.7)
263 2-694-513-01 PRISM SHEET H (2.7)
264 2-694-514-01 DIFFUSION SHEET (2.7)
265 2-666-801-11 LIGHT GUIDE (2.7)
266 2-694-515-01 REFLECTION SHEET (2.7)
267 A-1228-513-A PD-315 BOARD, COMPLETE
268 2-699-199-11 CABINET (C), P (DVD308/DVD308E)
268 2-699-199-51 CABINET (C), P (DVD306E)
268 2-699-199-61 CABINET (C), P (DVD708/DVD708E)
269 X-2149-207-1 HINGE ASSY (M), PANEL
270 1-871-287-11 FP-573 FLEXIBLE BOARD (Note)
271 2-699-222-12 COVER (C), HINGE
272 2-699-223-02 COVER (M), HINGE
LCD901 A-1202-057-A TP BLOCK ASSY (27TSTNI07)
#1 2-635-562-11 SCREW (M1.7) (Black)
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
5-1-6. LCD BLOCK
ns: not supplied
Note: Be sure to read “HELP” when you
install the FP-573 flexible board.
Note: FP-573フレキシブル基板取付時は
ヘルプを必ずお読みください。
Ver. 1.2 2007.05
