5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD306E/DVD308/DVD308E/DVD708/DVD708E_L2
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
301 2-699-239-01 STOPPER, VF
302 2-699-238-01 CABINET, VF SLIDE
303 1-479-927-11 SWITCH BLOCK, CONTROL (PS22100)
(EXCEPT J)
303 1-479-927-21 SWITCH BLOCK, CONTROL (PS22100) (J)
* 304 2-654-871-01 CUSHION (CF)
* 305 2-638-813-01 PLATE (CF), DEFLECTION
306 2-699-226-01 CABINET, VF
307 X-2149-209-1 EYE CUP ASSY (222)
308 2-699-240-01 SPRING, VF SLIDE
* 309 2-699-236-01 CABINET (222), INNER
* 310 2-638-815-01 SPACER, LCD
* 311 2-638-816-01 PLATE (TFT), DEFLECTION
* 312 2-638-818-01 ILLUMINATOR
* 313 2-638-819-01 CUSHION, LCD
* 314 2-638-820-01 GUIDE, LAMP
315 A-1228-519-A BL-007 BOARD, COMPLETE
316 1-871-285-11 FP-571 FLEXIBLE BOARD
317 2-699-246-01 COVER, DC (IN)
318 A-1246-110-A BT PANEL ASSY (E) (SERVICE) (EXCEPT BR, J)
318 A-1246-111-A BT PANEL ASSY (J) (SERVICE) (J)
318 A-1246-112-A BT PANEL ASSY (B) (SERVICE) (BR)
319 2-589-376-01 FOOT (395), RUBBER
320 1-871-284-11 FP-570 FLEXIBLE BOARD
* 321 2-699-244-01 PLATE (UPPER), BT PANEL
* 322 2-699-279-01 SHEET METAL, DC (IN)
* 323 3-208-237-01 SHEET (BT)
BH001 1-780-064-21 BATTERY TERMINAL BOARD
J001 1-815-792-11 CONNECTOR, DC-IN (7.2V)
LCD902 8-753-241-17 LCX076AKE-J
#1 2-635-562-11 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)

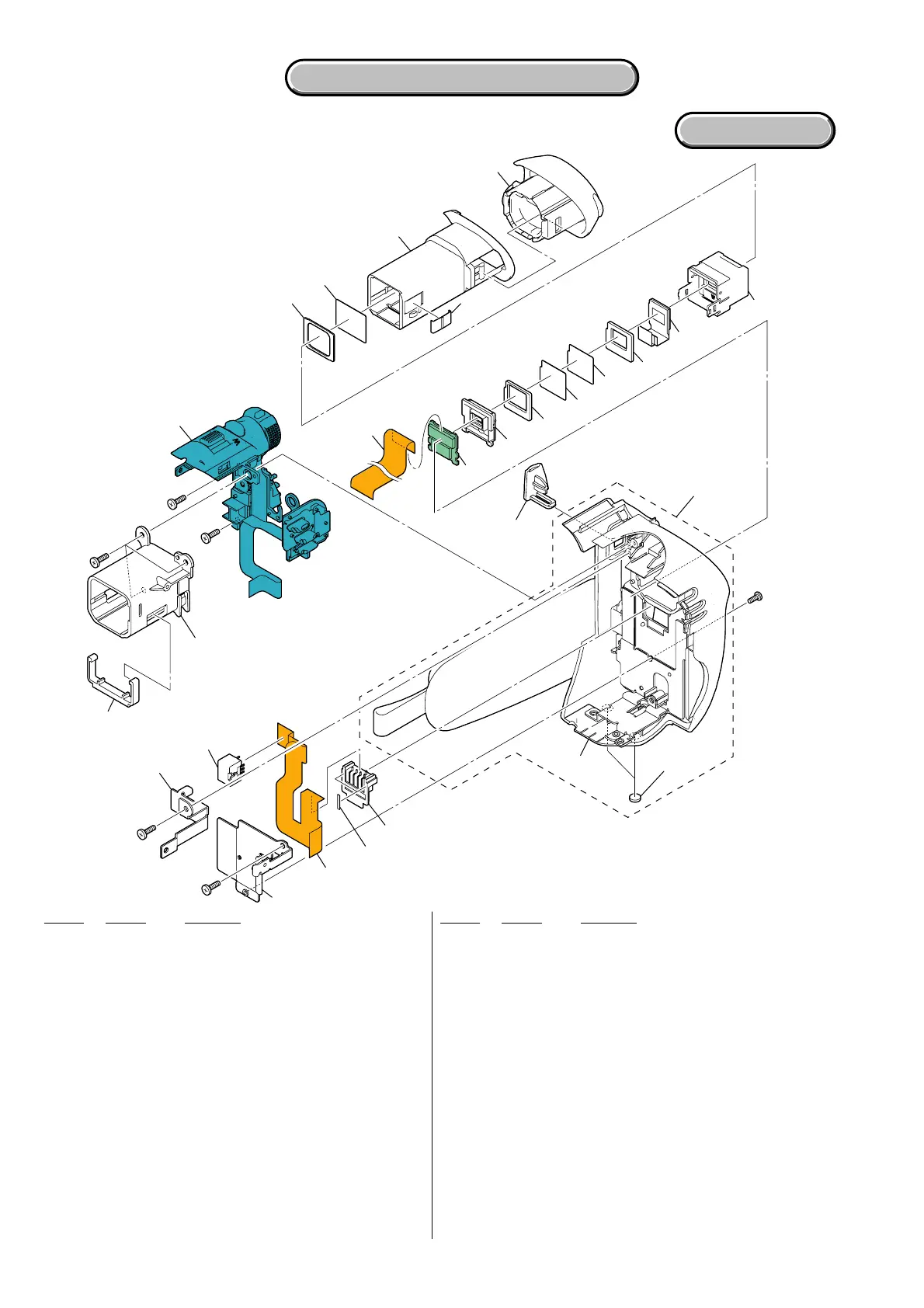

5-1-7. BT-EVF BLOCK
