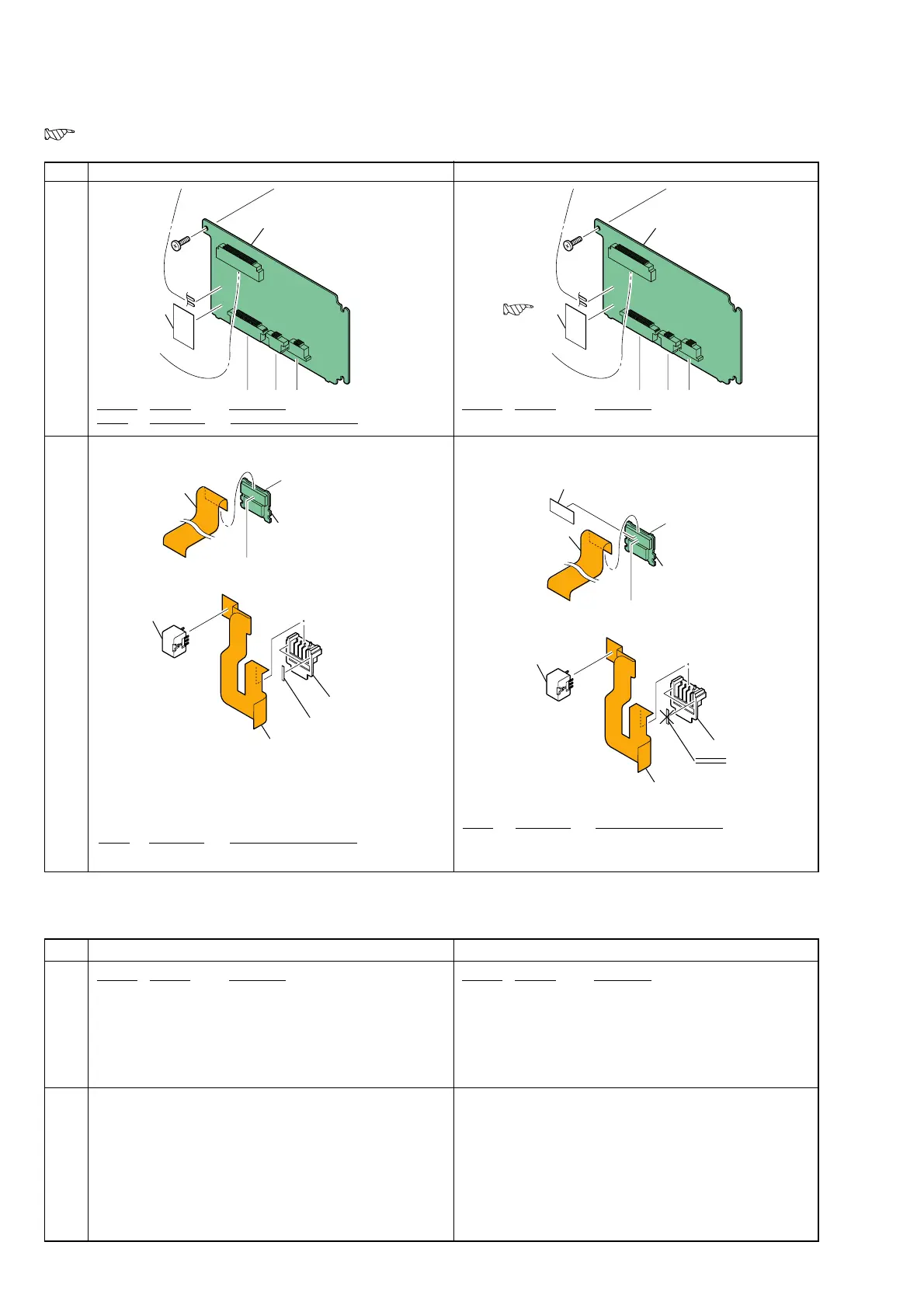

DCR-DVD306E/DVD308/DVD308E/DVD708/DVD708E_L2
* 273 3-083-393-01 TAPE (P)
* 321 2-699-244-02 PLATE (UPPER), BT PANEL
* 324 3-083-393-01 TAPE (P)
LCD902 8-753-241-14 LCX076AKE-1
* 321 2-699-244-01 PLATE (UPPER), BT PANEL
* 323 3-208-237-01 SHEET (BT)
LCD902 8-753-241-17 LCX076AKE-J
Ref. No. Part No. Description Ref. No. Part No. Description
5-8
& : Points added portion.
: Points changed portion.
! : Points deleted portion.
Page Former New
5-7
PD-315
267
#11
ns
PD-315
267
#11
273
BH001
320
323
J001
316
315
BH001
320
323
J001
316
324
315
+
$
5-2. ELECTRICAL PARTS LIST
Page Former New
Ref. No. Part No. Description Ref. No. Part No. Description
5-11
A-1228-528-A FP-569 FLEXIBLE BOARD, COMPLETE
******************************
< DIODE >
D5691 8-719-064-07 DIODE SML-310LTT86 (ACCESS)
A-1228-523-A MS-346 BOARD, COMPLETE
***********************
< FERRITE BEAD >
FB7401 1-469-580-11 INDUCTOR, FERRITE BEAD (1005)
FB7402 1-469-580-11 INDUCTOR, FERRITE BEAD (1005)
FB7403 1-469-580-11 INDUCTOR, FERRITE BEAD (1005)
FB7404 1-469-580-11 INDUCTOR, FERRITE BEAD (1005)
A-1228-528-A FP-569 FLEXIBLE BOARD, COMPLETE
******************************
< DIODE >
D5691 6-500-817-01 DIODE (LED) SML-512UWT86 (ACCESS)
A-1228-523-A MS-346 BOARD, COMPLETE
***********************
< FERRITE BEAD >
FB7401 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7402 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7403 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7404 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
5-10
