5-3
5. REPAIR PARTS LIST
DCR-HC28E_L2

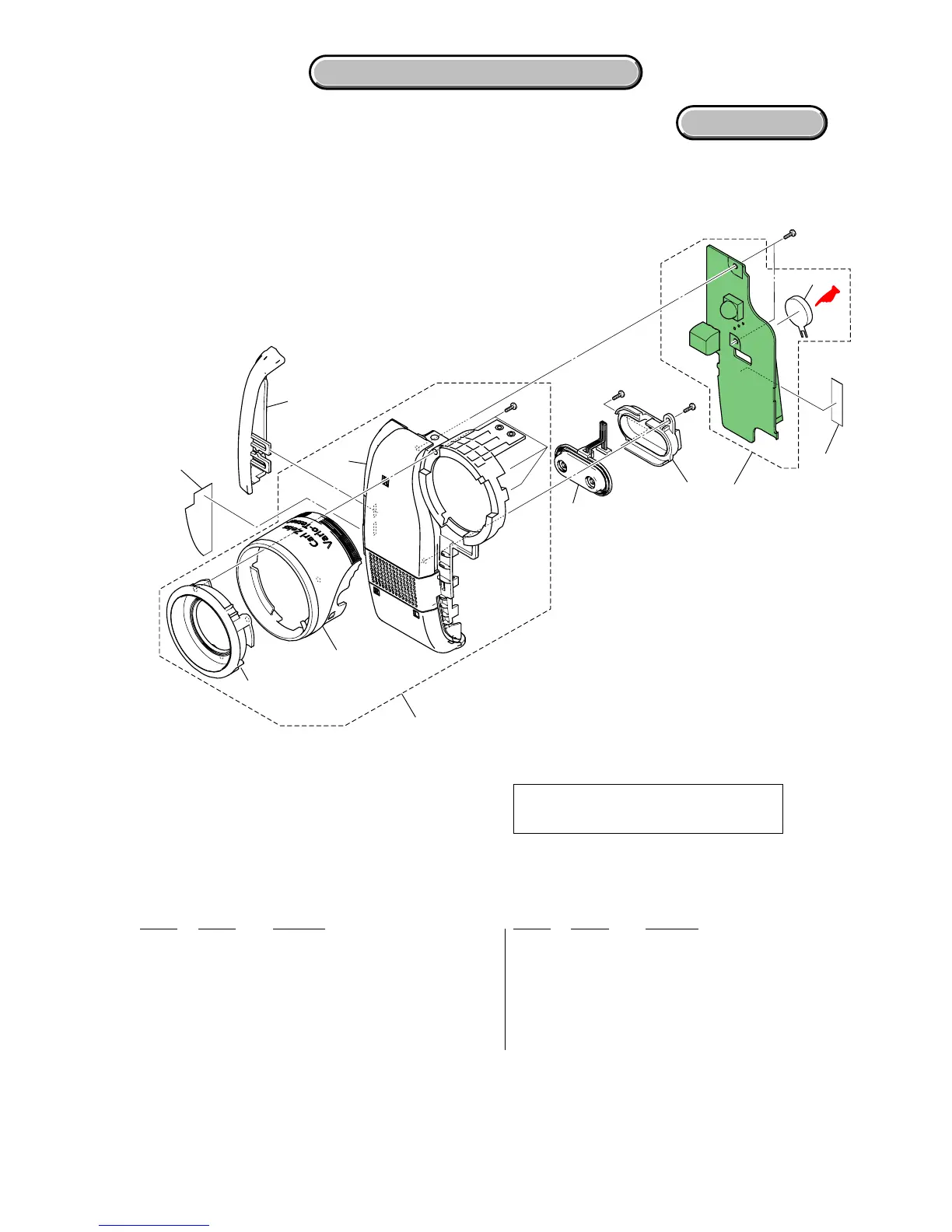

5-1-2. FRONT PANEL BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
51 X-2159-372-1 PANEL (211) ASSY, F
52 2-664-940-01 SCREW (172), FILTER
53 2-664-986-01 COVER, JACK
* 54 2-664-946-01 RETAINER, MICROPHONE
55 A-1204-538-A SI-051 (BBM) BOARD, COMPLETE
* 56 2-672-995-01 SHEET (F)
57 3-941-343-21 TAPE (A)
58 2-664-942-11 RING (173), FRONT
ns: not supplied
0* BT601 1-756-640-11 BATTERY, LITHIUM SECONDARY
MIC901 1-542-513-21 MICROPHONE
#8 3-078-890-01 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
• Refer to page 5-1 for mark 0.
HARDWARE LIST
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
SI-051
#8
#12
#12
#12
BT601
ns
57
51
52
53
58
56
54
55
! : BT601 (BATTERY, LITHIUM SECONDARY)
Board on the mount position.
(See page 4-31.)
MIC901
