5-4
5. REPAIR PARTS LIST
DCR-HC28E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
101 2-892-641-01 CABINET (C(211)), P
102 3-941-343-21 TAPE (A)
103 A-1204-539-A PD-281 (BBM) BOARD, COMPLETE
* 104 1-867-778-11 FP-380 FLEXIBLE BOARD (Note)
105 2-664-737-01 COVER (C), HINGE
106 X-2067-431-1 HINGE ASSY
107 2-664-738-01 COVER (M), HINGE
108 2-664-735-01 CUSHION (172), TP
109 A-1153-842-A FP-386 (PR), COMPLETE
110 X-2159-374-1 CABINET (M (211)) ASSY, P
111 X-2159-375-1 CABINET (R (211)) ASSY
112 2-666-791-01 LIGHT GUIDE (2.5)
113 1-479-506-11 KEY BLOCK, CONTROL (CF17000)
114 2-666-795-01 FRONT FRAME (2.5)

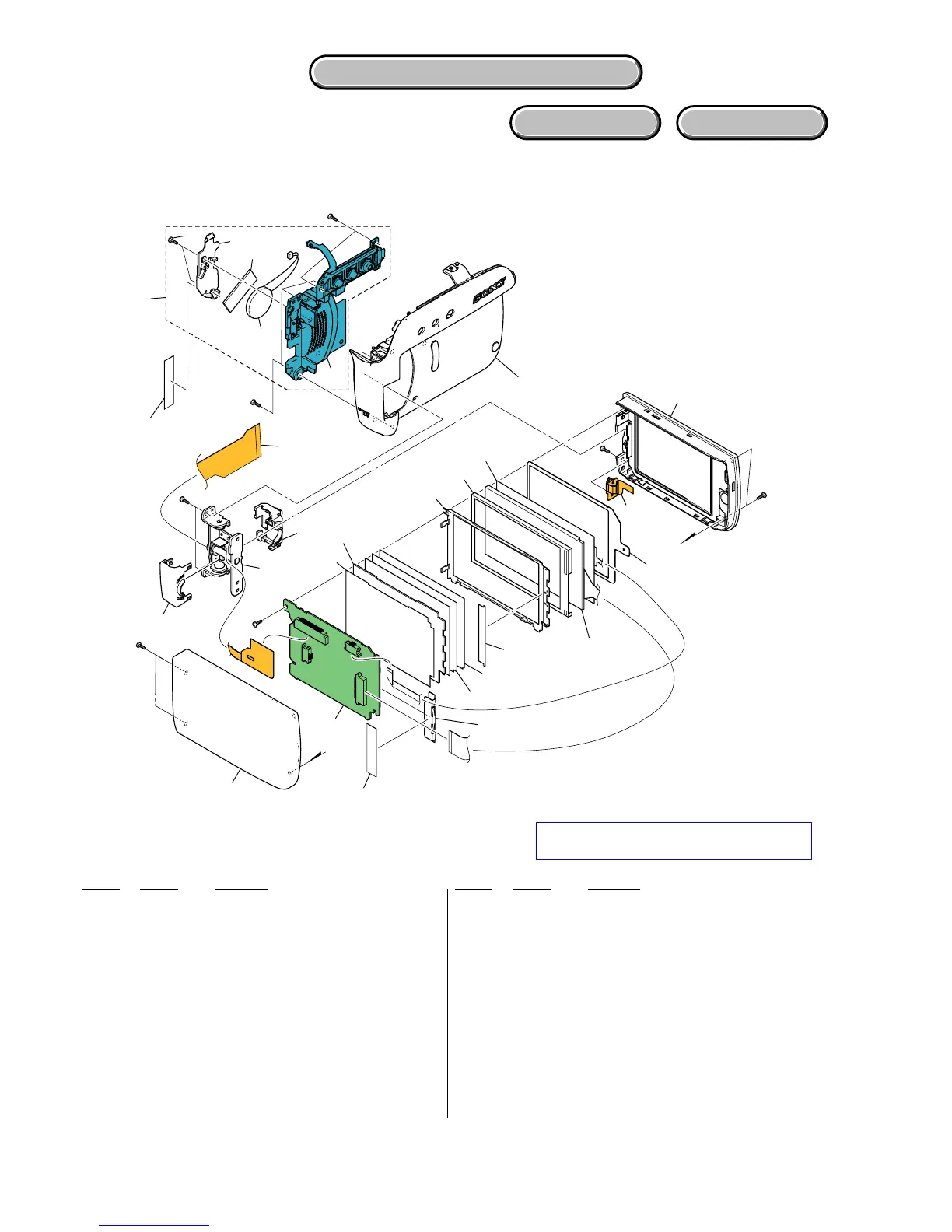

5-1-3. CABINET (R) BLOCK
115 2-888-234-01 PRISM SHEET V (2.5B)
116 2-666-793-01 PRISM SHEET H (2.5B)
117 2-694-510-01 REFLECTION SHEET (2.5)
* 118 2-638-780-01 CLIP
119 2-666-797-02 AG SHEET (2.5)
LCD901 A-1149-654-A TP BLOCK ASSY (25STMG06)
* SP901 1-825-260-31 K016NA503-12
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#13 3-085-397-01 SCREW (Silver)
Note: Be sure read “HELP” when you install the FP-
380 flexible board.
DISASSEMBLY
HARDWARE LIST
ns: not supplied
PD-281
#12
#12
#12
LCD901
#13
#2
#1
2
#3
ns
102
102
104
(Note)
101
103
105
107
108
109
110
111
113
106
114
113
112
118
115
119
116
117
ns
ns
ns
SP901
ns
