Sony DCR-SR190E - Overall Assembly Steps; Overall Assembly-1

2-2
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2

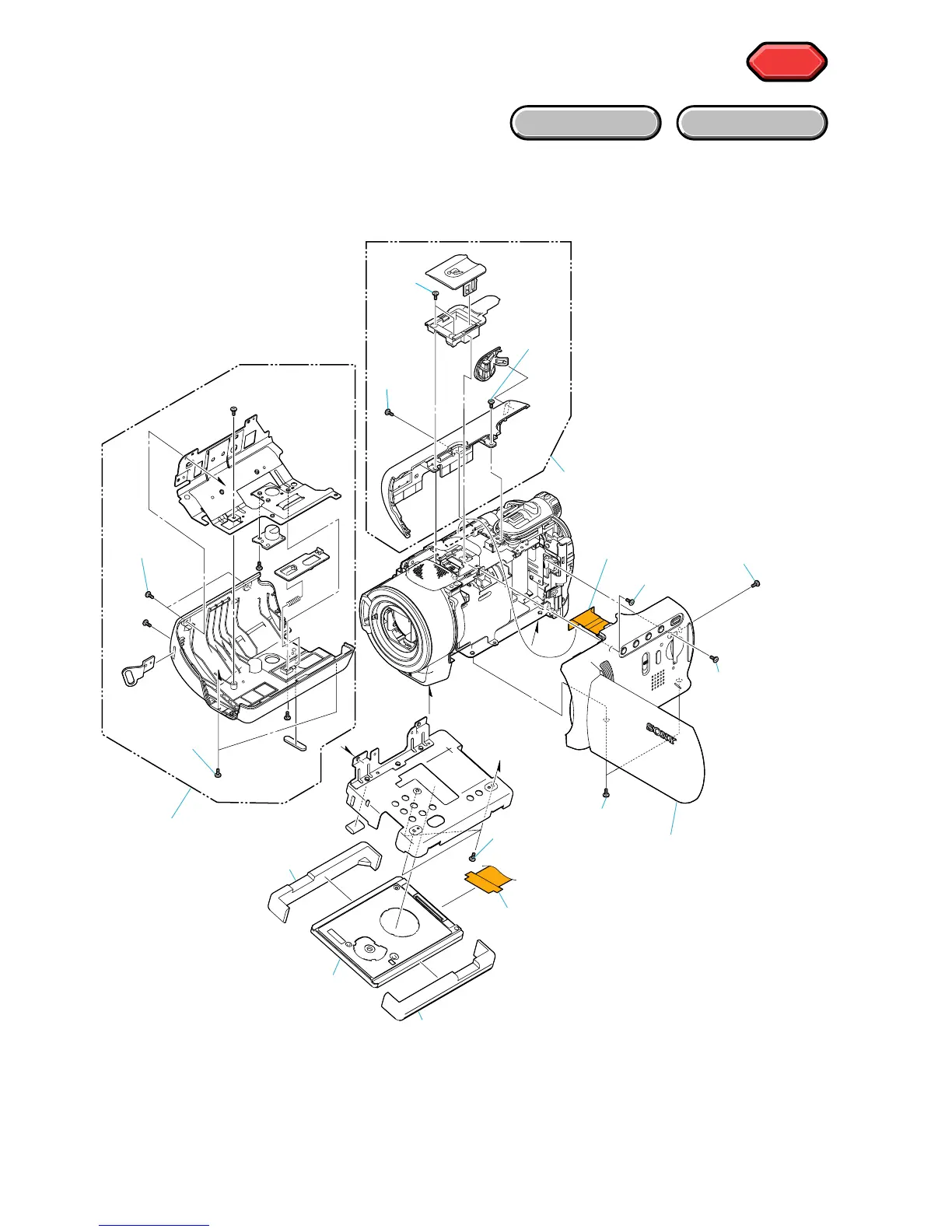

2-1. DISASSEMBLY
2-1-1. OVERALL ASSEMBLY-1
HELP
HELP
EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 Cabinet Bottom Section (1-1 to 1-2)
2 Cabinet (L) Section (2-1 to 2-3)
3 HDD (3-1 to 3-4)
4 Cabinet (R) Section (4-1 to 4-5)
C
A
A
B
B
C
3-1
3-3
3-4
1 Cabinet Bottom
Section
3 HDD
4 Cabinet (R)
Section
2 Cabinet (L) Section
1-1 (#2)
2-1
(#10)
2-3
(#10)
4-1 (#10)
4-5
4-2 (#10)
4-3 (#2)
3-2 (#14)
4-4 (#2)
2-2 (#10)
1-2 (#2)
