HARDWARE LIST
Follow the disassembly in the numerical order given.
1 DA-042 board (1-1 to 1-6)
2 VC-492 (2-1 to 2-9)
3 Lens Block-1 (3-1 to 3-3)
Note
Grip the point of the figure below when you remove the
B to B connector of DA-042 board.
DA-042 board curves when the points other than the
figure below are gripped, and IC on board is damaged.
B to B connector
Grip the point.
D
D
A
C
C
D
A
B
B
FP-613
DA-042
VC-492
DA-042
VC-492

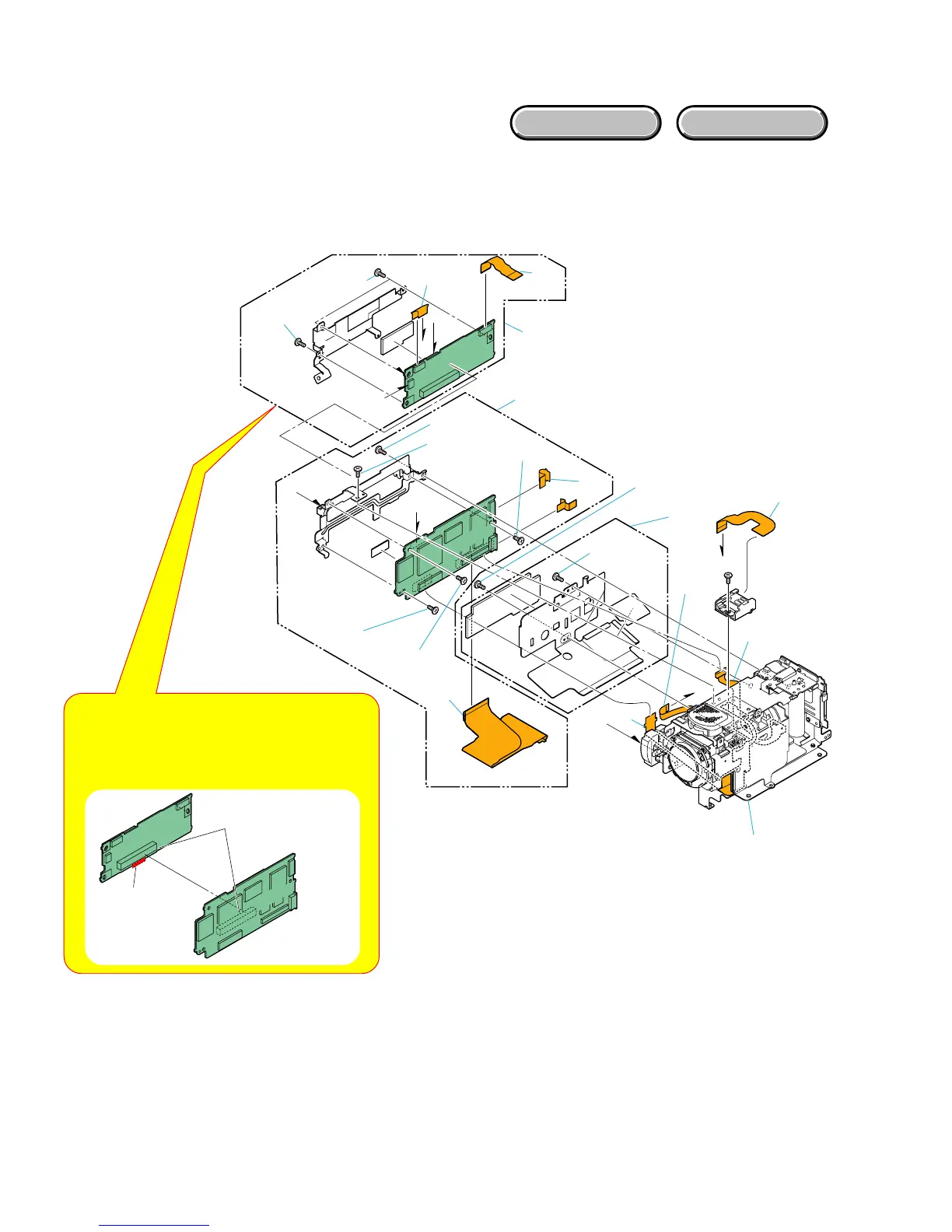

1DA-042 Board
1-1 (#14)
1-2 (#14)
1-4
1-5
1-3
1-6
2 VC-492 Board
2-1 (#14)
2-6 (#3)
3-2 (#14)
3-1 (#14)
2-7 (#3)
2-8 (#3)
2-9
2-3
2-5
2-4
2-2 (#14)
3-3
3 Lens Block-1
