Sony DCR-SR190E - Exploded Views - Overall Assemblies; Overall Assembly-1

5-2
5. REPAIR PARTS LIST
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2
C
A
A
B
B
C
6 (Note)
7
8
9
10
11
12
14
13
13
5
2
1
4
3
#2
#2
#10
ns
ns
#
2
#10
#10
#2
#14
#10
#10
#11
#25
#25
#25
Cabinet (R) Block
(See Page 5-7)
to VC-492 Board
CN1012
Overall Assembly-2
(See Page 5-3)
C
A
B
B
C
()

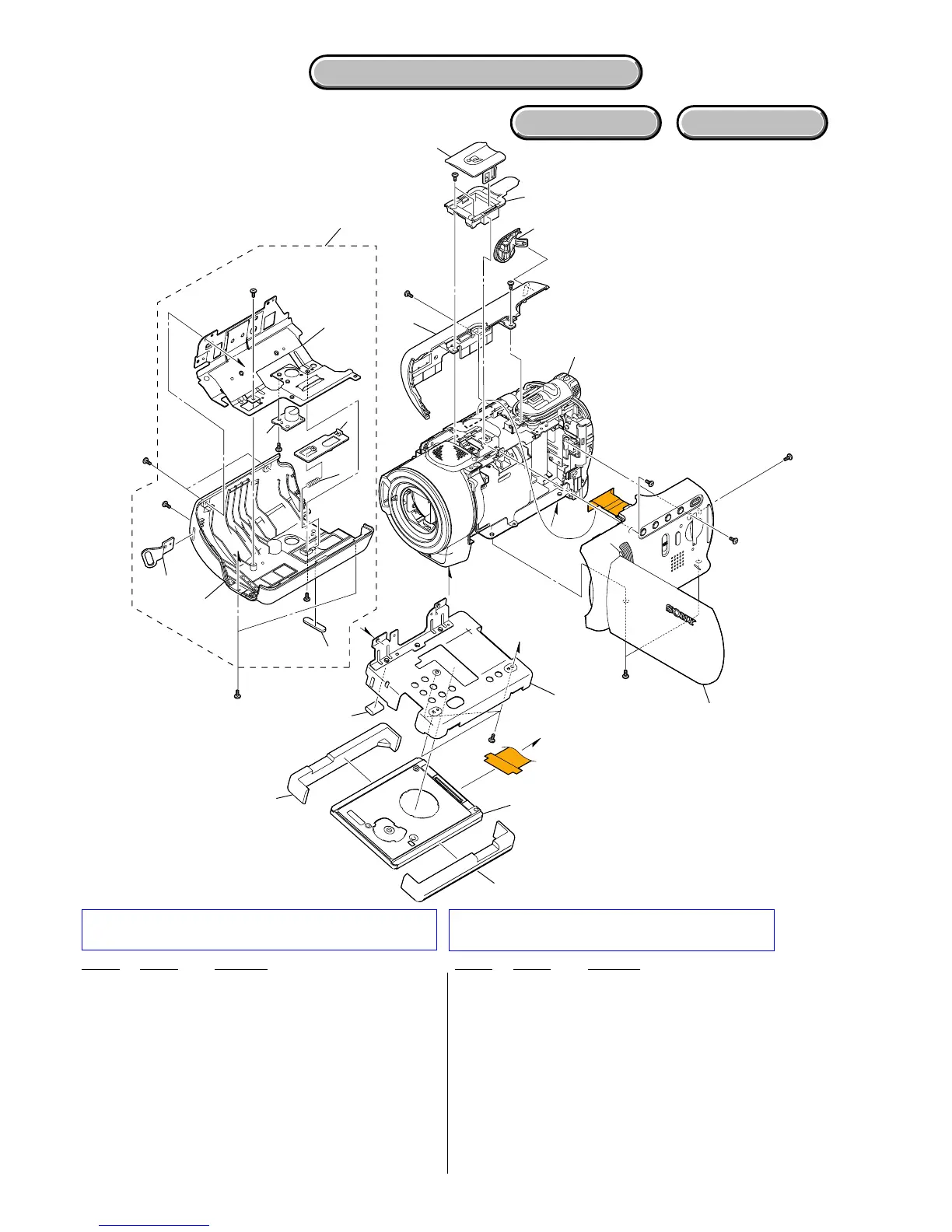

5-1-1. OVERALL ASSEMBLY-1
Ref. No. Part No. Description Ref. No. Part No. Description
* 1 3-098-251-01 FOOT, RUBBER
* 2 3-098-250-01 SHEET METAL (FRONT), BELT
* 3 3-098-252-01 SPRING, BT LOCK
* 4 3-098-248-01 KNOB, BT RELEASE
5 2-664-982-01 SCREW, TRIPOD
6 (Note) BOTTOM, CABINET
7 3-098-321-01 COVER (2370), SHOE
8 3-098-616-01 CABINET (2370), SHOE
9 3-098-158-01 COVER, JACK
10 X-2177-094-1 CABINET (L (2370)) ASSY
(SR290E/SR300/SR300C/SR300E)
5-1. EXPLODED VIEWS
DISASSEMBLY
HARDWARE LIST
10 X-2177-095-1 CABINET (L (2360)) ASSY
(SR190E/SR200/SR200C/SR200E)
11 X-2177-028-1 CASE ASSY, HD
* 12 3-098-173-01 GASKET (A)
13 3-098-175-01 DAMPER (07), DM
14 1-797-808-11 HDD (MK4009GAL-40GB)
(EXCEPT SR200C/SR300C)
14 1-797-867-11 HDD (MK1011GAH-100GB) (SR200C/SR300C)
#2 2-635-562-31 SCREW (M1.7) (Black)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#25 2-635-562-21 SCREW (M1.7) (Black)
Note : キャビネットボトムの交換時は1 - 7 ページの“キャビ
ネットボトム交換時の注意”を参照してください。
Note : Refer to page 1-7 “Precaution on replacing the cabi-
net bottom” when changing the bottom.
ns: not supplied
Ver. 1.2 2007.06
