Sony DCR-SR190E - Overall Assembly-2

5-3
5. REPAIR PARTS LIST
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2

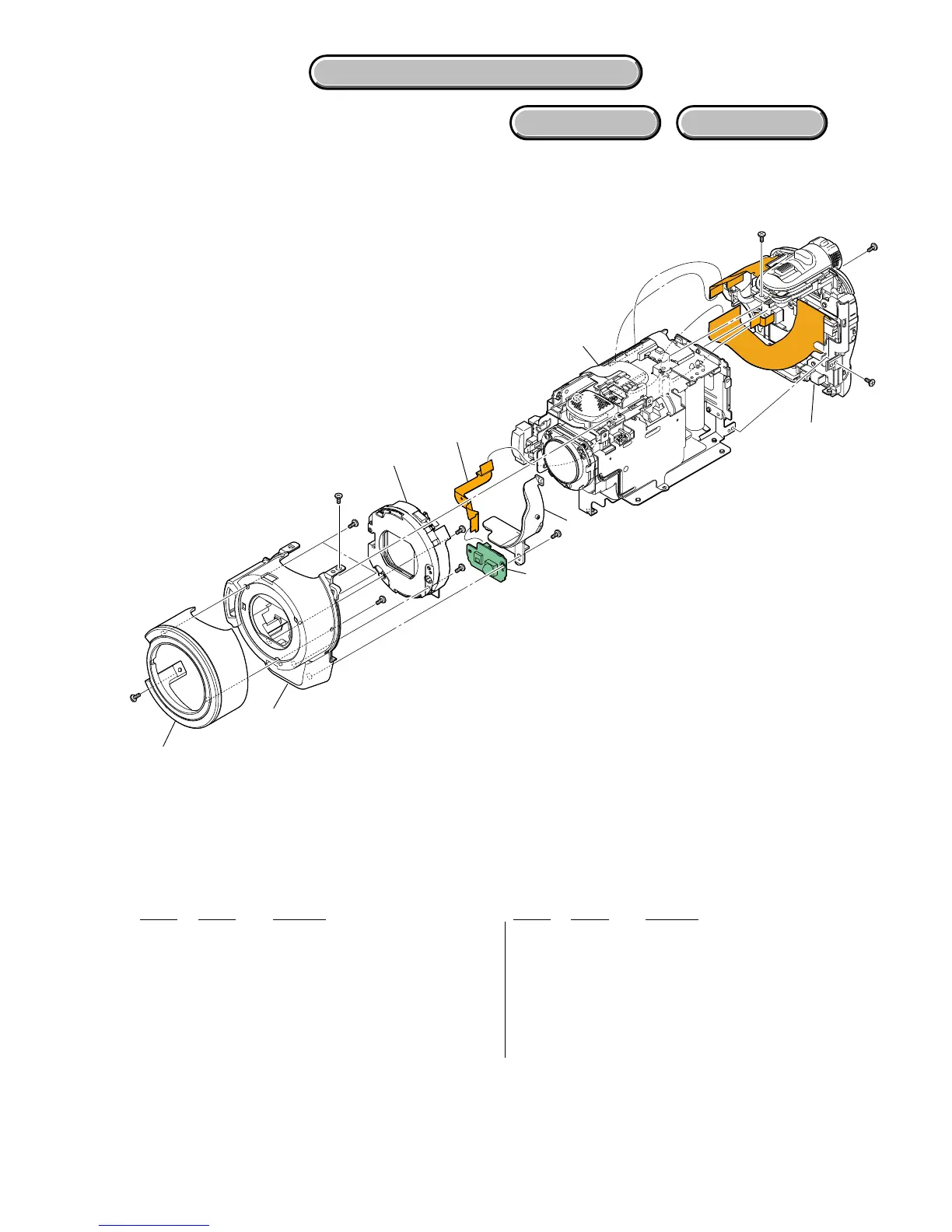

5-1-2. OVERALL ASSEMBLY-2
Ref. No. Part No. Description Ref. No. Part No. Description
51 3-098-630-01 RING (2370), FRONT (SR300: J)
51 3-098-630-11 RING (2370), FRONT
(SR290E/SR300: EXCEPT J/SR300C/SR300E)
51 3-098-630-21 RING (2370), FRONT
(SR190E/SR200/SR200C/SR200E)
52 X-2177-098-1 PANEL (2370) ASSY, F
(SR290E/SR300/SR300C/SR300E)
52 X-2177-099-1 PANEL (2360) ASSY, F
(SR190E/SR200/SR200C/SR200E)
DISASSEMBLY
HARDWARE LIST
53 A-1217-971-A LENS BARRIER UNIT
54 A-1244-513-A FR-264 BOARD, COMPLETE
55 1-871-466-11 FP-619 FLEXIBLE BOARD
* 56 3-098-629-01 RETAINER, BARRIER FLEXIBLE
#2 2-635-562-31 SCREW (M1.7) (Black)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
51
52
54
56
53
55
#10
#2
#2
#2
#10
#14
#14
#11
#11
#11
Overall Assembly-3
(See Page 5-4)
Switch Block
(See Page 5-9)
