Sony DCR-SR190E - Overall Assembly-3

5-4
5. REPAIR PARTS LIST
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
* 101 3-098-627-01 SHEET (2370), DA RADIATION
102 A-1244-916-A DA-042 BOARD, COMPLETE
* 103 3-098-610-01 BRACKET (2370), VC
104 A-1244-943-A VC-492 BOARD, COMPLETE (SERVICE)
(SR300/SR300C)
104 A-1244-944-A VC-492 BOARD, COMPLETE (SERVICE) (SR300E)
104 A-1244-945-A VC-492 BOARD, COMPLETE (SERVICE) (SR290E)
104 A-1244-946-A VC-492 BOARD, COMPLETE (SERVICE)
(SR200/SR200C)
104 A-1244-947-A VC-492 BOARD, COMPLETE (SERVICE) (SR200E)
104 A-1244-948-A VC-492 BOARD, COMPLETE (SERVICE) (SR190E)
* 105 3-098-626-01 SHEET (2370), VC RADIATION

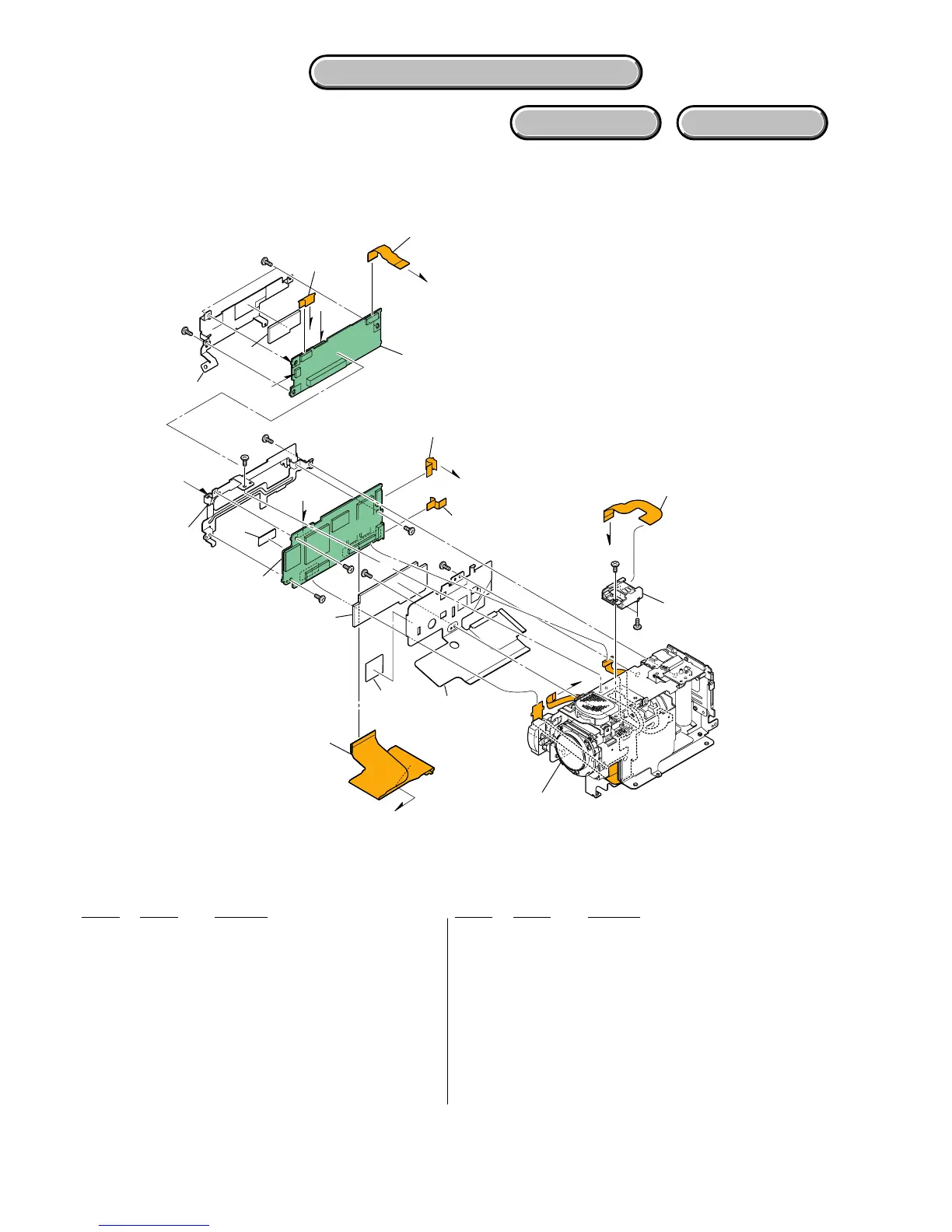

5-1-3. OVERALL ASSEMBLY-3
106 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
107 1-871-454-11 FP-607 FLEXIBLE BOARD
108 1-871-463-11 FP-616 FLEXIBLE BOARD
109 1-871-455-11 FFC-608 FLEXIBLE FLAT CABLE
110 1-871-465-11 FP-618 FLEXIBLE BOARD
111 1-871-460-11 FP-613 FLEXIBLE BOARD
112 1-871-462-11 FP-615 FLEXIBLE BOARD
* 113 3-100-660-01 SHEET (2370), FRAME RADITATION
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#14 2-599-475-11 SCREW (M1.7) (Silver)
DISASSEMBLY
HARDWARE LIST
ns: not supplied
Lens Block
(SR290E/SR300/SR300C/SR300E)
(See Page 5-6)
D
A
C
C
D
A
B
B
FP-613
DA-042
VC-492
110
109
108
113
112
101
102
103
104
105
111
106
107
ns
ns
ns
#14
#14
#14
#14
#14
#14
#14
#14
#3
#3
#3
FP-613
DA-042
VC-492
Lens Block
(SR190E/SR200/SR200C/SR200E)
(See Page 5-5)
to ST-159 Board
CN5202
to MS-350 Board
CN7403
()
()
to HARD DISK
DRIVE
()
