Sony DCR-SR190E - Exploded Views - Specific Blocks; Lens Block (SR190 E;SR200;SR200 C;SR200 E)

5-5
5. REPAIR PARTS LIST
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2
A
B
B
A
151
155
156
159
158
152
157
160
153
(Note 3)
164
(Note 1, 2)
154
163
162
161
#11
#11
ns
ns
MIC901
ns
ns
#3
ns
#3
#3
#14
#14
#14
#14
#14
#11
#11
#10
#11
MS-350
C5206
to DR-042 Board
CN4013
()
to VC-492 Board
CN1201
(
)
Note 1: IC6901 is not supplied, but this
is included in CMOS block assy.

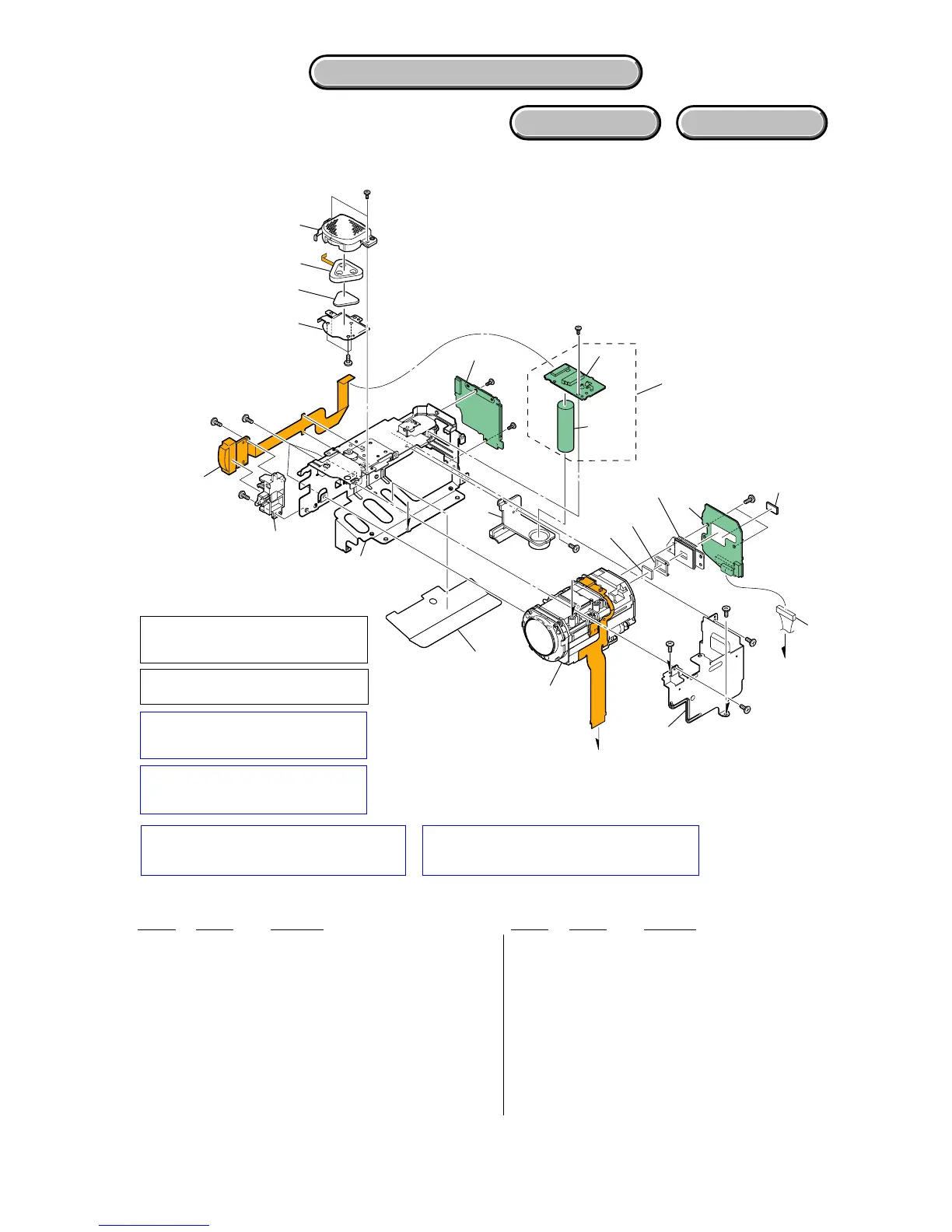

5-1-4. LENS BLOCK (SR190E/SR200/SR200C/SR200E)
Ref. No. Part No. Description Ref. No. Part No. Description
0151 1-479-888-21 FLASH UNIT
152 X-2176-859-1 HOLDER ASSY, ST
153 1-965-258-21 HARNESS (COAXIAL CABLE) (Note 3)
* 154 3-098-625-01 SHEET (2370), CM RADIATION
155 X-2177-092-1 GRILLE (2370) ASSY, MICROPHONE
156 A-1244-913-A MS-350 BOARD, COMPLETE
* 157 3-098-631-01 SHEET, LENS FLEXIBLE PROTECTION
* 158 3-098-609-01 HOLDER, CAPACITOR
159 A-1244-921-A ST-159 BOARD, COMPLETE
160 8-848-825-01 DEVICE, LENS LSV-942C
HARDWARE LIST
161 1-788-382-11 OPTICAL FILTERBLOCK (OFB-03-26)
162 2-629-086-01 RUBBER (871), SEAL
163 A-1231-932-A CM-076 BOARD, COMPLETE
164 A-1172-742-A CMOS BLOCK ASSY (CMOS IMAGER) (Note 1,2)
0 C5206 1-112-766-11 ELECT 70uF 99% 330V
MIC901 1-542-711-31 MICROPHONE UNIT
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
ns: not supplied
• Refer to page 5-1 for mark 0.
Note 1: IC6901は交換対象ではありま
せんが，C M O S 部組に含まれ
ます。
Note 2: イメージャの交換時は4-4ペー
ジの“イメージャ交換時の注意”
を必ずお読みください。
Note 2: Be sure to read “Precuations for
Replacement of Imager” on page
4-3 when changing the imager.
Note 3: HARNESS(COAXIALCABLE)の交換
時は2-1ページ“Notefordisconnecting
theharness” を参照して下さい。
Note 3: Refer to page 2-1 “Note for disconnect-
ing the harness” when changing the har-
ness.
DISASSEMBLY
Ver. 1.2 2007.06
