Sony DCR-SR190E - Lens Block (SR290 E;SR300;SR300 C;SR300 E)

5-6
5. REPAIR PARTS LIST
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
0 171 1-479-888-21 FLASH UNIT
172 X-2176-859-1 HOLDER ASSY, ST
173 1-965-256-11 HARNESS (COAXIAL CABLE) (Note 3)
* 174 3-098-625-01 SHEET (2370), CM RADIATION
175 X-2177-092-1 GRILLE (2370) ASSY, MICROPHONE
176 A-1244-913-A MS-350 BOARD, COMPLETE
* 177 3-098-631-01 SHEET, LENS FLEXIBLE PROTECTION
* 178 3-098-609-01 HOLDER, CAPACITOR
179 A-1244-921-A ST-159 BOARD, COMPLETE
180 A-1227-735-A LSV-1190A (SERVICE)
181 1-788-558-11 FILTER BLOCK, OPTICAL
182 2-698-010-01 RUBBER (1190), SEAL
183 A-1237-309-A CM-077 BOARD, COMPLETE (SERVICE)
184 A-1209-688-A CMOS BLOCK ASSY (CMOS IMAGER) (Note 1,2)
0 C5206 1-112-766-11 ELECT 70uF 99% 330V
MIC901 1-542-711-31 MICROPHONE UNIT
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
• Refer to page 5-1 for mark 0.
DISASSEMBLY
HARDWARE LIST
A
A
171
175
176
179
178
172
177
180
173
(Note 3)
184
(Note 1, 2)
174
183
182
181
#11
#11
ns
ns
MIC901
ns
ns
#3
ns
ns
#3
#3
#14
#14
#14
#14
#14
#11
#10
#11
MS-350
C5206
to DR-042 Board
CN4013
()
to VC-492 Board
CN1201
(
)
Note 1: IC6701 is not supplied, but this
is included in CMOS block assy.
Note 1: IC6701は交換対象ではありま
せんが，C M O S 部組に含まれ
ます。
Note 2: イメージャの交換時は4-4ペー
ジの“イメージャ交換時の注意”
を必ずお読みください。
Note 2: Be sure to read “Precuations for
Replacement of Imager” on page
4-3 when changing the imager.
Note 3: HARNESS(COAXIALCABLE)の交換
時は2-1ページ“Notefordisconnecting
theharness” を参照して下さい。
Note 3: Refer to page 2-1 “Note for disconnect-
ing the harness” when changing the har-
ness.

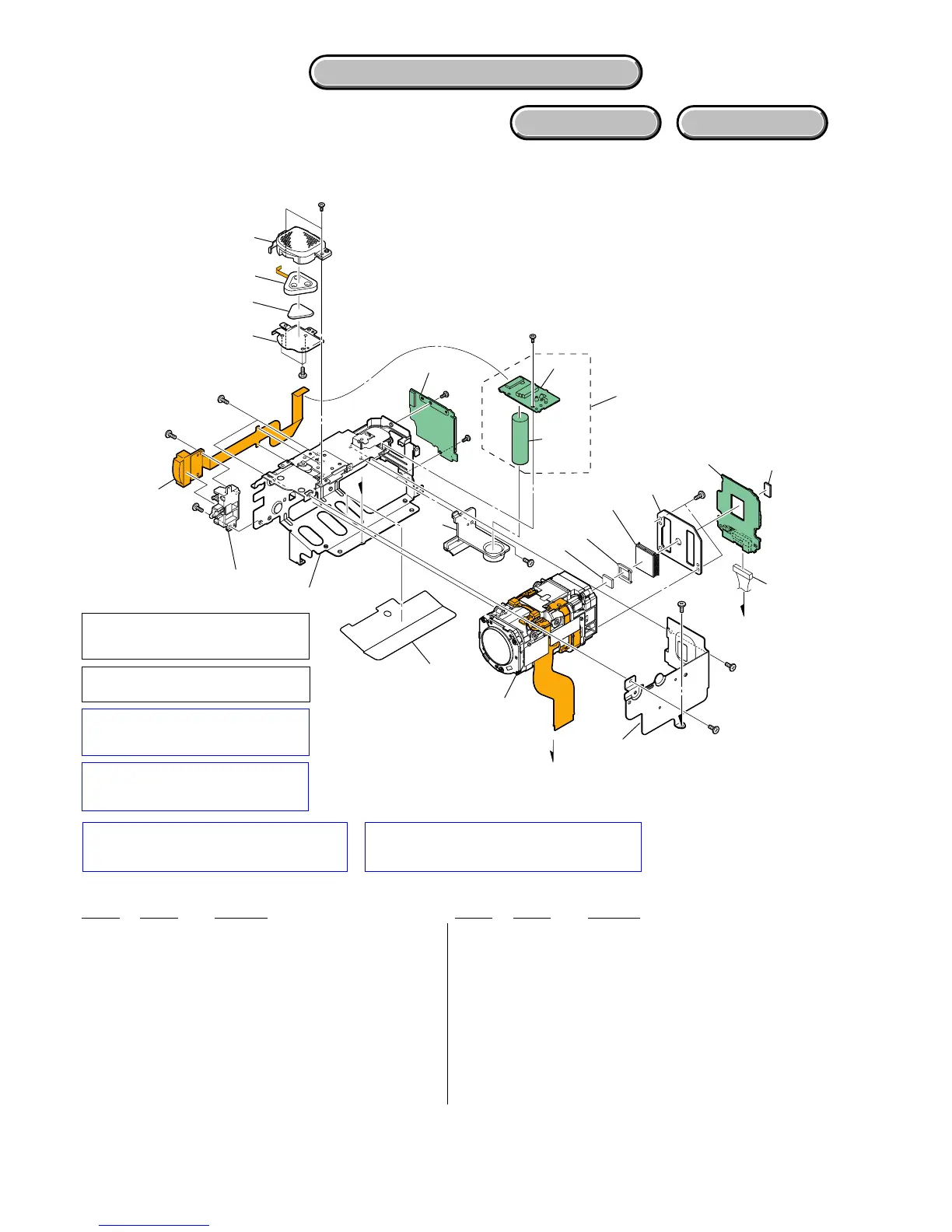

5-1-5. LENS BLOCK (SR290E/SR300/SR300C/SR300E)
ns: not supplied
Ver. 1.2 2007.06
