Sony DCR-SR190E - Lens Block Disassembly (SR290 E Series)

2-6
DCR-SR190E/SR200/SR200C/SR200E/SR290E/SR300/SR300C/SR300E_L2

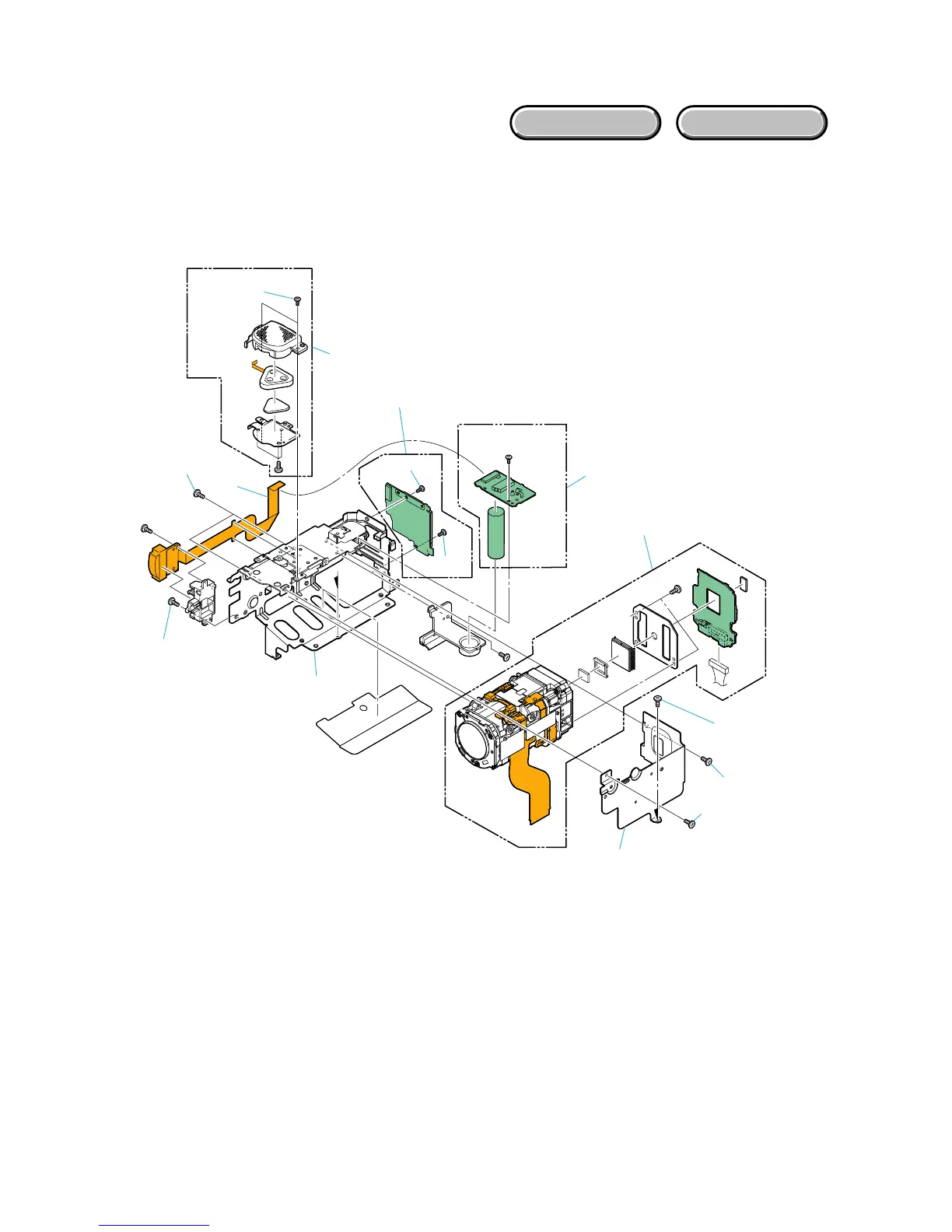

EXPLODED VIEW
HARDWARE LIST
2-1-5. LENS BLOCK
(SR290E/SR300/SR300C/SR300E)
Follow the disassembly in the numerical order given.
1 Lens Block-2 (1-1 to 1-8)
2 MS-350 Board (2-1 to 2-2)
3 ST-159 Board (3-1)
4 MIC Block (4-1)
A
A
MS-350
4-1 (#10)
4 MIC Block
2 MS-350 Board
3 ST-159 Board
1 Lens Block-2
2-1 (#3)
1-4 (#14)
1-6
1-5 (#11)
2-2 (#3)
3-1 (#3)
1-8
1-1 (#14)
1-2 (#14)
1-3 (#14)
1-7
