DCR-SR21/SR21E/SX21/SX21E_L2
2-7
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7

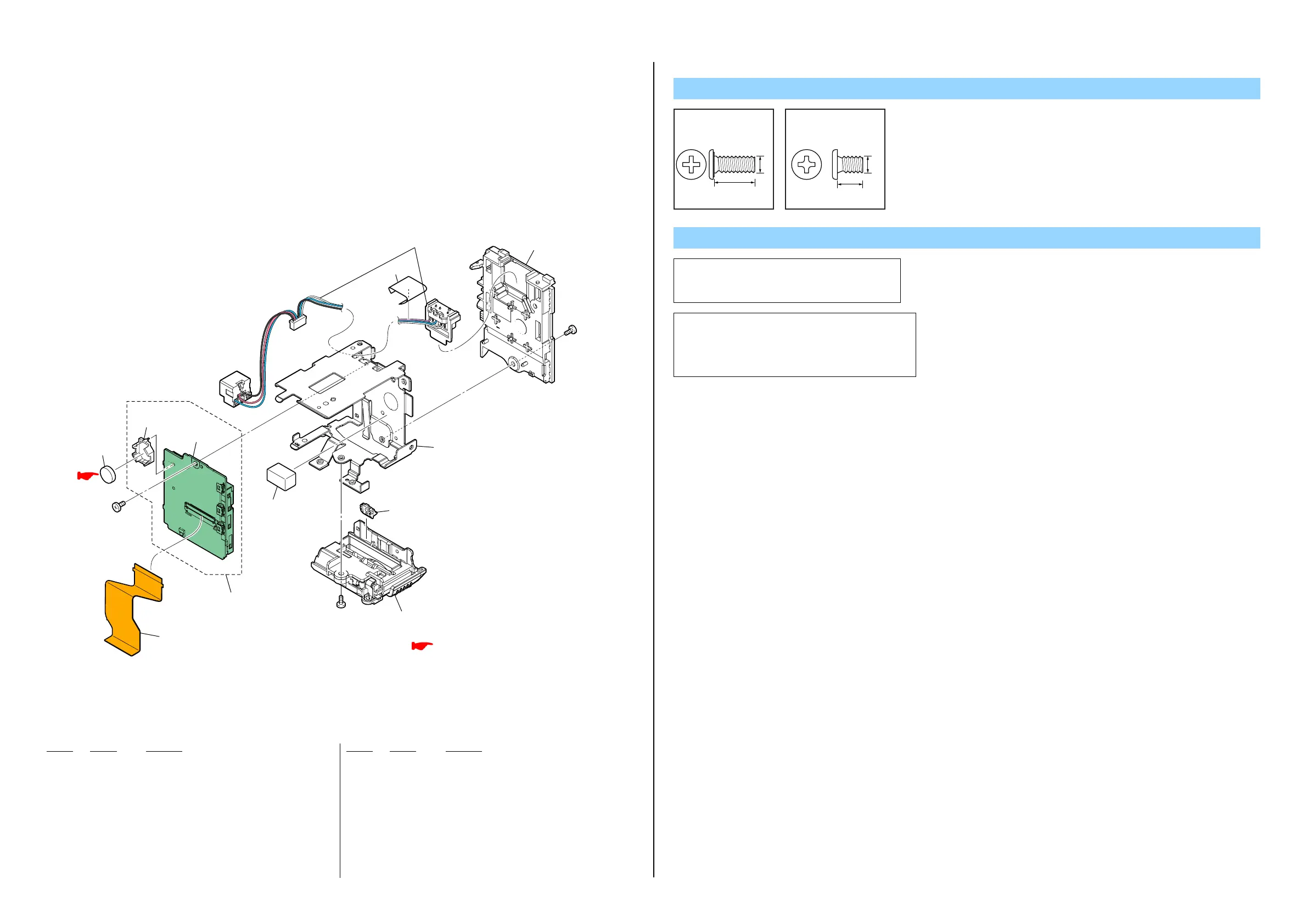

2-1-5. BATTERY PANEL SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
201
202
205
204
#3
ns
#2
BH7301
(Note)
BT7301
(Note)
#2
207
(including BH901 and J901)
206
208
MS-451
: BT7301 (LITHIUM STORAGE BATTERY)
Board on the mount position.
(See page 6-24 of Level3)
203
209
Screw
Note
Caution:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
ns : not supplied
Note: Replace the battery holder (BH7301) together when
replacing the lithium storage battery (BT7301) on the
MS-451 board.(The battery holder removed once
cannot be used again.)
When mounting these parts, mount new battery holder
first and attach new lithium storage battery next.
201 1-882-552-11 FP-1290 FLEXIBLE BOARD
202 A-1790-894-A MS-451 BOARD, COMPLETE
* 203 4-261-422-01 GASKET, MS
204 A-1790-731-A MS ASSY
* 205 4-171-818-01 BT RETAINER CLAW
206 4-209-729-01 SHEET METAL (244), BT (SX21/SX21E)
206 4-209-730-01 SHEET METAL (248), BT (SR21/SR21E)
207 1-822-470-61 JACK, DC (including BH901 and J901) (SX21/SX21E)
207 1-822-470-71 JACK, DC (including BH901 and J901) (SR21/SR21E)
208 4-209-728-01 PANEL, BT
209 4-177-124-01 DC, SHIELD SHEET
BH7301 1-251-928-21 SOCKET, BATTERY (Note)
BT7301 1-756-135-31 BATTERY LITHIUM SECONDARY (Note)
#2 2-635-562-31 SCREW (M1.7)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
To Next Page
