Sony DCR-SR21 - Lens Section

DCR-SR21/SR21E/SX21/SX21E_L2
2-6
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0

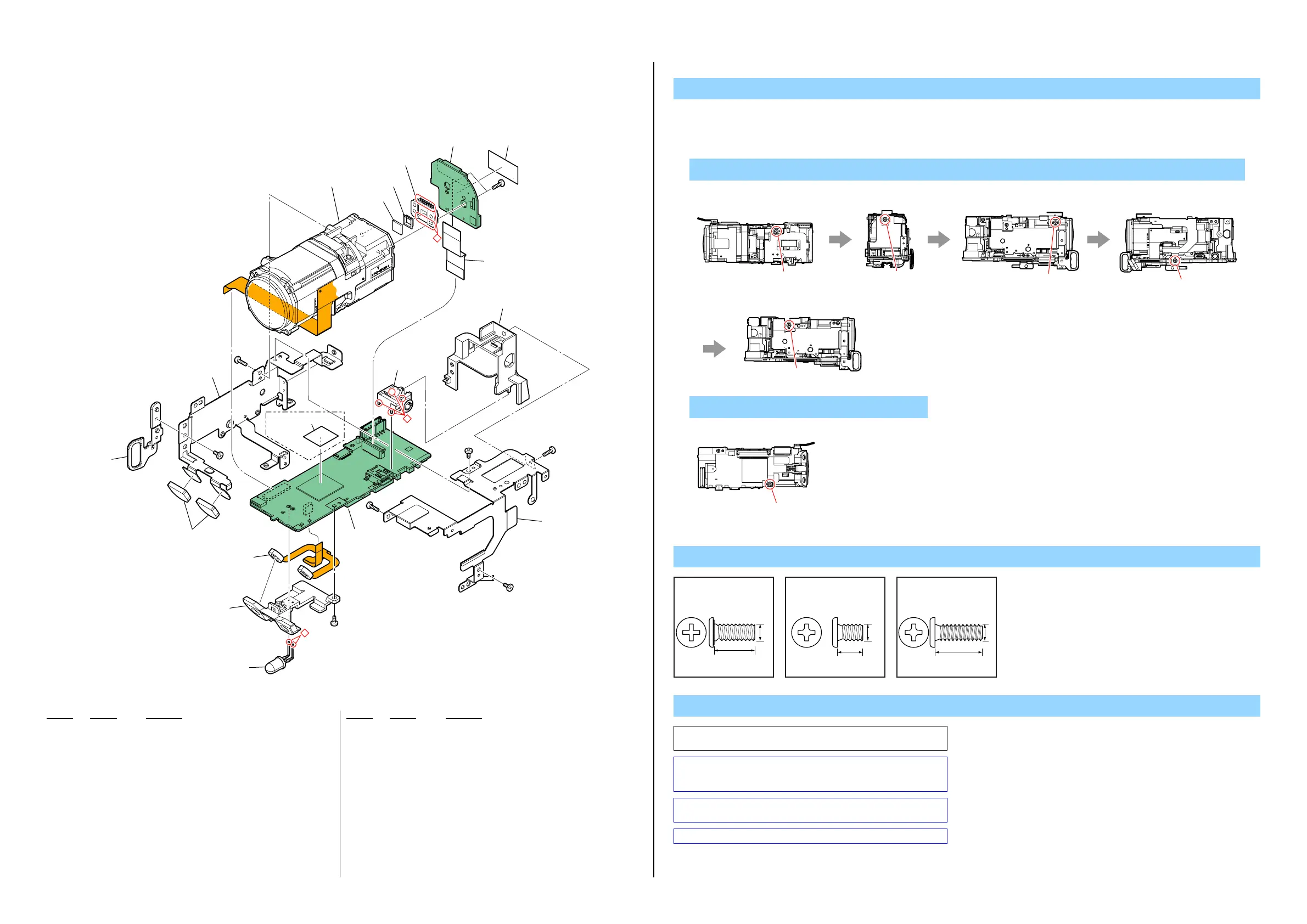

2-1-4. LENS SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
1. Remove to numerical order (1to 2) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
◇-X: Solder
DISASSEMBLY
SX21/
SX21E
1 156
VC-611
#12
#12
#12
IC7101
(Note 1)
#2
#3
#3
#2
D1003
(Note 3)
MIC901
(Note
4)
J1001
#3
2 155
151
152
153
154
157
(Note 2)
158
159
160
161
162
1
164
163
1 #3 X 1 → #2 X 1 → #12 X 1 → #3 X 1 → Lens Frame (R) (A) → #12 X 1
Screw
Note
Note 1: Be sure to read "Precautions for Replacement of Imager"
on page 6-1 of Level 3 when changing the imager.
2 #2 X 1
#3
#3
#2
#12
Top View Back View Left View Right View
#12
Left View
#2
Bottom View
Note 2: Be sure to read "Assembly-3: How to Distinguish The
Side of Optical Filter Block Facing to Lens Device"
when changing the optical filter block.
Note 3: Refer to "Assembly-4: Precaution Mounting method of
Diode D1003 (LED video light)".
Note 4: Refer to "Assembly-5: Installation Cautions of Mic Unit.".
151 4-209-699-01 HOLDER, MICROPHONE
152
4-209-701-01
CUSHION, MICROPHONE
* 153 4-209-705-01 SHEET METAL (FRONT 244), BELT
* 154 4-209-696-01 FRAME, LENS
155 A-1798-497-A VC-611 (F) BOARD, COMPLETE (SERVICE)
(SX21/SX21E)
155 A-1798-498-A VC-611 (H) BOARD, COMPLETE (SERVICE)
(SR21/SR21E)
156 1-788-861-11 OPTICAL UNIT (CK001)
157 1-788-870-11 OPTICAL FILTER BLOCK (Note 2)
158 3-878-748-01 RUBBER (1340), SEAL
159 A-1790-893-A CD-801 BOARD, COMPLETE
160 1-834-809-11 CABLE, FLEXIBLE FLAT (FFC-338)
* 161 4-209-698-01 GUARD, FLEXIBLE
* 162 4-209-697-01 FRAME (R), LENS
163 4-296-783-01 SHEET (CD246), WAVE ABSORPTION
164 4-296-782-01 SHEET (VC246), WAVE ABSORPTION (SX21/SX21E)
* D1003 6-502-954-01 DIODE NSPL500DS (Note 3)
IC7101 8-753-331-35 ICX691NKF-H (Note 1)
J1001 1-778-040-11 JACK, SMALL TYPE
MIC901 1-542-848-11 MICROPHONE UNIT (Note 4)
#2 2-635-562-31 SCREW (M1.7)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#12 3-080-204-21 SCREW, TAPPING, P2
