Sony DCR-SR21 - Cabinet (R) Section

DCR-SR21/SR21E/SX21/SX21E_L2
2-8
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0

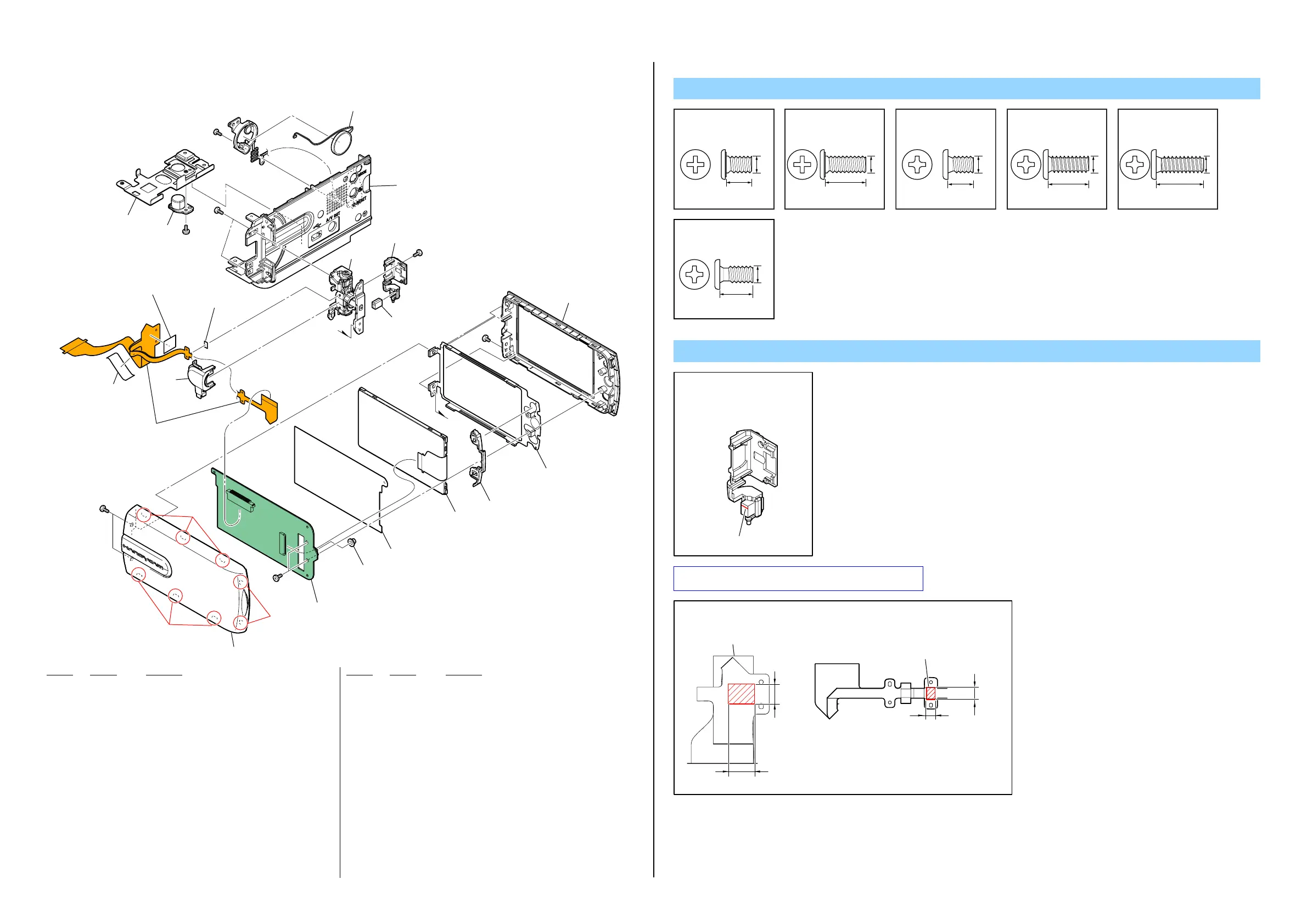

2-1-6. CABINET (R) SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
PD-426
A
A
(Claws)
(Claws)
(Claws)
251
#3
#11
LCD901
#1
#1
#2
#68
#12
SP901
252
253
264
263
265
262
259
254
255
256
257
266
261
(Note 1)
258
(Note 2)
260
267
(Size: 3.5mm X 5.0mm)
(Note 3)
267
(Size: 8.0mm X 7.0mm)
(Note 3)
Screw
Note
Note 2: Refer to "Assembly-6: The Method of attachment of
FP-1479 Flexible Board.".
Note 1:
Put the marking side
together on the position
of figure when
you install the magnet.
Marking
#68: M1.7 X 4.0
(Silver)
2-655-581-01
4.0
1.7
#1: M1.7 X 2.5
(Black)
2-635-562-11
2.5
1.7
Cut SHEET, ADHESIVE (2-649-300-01)
into the desired length and use it.
7.0mm
8.0mm
Note 3:
5.0mm
3.5mm
Adhesive Sheet
FP-1497 Flexible Board
251 4-287-643-01 CABINET (C 246), P (SX21 (BLACK)/SX21E (BLACK))
251 4-287-643-11 CABINET (C 246), P (SX21 (SILVER)/SX21E (SILVER))
251 4-287-643-21 CABINET (C 246), P (SR21 (BLACK)/SR21E (BLACK))
251 4-287-643-31 CABINET (C 246), P (SR21 (SILVER)/SR21 (SILVER))
252 A-1790-895-A PD-426 BOARD, COMPLETE
253 4-209-715-01 JOYSTICK
* 254 4-209-716-01 INSULATING SHEET, PD
255 4-209-714-01 BUTTON, PLAYBACK
* 256 4-209-713-01 PLATE, P GROUND
257 4-209-711-02 CABINET (M), P
258 1-884-626-11 FP-1479 FLEXIBLE BOARD (Note 2)
259 4-282-730-01 COVER (M 246), HINGE
260 X-2582-029-1 HINGE ASSY, SIMO STYLE
261 1-471-504-11 MAGNET (ND5X3.5X2.4-B) (Note 1)
262 4-282-731-01 COVER (C 246), HINGE (BLACK)
262 4-282-731-11 COVER (C 246), HINGE (SILVER)
263 A-1839-787-A CABINET (R (246)) ASSY (SX21/SX21E)
263 A-1839-789-A CABINET (R (249)) ASSY (SR21/SR21E)
264 3-283-643-01 SCREW, TRIPOD
* 265 4-209-704-01 FRAME, BOTTOM
266 4-296-784-01 SHEET (LCD246), WAVE ABSORPTION
267 2-649-300-01 SHEET, ADHESIVE (Note 3)
LCD901 1-811-218-11 LCD MODULE
SP901 1-858-490-41 SPEAKER (1.3CM)
#1 2-635-562-11 SCREW (M1.7)
#2 2-635-562-31 SCREW (M1.7)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#11 3-078-890-11 SCREW, TAPPING
#12 3-080-204-21 SCREW, TAPPING, P2
#68 2-655-581-01 SCREW 0+P2 M1.7 NEWTRU-STAR SG
