DCR-SR21/SR21E/SX21/SX21E_L2
2-1
2. REPAIR PARTS LIST

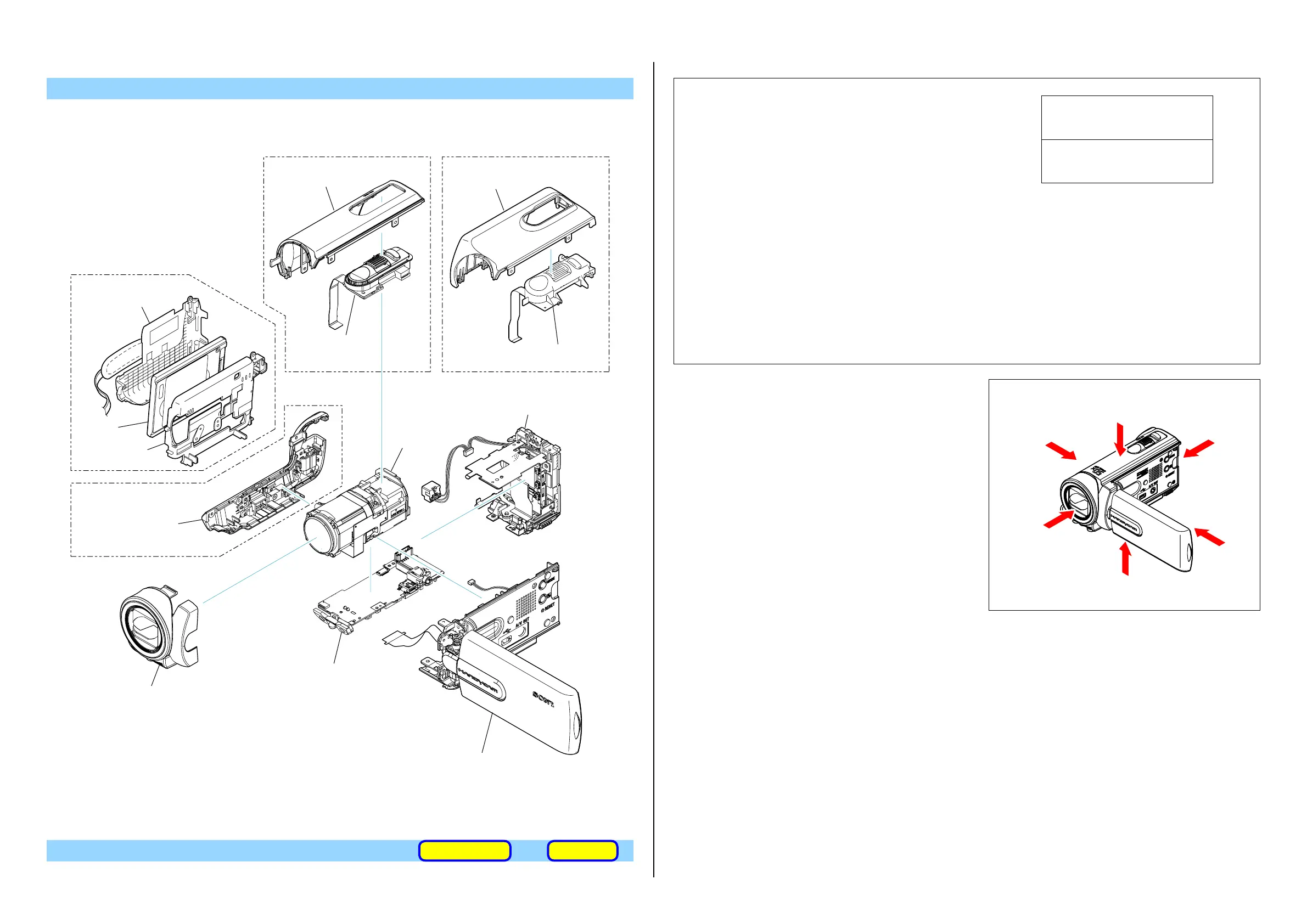

Follow the disassembly in the numerical order given.
IDENTIFYING PARTS
Link
ACCESSORIES ASSEMBLY
VC-611
SR21/SR21E
SR21/SR21ESX21/SX21E
SX21/SX21E
4 HDD
1 F Panel Assy
2 Top Cabinet Assy
6 Control Switch Block
(PS24400)
q; VC-611 (F)/(H) Board
9 Lens Block
• CD-801 Board
3 Cabinet (G )Assy
7 Cabinet (R) Section
• PD-426 Board
• FP-1479 Flexible Board
8 Battery Panel Section
• MS-451 Board
• FP-1290 Flexible Board
2 Top Cabinet Assy
6 Control Switch Block
(PS24400)
3 Cabinet (G )Assy
5 HDD Holder
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some differences from the original
one.
• Items marked “*” are not stocked since they are seldom required for routine service.
Some delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views are not sup-
plied.
• Due to standardization, replacements in the parts list may be different from the parts
specified in the diagrams or the components used on the set.
• CAPACITORS:
uF: μF
• COILS
uH: μH
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: μ, for example:
uA...: μA... , uPA... , μPA... ,
uPB... , μPB... , μPC... , μPC... ,
uPD..., μPD...
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
• Abbreviation
AR : Argentine model
AUS : Australian model
BR : Brazilian Model
CH : Chinese model
CND : Canadian model
MX : Mexican model
NE : North European model
View Position
Right View
Left View
Front View
Bottom View
Top Vi e w
Back View
View Position
Right View
Left View
Front View
Bottom View
Top Vi e w
Back View
