Sony DCR-SR210E - Page 39

HELP
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2
HELP

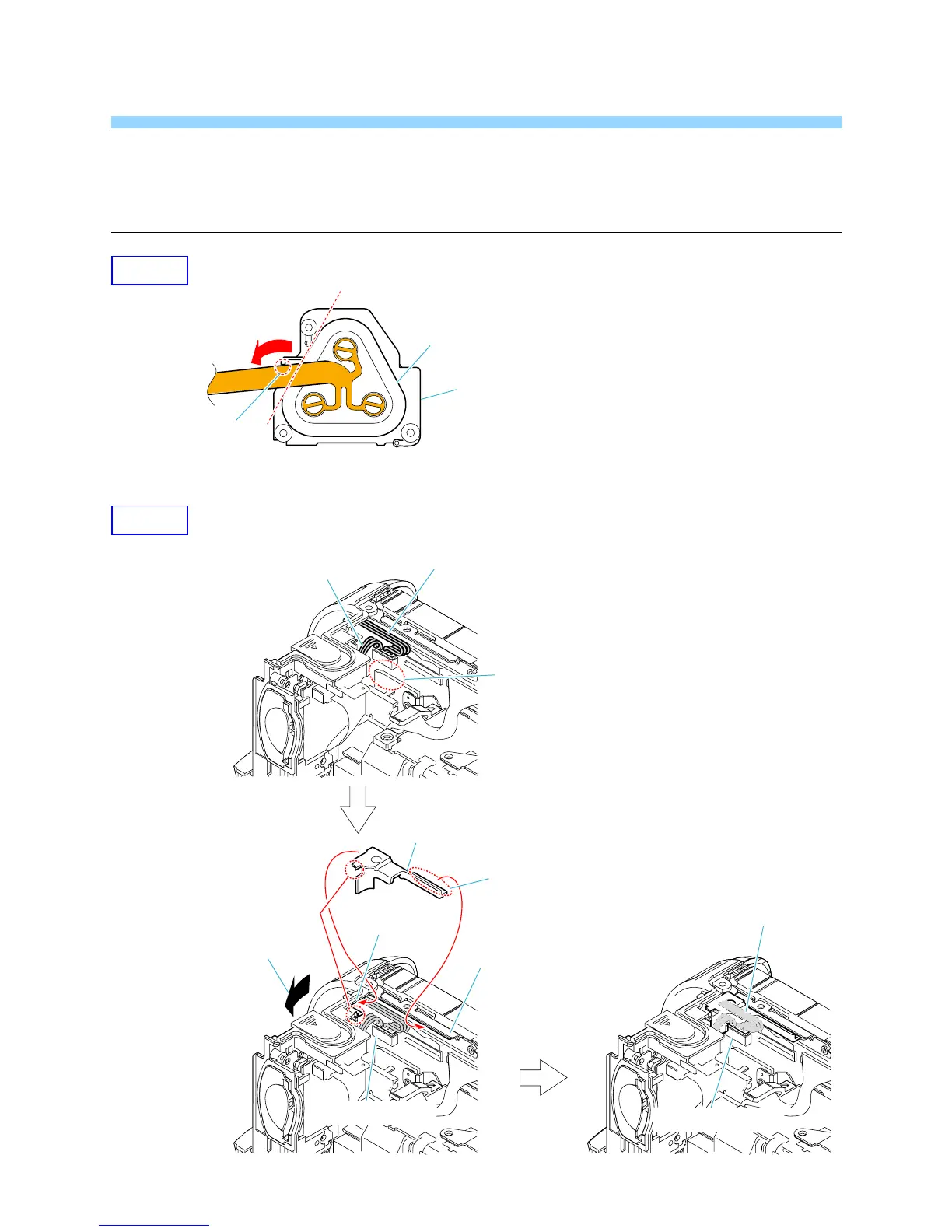

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
HELP01
Mountain fold
Microphone Unit
Microphone Holder (700)
Lib
Open slightly
the BT Panel Block
BT Panel
(700) Assy
BT Harness Retainer
Main Frame
DC Jack Harnesses
(to the DC IN Jack)
DC Jack Harnesses
DC Jack Harnesses
Secure the space by arranging DC Jack Harness
as shown in the figure.
Insert the lib portion to
Main Frame.
DC Jack Harnesses
(to the Battery Terminal Board)
Claw
BT Harness Retainer
HELP02
