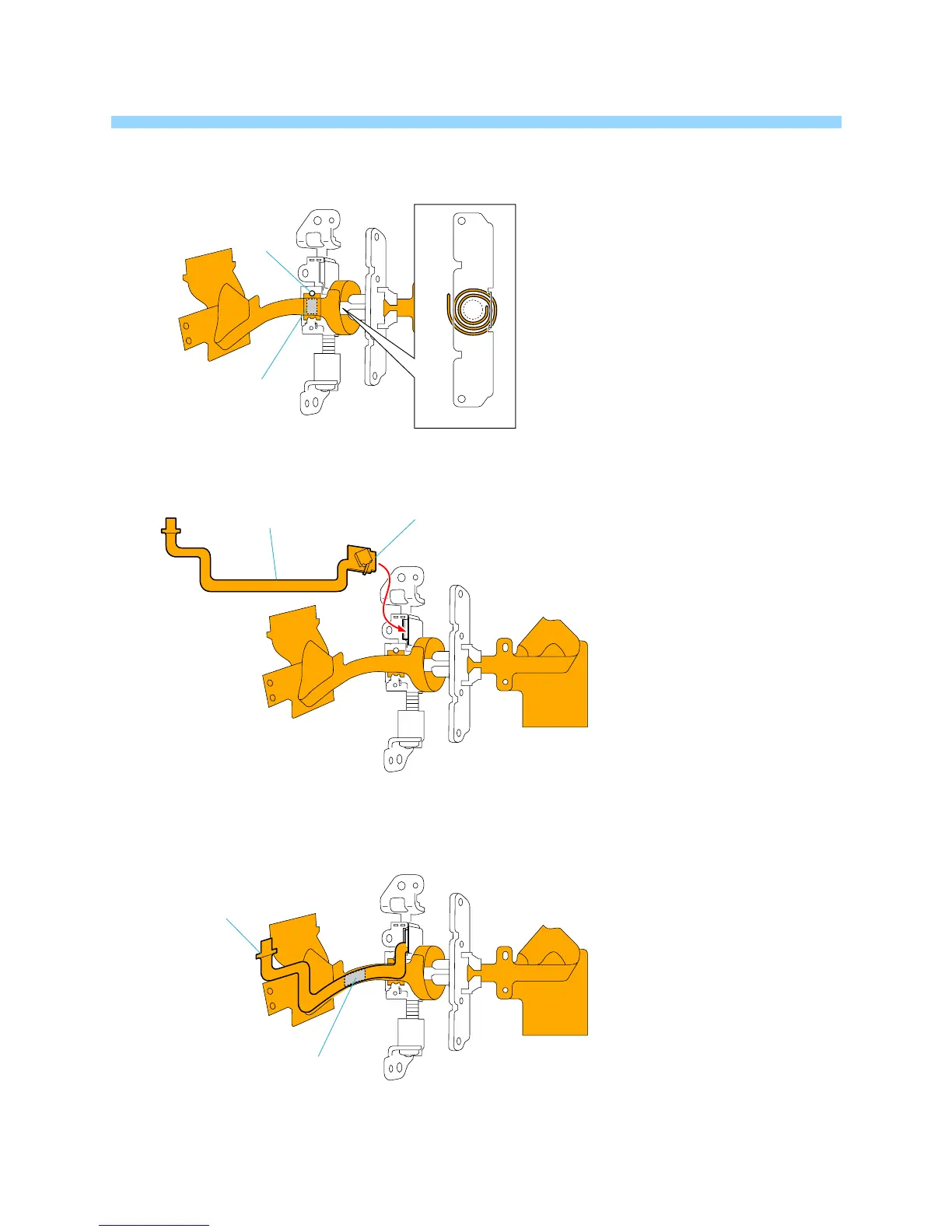

5 Insert the switch part of the FP-854 flexible board as shown in figure.
6 Stick FP-854 flexible board.
4 Roll the FP-659 flexible board 2.5 times in the hinge assy and put it on the hinge assy
with the adhesive tape as shown in figure.
2.5 times
Boss
Adhesive Tape
Switch Part
FP-854 Flexible Board
FP-854 Flexible Board
Adhesive Tape
(FP-659 flexible board)
