Sony DCR-SR210E - Page 44

HELP
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

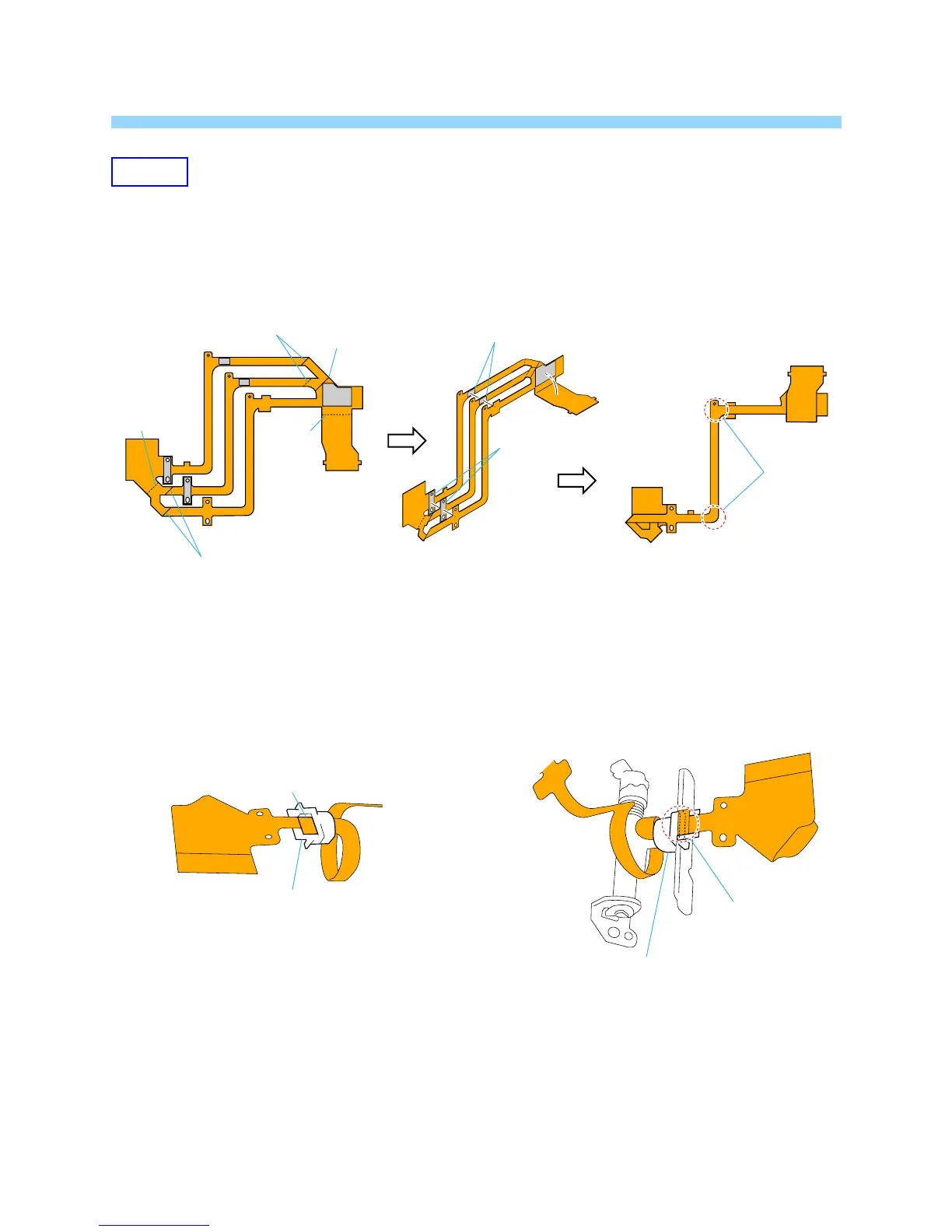

THE METHOD OF ATTACHMENT OF FP-659 FLEXIBLE BOARD AND FP-854 FLEXIBLE BOARD
1 Fold dotted line parts of the FP-659 flexible board as shown in figure.
2 Pass FP-659 flexible board through the flexible clamp
as shown in figure.
3 Install the flexible clamp in the hinge assy
as shown in figure.
Flexible clamp
Stopper of FP-659 flexible board
Stick it together in the adhesive tape
while bending the FP-659 flexible board.
Unite
corners.
Mountain fold
Mountain fold
Valley
fold
Valley fold
Valley
fold
Adhesive tape
Adhesive
tape
Flexible clamp
Concave side
of hinge
HELP11
