5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

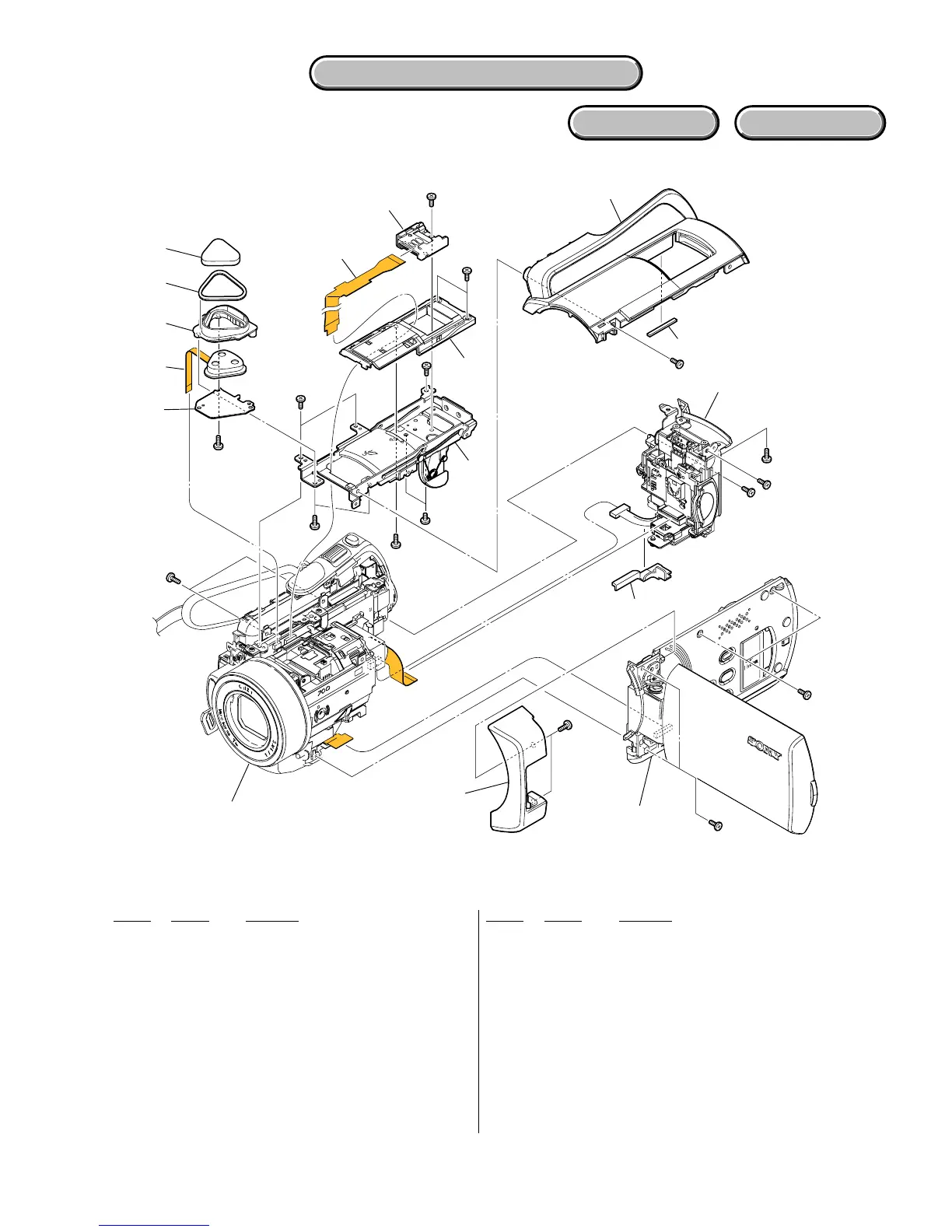

5-1-2. OVERALL SECTION-2
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
* 51 3-290-654-01 HOLDER (700), MICROPHONE
* 52 3-296-520-01 SPACER, MICROPHONE
53 3-290-653-01 SCREEN, WIND
54 1-874-965-11 FP-856 FLEXIBLE BOARD
55 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
* 56 3-290-655-01 HOLDER (700), SHOE
57 X-2188-788-1 FRAME (700) ASSY, SHOE
58 X-2188-784-1 TOP (700) ASSY (HDR-SR10/SR10D/SR10E)
58 X-2188-785-1 TOP (600) ASSY
(DCR-SR220/SR220D/SR220E)
58 X-2188-786-1 TOP (551) ASSY (DCR-SR210E)
* 59 3-290-652-01 RETAINER, BT HARNESS
60 3-290-636-01 COVER (R (700)), HINGE
(HDR-SR10/SR10D/SR10E)
60 3-290-636-11 COVER (R (700)), HINGE
(DCR-SR210E/SR220/SR220D/SR220E)
61 3-870-674-01 SPACER (700), TOP
MIC901 1-542-711-31 MICROPHONE UNIT
#1 2-635-562-11 SCREW (M1.7) (Black)
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#11
#2
#14
#11
#11
ns
MIC901
#11
#12
#2
#1
#14
#14
#2
#14
#14
#
2
#2
51
52
53
54
55
56
Overall Section-3
(See Page 5-4)
BT Panel Block
(See Page 5-10)
Cabinet (R) Section
(See Page 5-8)
57
58
61
59
60
