5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

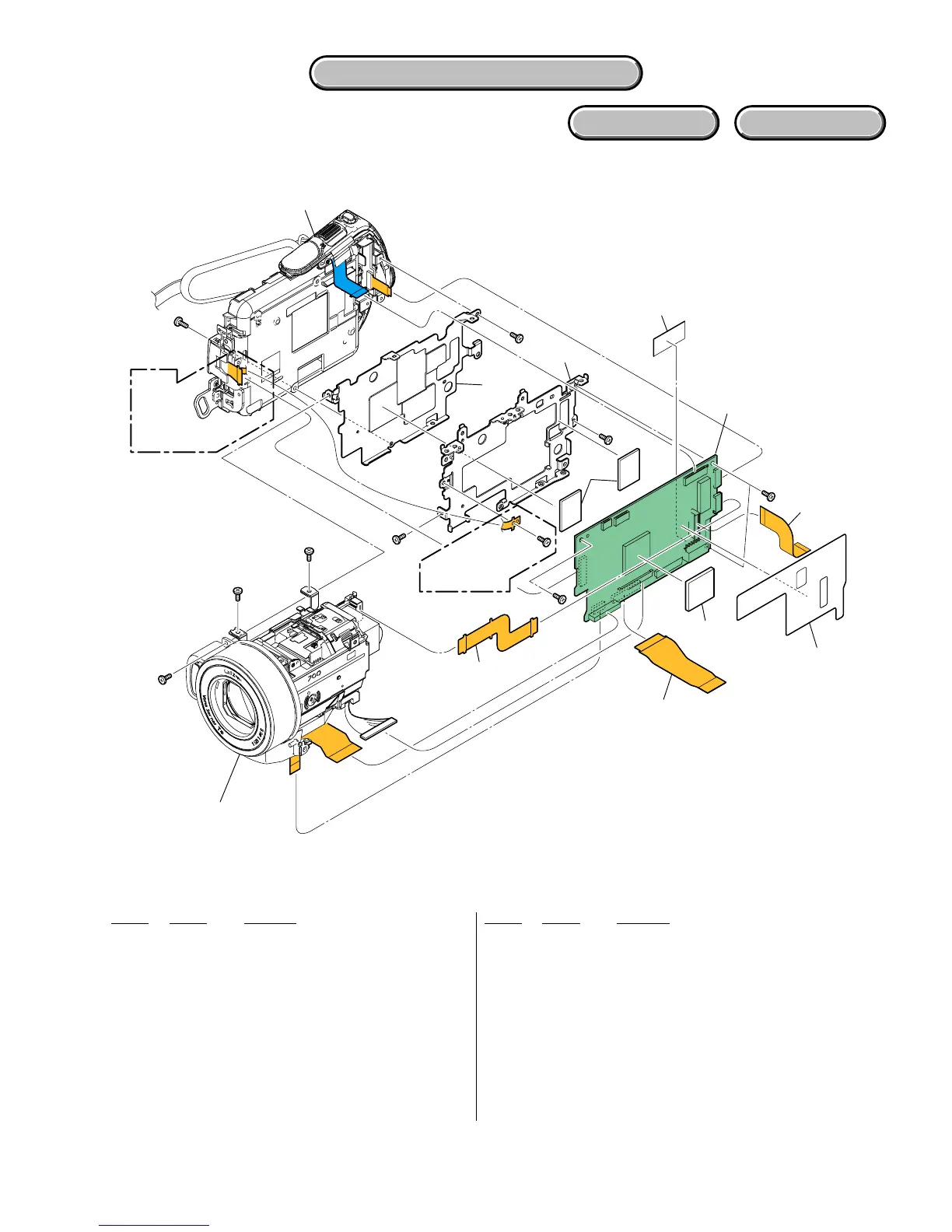

5-1-3. OVERALL SECTION-3
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 3-290-668-01 FRAME (700), MAIN
102 3-290-677-01 SHEET (B), VC RADIATION
103 A-1497-992-A VC-516 BOARD, COMPLETE (SERVICE)
(HDR-SR10/SR10D)
103 A-1497-993-A VC-516 BOARD, COMPLETE (SERVICE)
(HDR-SR10E)
103 A-1497-994-A VC-516 BOARD, COMPLETE (SERVICE)
(DCR-SR220/SR220D)
103 A-1497-995-A VC-516 BOARD,COMPLETE (SERVICE)
(DCR-SR220E)
103 A-1497-996-A VC-516 BOARD, COMPLETE (SERVICE)
(DCR-SR210E)
104 1-874-802-11 FP-803 FLEXIBLE BOARD
105 3-290-676-01 SHEET (A), VC RADIATION
106 1-874-813-11 FP-814 FLEXIBLE BOARD
* 107 3-290-678-01 LABEL, FUSE REPLACEMENT CAUTION
* 108 3-398-042-01 SHEET (AN), SHIELD
109 1-874-804-11 FP-805 FLEXIBLE BOARD
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#14 2-599-475-11 SCREW (M1.7) (Silver)
(See Page 5-5)
#3
#3
#3
#14
#3
#14
#2
#3
#3
#2
ns
VC-516
101
102
103
104
105
Cabinet (L) Section
(See Page 5-5)
Cabinet (F) Section
(See Page 5-6)
108
106
107
HDR-SR10/SR10D/
SR10E
HDR-
SR10/
SR10D/
SR10E
(See Page 5-5)
109
