5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

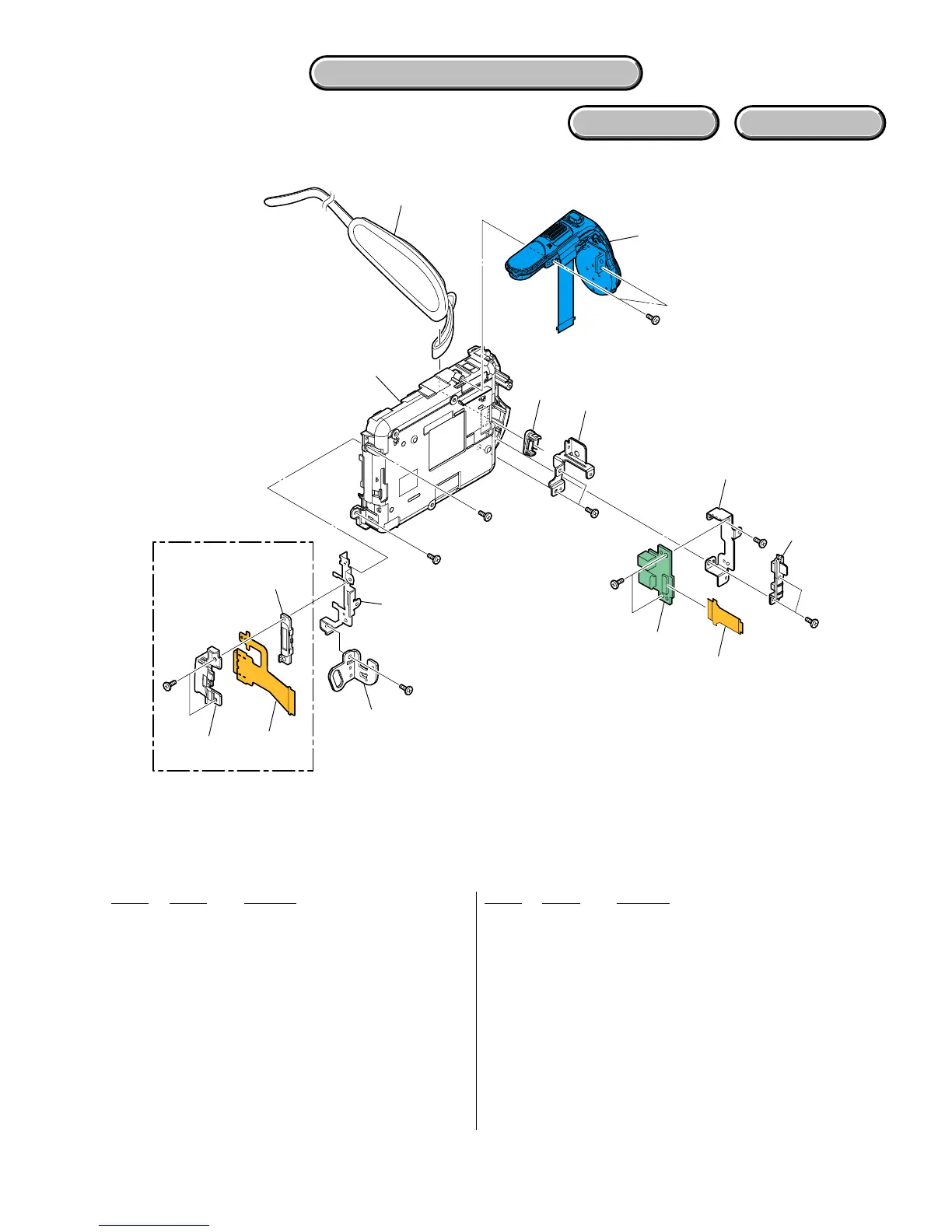

5-1-4. CABINET (L) SECTION
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
* 151 3-290-674-01 BASE (700), LFJK (HDR-SR10/SR10D/SR10E)
152 A-1494-343-A FP-855 FLEXIBLE BOARD, COMPLETE
(HDR-SR10/SR10D/SR10E)
* 153 3-296-445-01 RETAINER (700), LFJK
(HDR-SR10/SR10D/SR10E)
* 154 3-290-670-01 FRAME (F (700)), STRAP
* 155 3-290-671-01 FRAME (700), LF
156 3-290-483-01 CABINET (L)
(EXCEPT DCR-SR220: US: /SR220D/
HDR-SR10: US/SR10D)
156 3-290-483-03 CABINET (L) (DCR-SR220: US/SR220D/
HDR-SR10: US/SR10D)
157 2-664-928-41 BELT, GRIP
158 1-480-427-31 SWITCH BLOCK, CONTROL (PS28100)
(DCR-SR210E/SR220/SR220D/SR220E)
158 1-480-427-41 SWITCH BLOCK, CONTROL (PS28100)
(HDR-SR10/SR10D/SR10E)
159 3-290-484-01 RETAINER, GRIP BELT
* 160 3-290-485-01 FRAME, BELT
* 161 3-290-672-01 FRAME, JK
162 A-1494-342-A JK-366 BOARD, COMPLETE
163 1-874-803-11 FP-804 FLEXIBLE BOARD
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#11
#3
#11
#11
#11
#2
#14
#14
#14
ns
HDR-SR10/SR10D/SR10E
151
152
153
154
155
156
157
159
160
161
162
158
163
