5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2
DISASSEMBLY
HARDWARE LIST

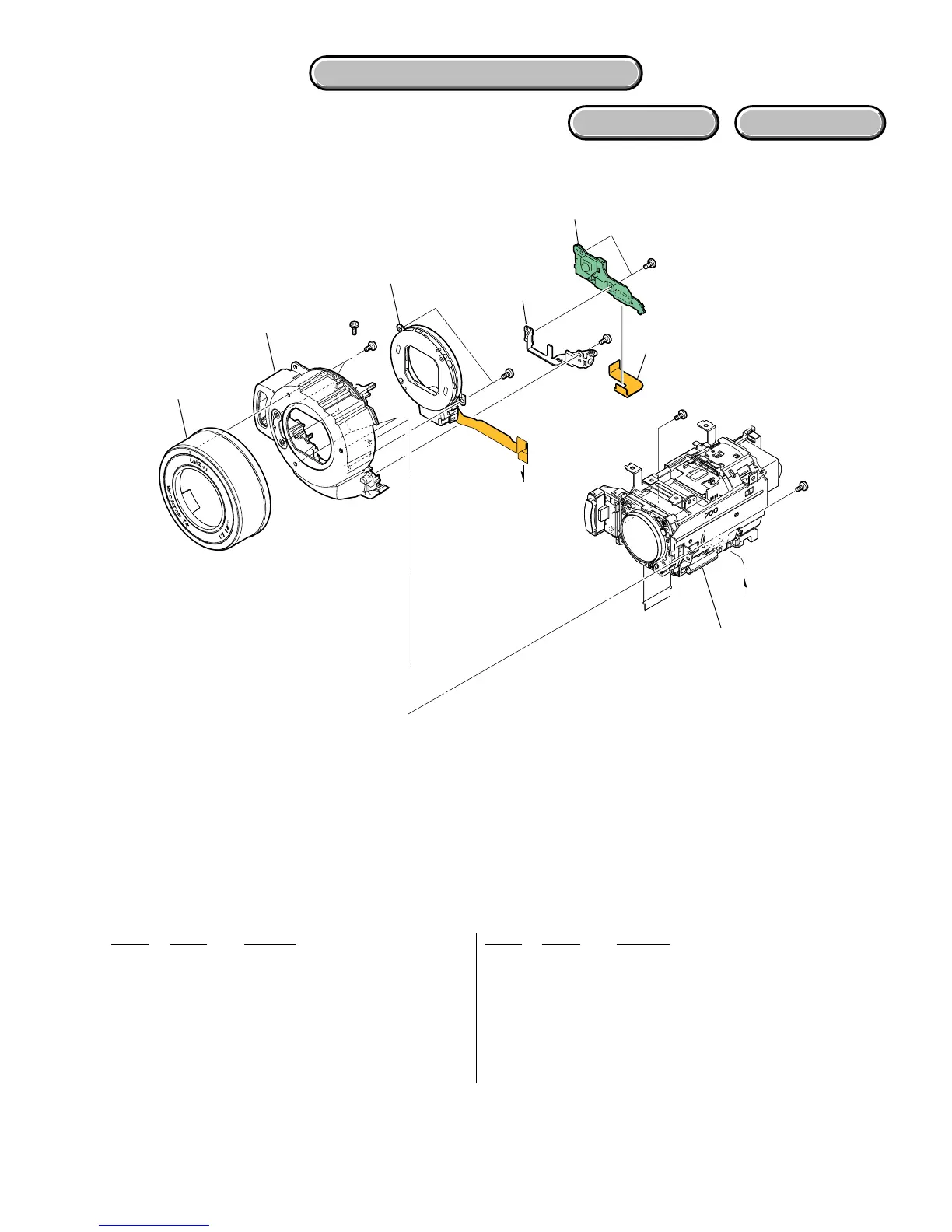

5-1-5. CABINET (F) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
201 3-290-658-01 RING (700), LENS
202 X-2188-781-1 CABINET (F (700)) ASSY
(HDR-SR10/SR10D/SR10E)
202 X-2188-782-1 CABINET (F (600)) ASSY
(DCR-SR210E/SR220/SR220D/SR220E)
203 A-1419-023-A LENS BARRIER UNIT
* 204 3-290-659-01 FRAME (700), F
205 A-1497-997-A FR-285 BOARD, COMPLETE (SERVICE)
(HDR-SR10/SR10D/SR10E)
205 A-1497-998-A FR-285 BOARD, COMPLETE (SERVICE)
(DCR-SR210E/SR220/SR220D/SR220E)
206 1-874-962-11 FP-853 FLEXIBLE BOARD
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
A
A
#2
#14
#11
#11
#11
#11
#11
Lens Block
(See Page 5-7)
201
202
203
204
206
205
