5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

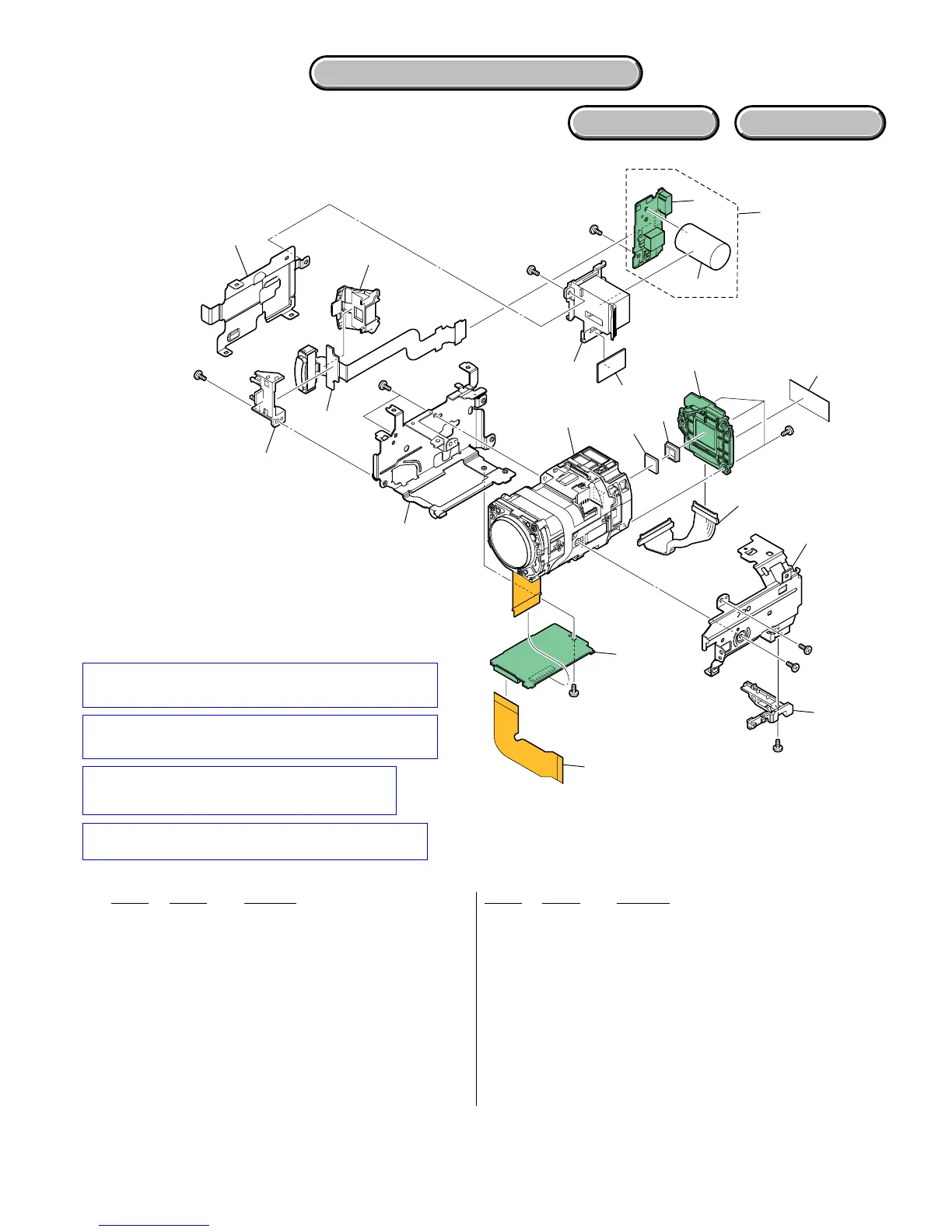

5-1-6. LENS BLOCK
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
* 251 3-290-666-01 HOLDER (700), ST
0 252 1-480-263-41 FLASH UNIT
253 3-290-660-01 FRAME (L (700)), LENS
254 3-290-663-01 HOLDER, CAPACITOR
255 1-481-251-11 CORE, FERRITE
256 A-1494-352-A ST-189 BOARD, COMPLETE
257 3-295-427-01 SHEET (700), CM RADIATION
258 A-1512-349-A CMOS BLOCK ASSY (1260) (including CM-093
complete board, IC6903 and IC6904
(CMOS imager))(Note 1)
259 1-788-709-11 OPTICAL FILTER BLOCK (OFB-03-37)
260 3-217-744-01 RUBBER (1260), SEAL
261 A-1497-728-A LSV-1260A (SERVICE)
262 1-965-669-11 HARNESS (HN-058) (Note 2)
263 3-290-661-01 FRAME (R (700)), LENS
264 A-1494-351-A LD-230 BOARD, COMPLETE
265 1-874-800-11 FP-801 FLEXIBLE BOARD
*0C5056 1-114-393-11 ELECT 70uF 99% 330V
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
• Refer to page 5-1 for mark 0.
LD-230
#11
#14
#12
#14
#14
#11
#14
ns
ns
ns
ns
C5056
#14
#14
251
252
253
254
255
256
257
262
(Note 2)
258
(including CM-093 complete board,
IC6903 and IC6904 (CMOS imager)
)
(Note 1)
259
260
261
263
264
265
Note 1: イメージャの交換時は4-3ページのイメージャ交換時
の注意を必ずお読みください。
Note 1: Be sure to read “Precuations for Replacement of Imager”
on page 4-2 when changing the imager.
Note 2 : ハーネス（HN-058）の交換時は2-1ページの
Notefordisconnectingtheharness(HN-058)
を参照してください。
Note 2: Refer to page 2-1 “Note for disconnecting the harness
(HN-058)” when changing the harness (HN-058).
