5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

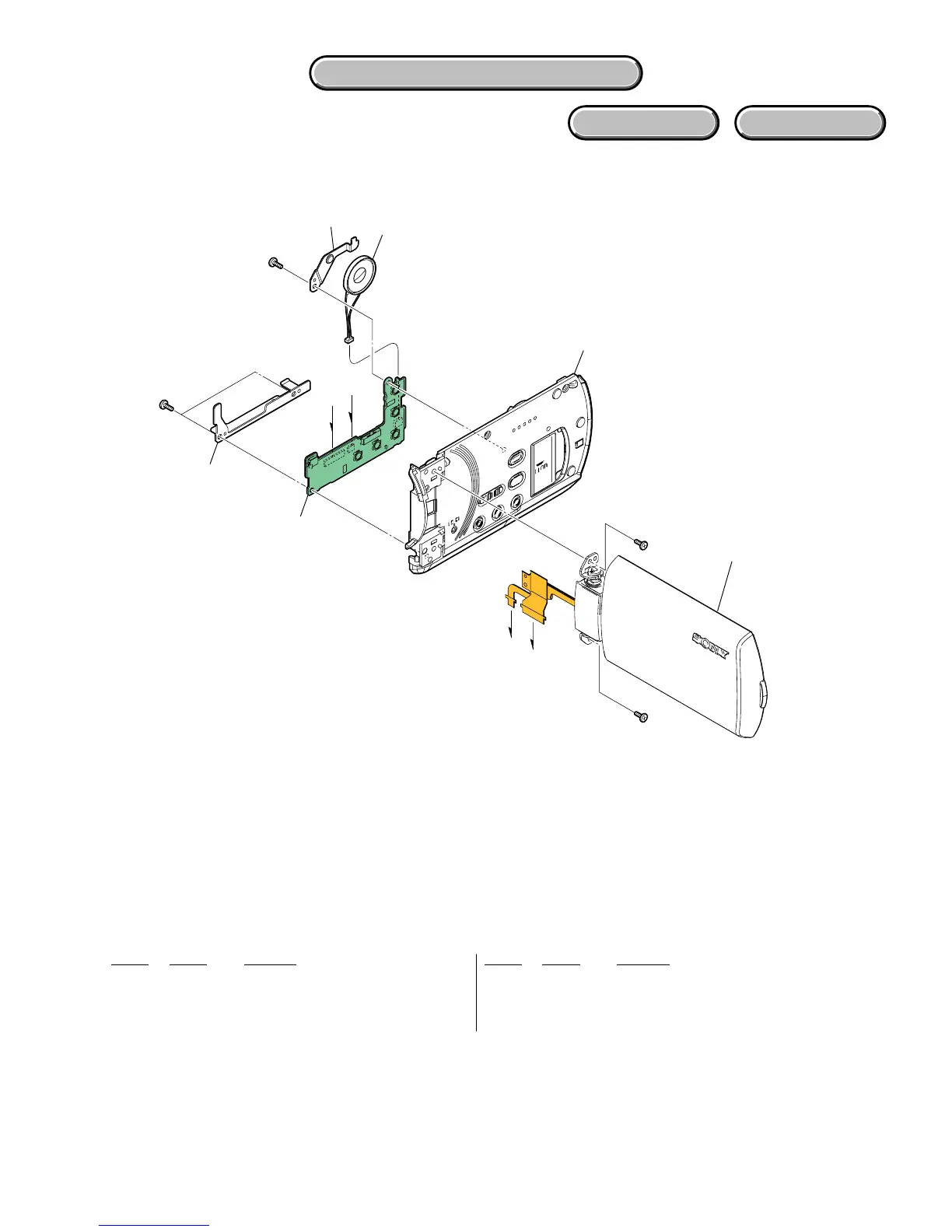

5-1-7. CABINET (R) SECTION
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
* 301 3-290-640-01 FRAME (700), CK
302 A-1494-347-A CK-196 BOARD, COMPLETE
303 X-2188-806-1 CABINET (R (700)) ASSY
SP901 1-825-262-82 LOUD SPEAKER (1.6CM)
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
A
B
B
A
#11
#11
SP901
ns
#2
#2
303
301
Panel Block
(See Page 5-9
)
302
