5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

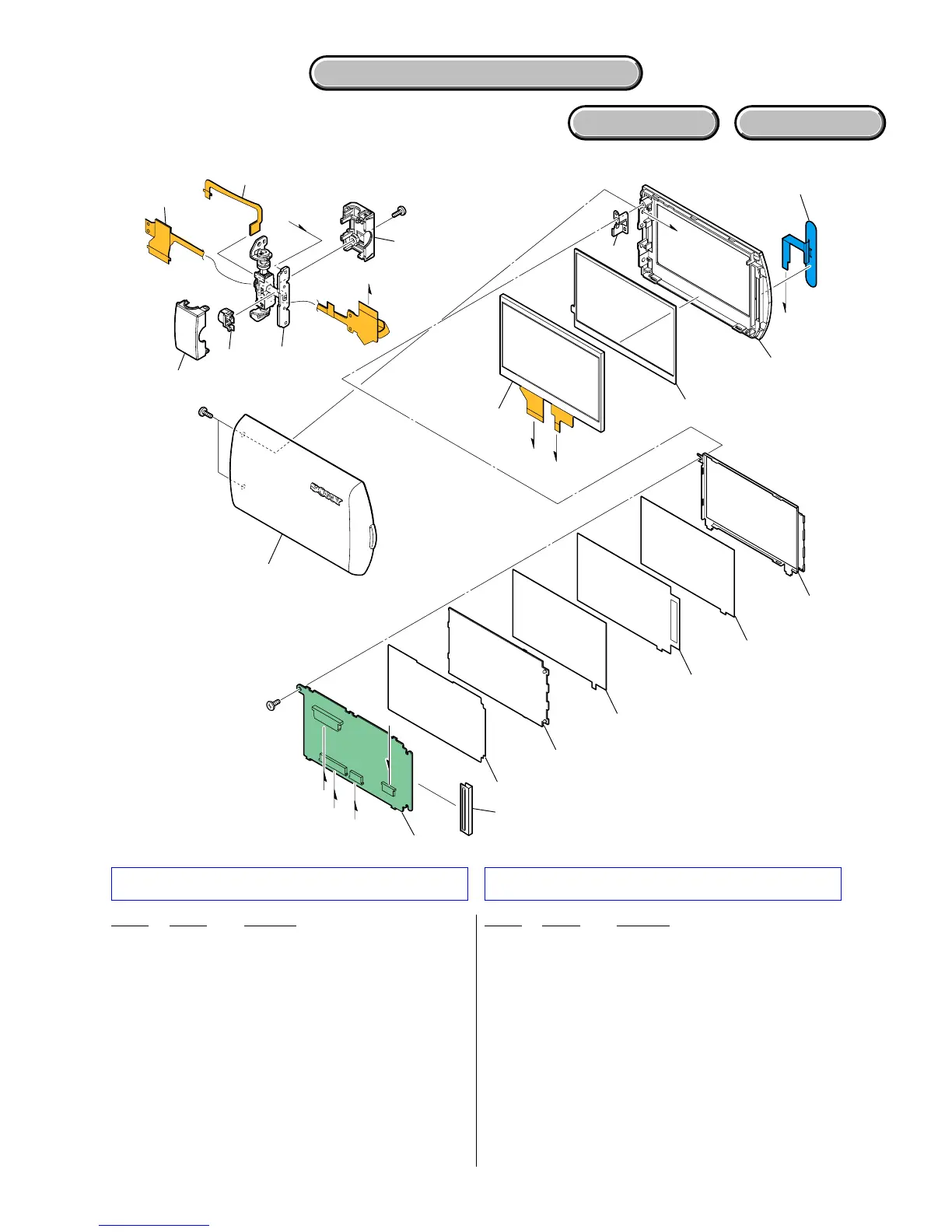

5-1-8. PANEL BLOCK
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
351 1-871-774-11 FP-659 FLEXIBLE BOARD (Note)
352 3-290-637-01 COVER (O (700)), HINGE
(HDR-SR10/SR10D/SR10E)
352 3-290-637-11 COVER (O (700)), HINGE
(DCR-SR210E/SR220/SR220D/SR220E)
353 2-668-087-01 CLAMP, FLEXIBLE
354 X-2188-805-1 HINGE (NC), 08 STYLE ASSY
355 3-290-638-02 COVER (U (700)), HINGE
356 X-2188-807-1 CABINET (C (700)) ASSY, P
(HDR-SR10/SR10D/SR10E)
356 X-2188-808-1 CABINET (C (600)) ASSY, P
(DCR-SR210E/SR220/SR220D/SR220E)
* 357 3-290-642-01 CUSHION (700), TP
* 358 3-290-639-01 PLATE (700), P GROUND
359 3-290-635-01 CABINET (M (700)), P
360 1-479-926-11 SWITCH BLOCK, CONTROL (SB22100)
361 A-1494-349-A PD-356 BOARD, COMPLETE
362 2-694-515-01 REFLECTION SHEET (2.7)
363 2-666-801-01 LIGHT GUIDE (2.7)
364 2-694-514-01 DIFFUSION SHEET (2.7)
365 2-694-513-01 PRISM SHEET H (2.7)
366 2-694-512-01 PRISM SHEET V (2.7)
367 2-694-516-01 FRONT FRAME (2.7)
368 A-1494-348-A FP-854 FLEXIBLE BOARD, COMPLETE (Note)
LCD901 A-1202-058-A TP BLOCK ASSY (27ESHMG07)
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
A
A
B
C
D
E
B
D
E
C
#2
LCD901
ns
#2
PD-356
351
(Note)
352
#11
353
368
(Note)
354
357
355
356
361
362
363
364
365
366
367
359
360
358
Note: FP-659,FP-854フレキシブル基板取付時は「HELP11」を
必ずお読みください。
Note: Be sure to read “HELP11” when you install the FP-659, FP-
854 flexible boards.
