DCR-TRV255E/TRV260/TRV265/TRV265E
1-4. LCD TYPE CHECK
The LCD type can be checked with data value by connecting the adjustment remote commander.
Note: About PD-204 board and LCD module, discriminate LCD type on the machine, and replace the same type.
Preparations:

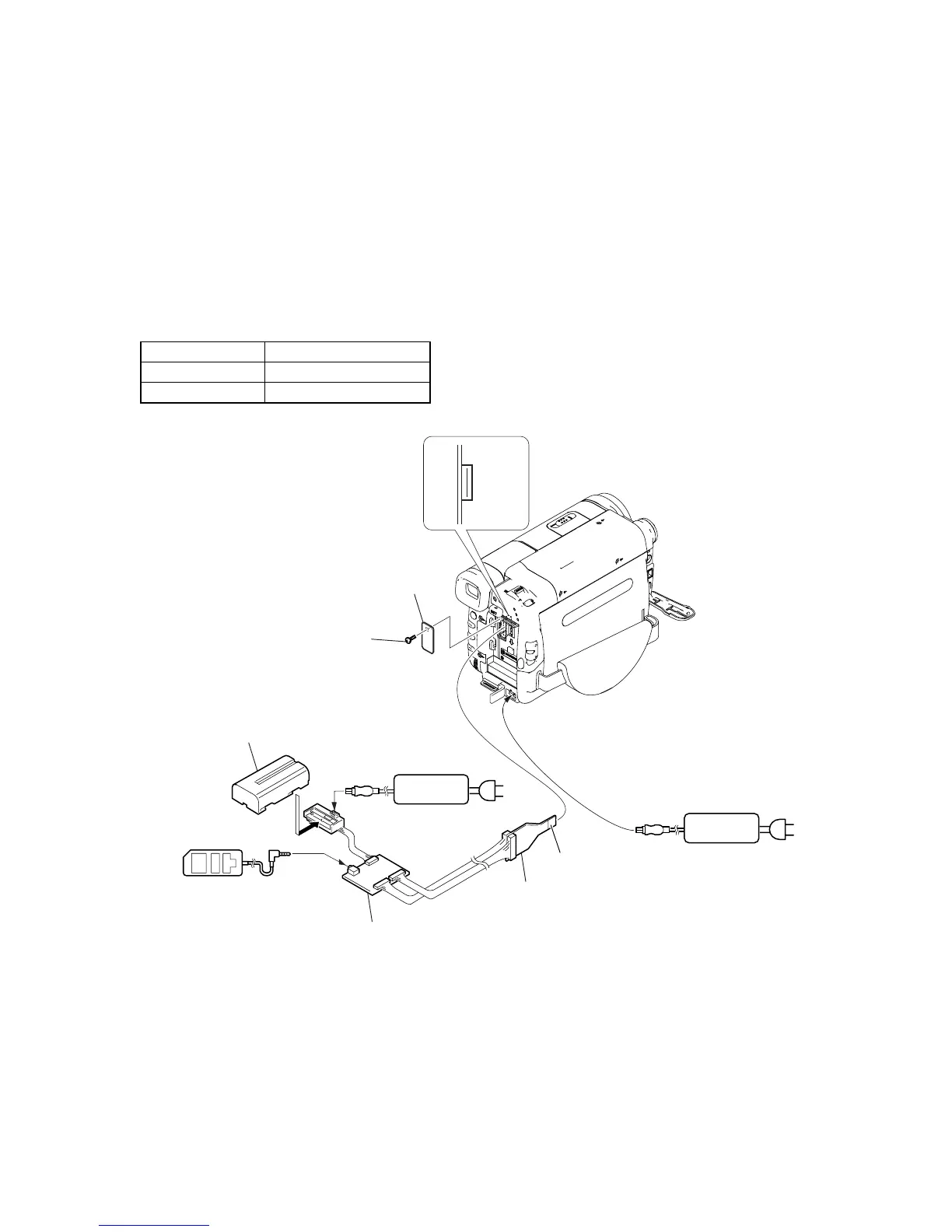

1) Connect the equipment for adjustments according to Fig. 1.
2) Connect the adjustment remote commander to VC-344 board CN1011 via I/F unit for LANC control (J-6082-521-A) and CPC jig
connector (J-6082-539-A).
To operate the adjustment remote commander, connect the AC power adaptor to the DC IN jack of I/F unit for LANC control, or connect
the L series Info-LITHIUM battery to the battery terminal of I/F unit for LANC control.
Checking method:
1) Select page: 3, address: CC.
2) By checking the data value of display data, the type of LCD can be discriminated.
Data LCD type
64 to 67 TYPE C
40 to 43 TYPE S
CN1011
16
1
AC IN
AC adaptor
AC adaptor
CPC lid
I/F unit for LANC control
(J-6082-521-A)
Conductor side
L serices Info
LITHIUM battery (7.2Vdc)
Adjustment
remote commander (RM-95)
CPC jig connector
(J-6082-539-A)
LANC jack
AC IN
Screw (M2)
To Next Page
