Getting Started
9
GB

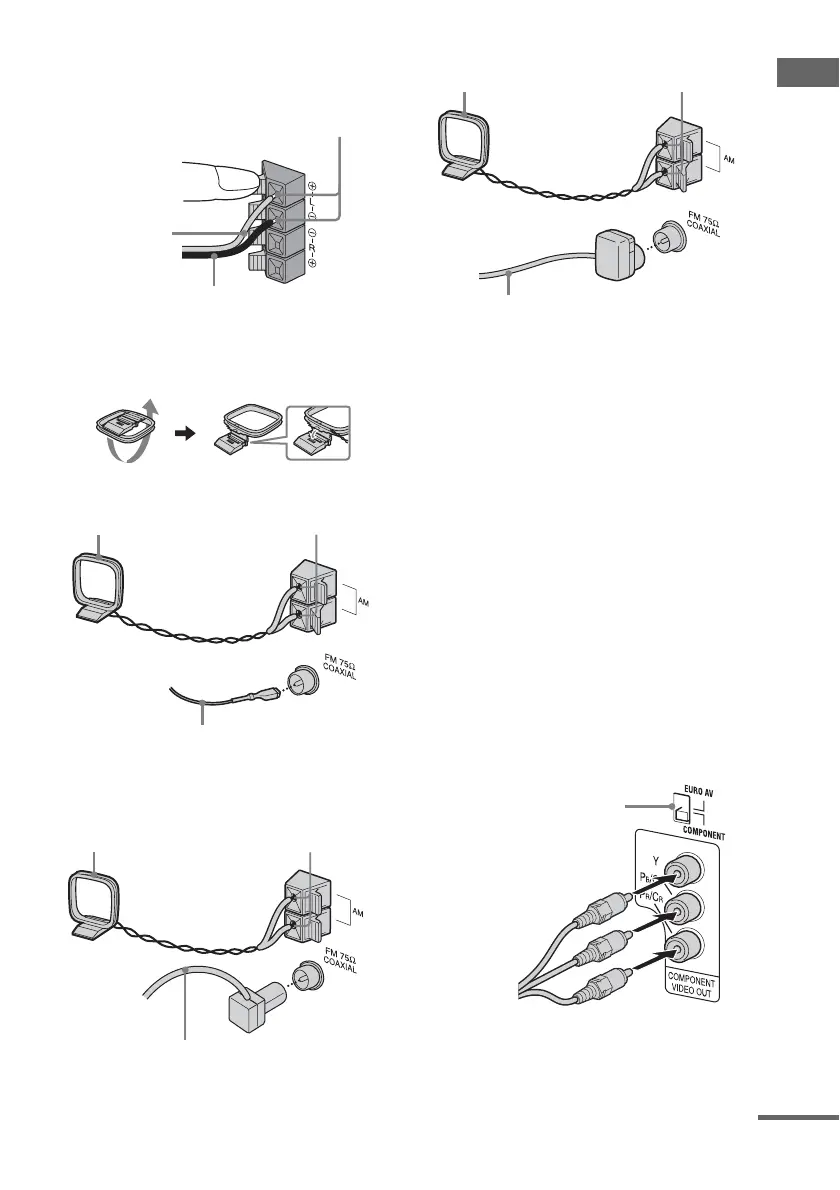

1 Connect the speakers.
Connect the right and left speaker cords to
the SPEAKER jacks as shown below.
2 Connect the FM and AM antennas.
Set up the AM loop antenna, then connect
it.
Plug type A
Plug type B
Plug type C
Note
Keep the antennas away from the speaker cords.
3 Connect a TV.
Select one of the following connections.
Connection A (For all models)
If your TV has component video input
jacks, connect your TV to the
COMPONENT VIDEO OUT jacks with a
component video cord (not supplied).
For Russian model, make sure to set
the VIDEO OUT SELECTOR to
COMPONENT.
If your TV is compatible with progressive
format file signals, use this connection and
set “PROGRESSIVE.” For details, see “To
change the type of signal output from the
system” (page 23).
Black/Stripe (#)
Gray/Solid (3)
Insert only the stripped portion
Extend the FM lead antenna horizontally
AM loop antenna
Insert only the
stripped portion*
* Strip off an end-portion of wire covering.
Extend the FM lead antenna horizontally
AM loop antenna
Insert only the
stripped portion*
* Strip off an end-portion of wire covering.
Extend the FM lead antenna
horizontally
AM loop antenna
I
nsert on
l
y t
h
e
stripped portion*
* Strip off an end-portion of wire covering.
VIDEO OUT SELECTOR*
* Russian model only
continued
