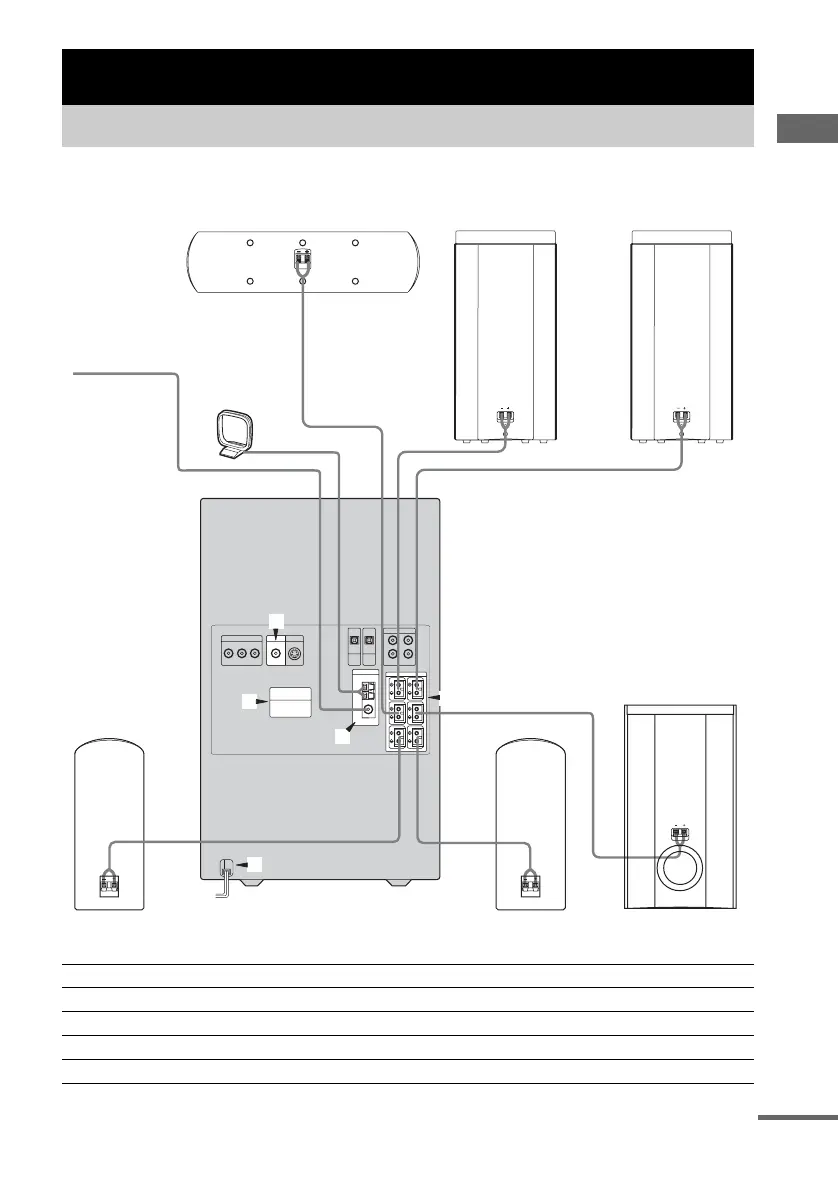

Do the following procedure 1 to 6 to hook up your system using the supplied cords and accessories.
Getting Started
Hooking up the system
Connect the To the
Front speakers SPEAKER FRONT L (white) and R (red) terminals
Rear speakers SPEAKER REAR L (blue) and R (gray) terminals
Center speaker SPEAKER CENTER (green) terminal
Sub woofer SPEAKER WOOFER (purple) terminal
5
1
4
3
2
Front speaker (Right)Center speaker Front speaker (Left)
AM loop antenna
Rear speaker
(Right)
Rear speaker
(Left)
FM antenna
Sub woofer
continued
To Next Page
