Sony DMX-P01 - Pin Assignments of Connectors

44

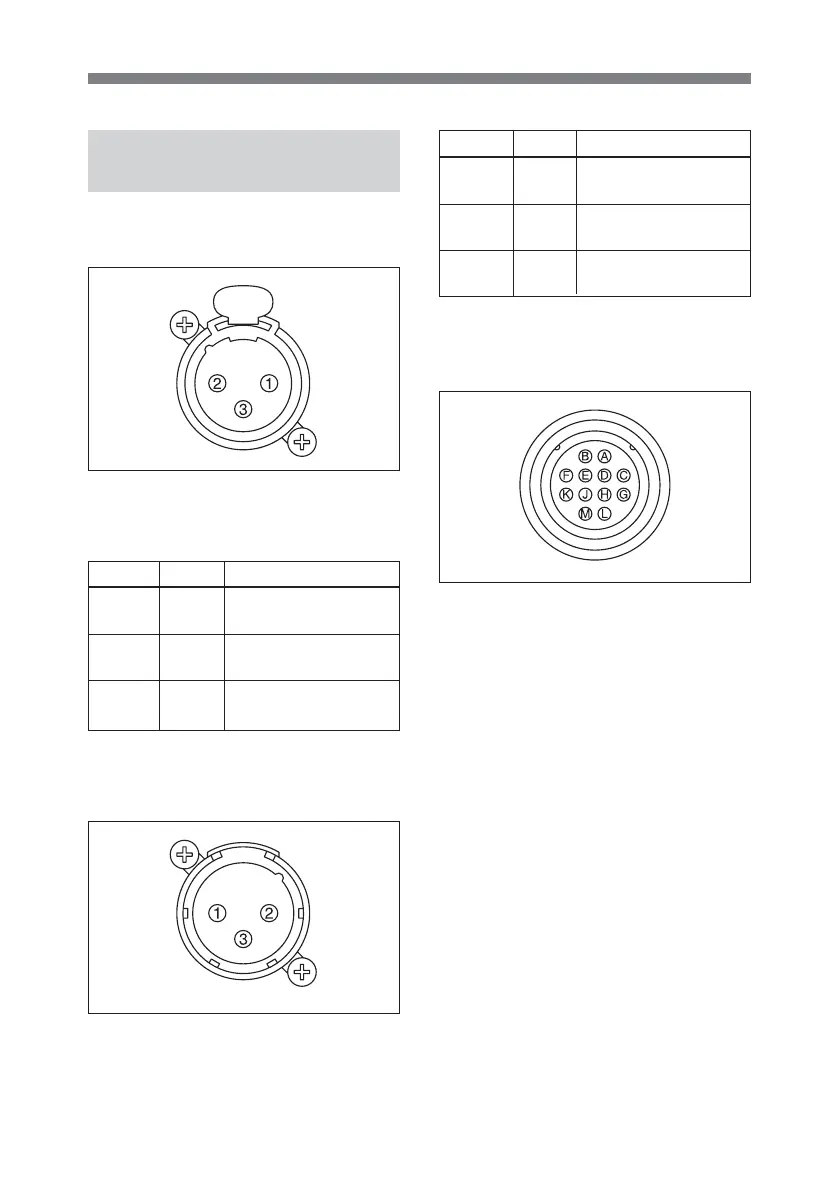

Pin Assignments of
Connectors
INPUT connector
XLR-3-31 (female) equivalent
Pin No. Signal Remarks
1 GND Ground of the audio
signal input
2HOT HOT of the audio
signal input
3 COLD COLD of the audio
signal input
ANALOG OUTPUT connector
XLR-3-32 (male) equivalent
Pin No. Signal Remarks
1 GND Ground of the audio
signal output
2HOT HOT of the audio
signal output
3 COLD COLD of the audio
signal output
CAMERA connector
12-pin (female)
Miscellaneous
