3-8-9. OMC Carrier Balance Provisional
Adjustment
m
. This provisional adjustment explains how to adjust
without using the spectrum analyzer.
When the performed “3-8-8. OMC Carrier Balance
Adjustment” using the spectrum analyzer, this provision-
al adjustment is not required.
. Perform this provisional adjustment only when the
spectrum analyzer is not available for an urgent mainte-
nance. At a later date, be sure to perform “3-8-8. OMC
Carrier Balance Adjustment” using the spectrum analyz-
er.

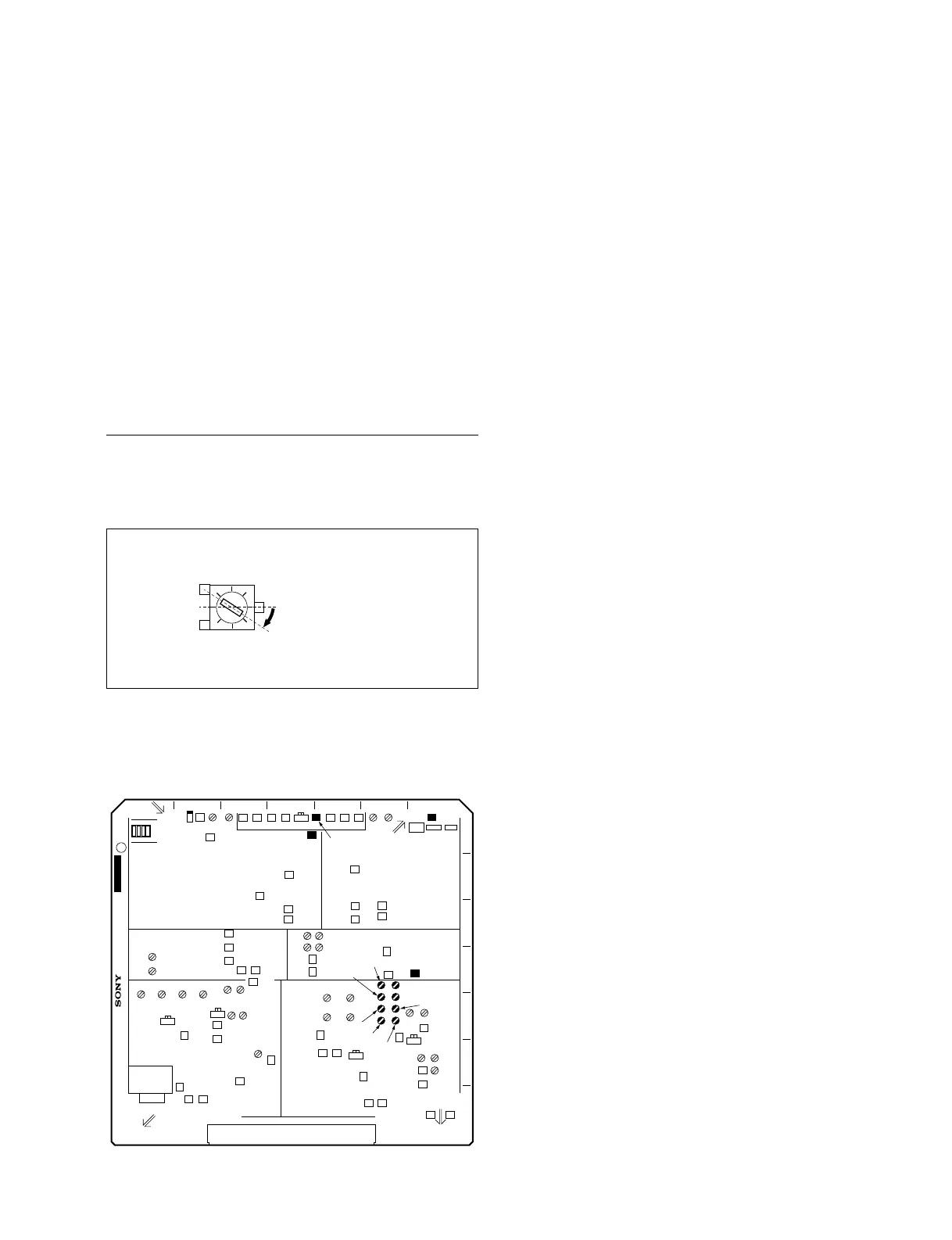

Settings of RVs
Set the following RVs on the DM-89 board to specified
position respectively as shown below.
DM-89 Board (Side A)
RV105 (F-4)
RV106 (F-5)
RV107 (F-5)
RV108 (F-5)
RV305 (F-4)
RV306 (F-5)
RV307 (F-5)
RV308 (F-5)
RV704
A
D902
B C D E FG
S901
DM-89
RV503
E303
1
2
3
4
5
6
7
A
1-648-541- MADE IN JAPAN
E901
RV703
TP8 TP7 TP6 TP5
TP4
TP3 TP2 TP1
RV504
E105
LOTNO, S NO,
S501
E702
TP505
TP705
TP704
E701
TP703
TP702
TP701
TP305
TP700 TP306
TP208
RV301
RV302 RV303 RV304
RV401
RV701
RV702
RV402
RV406
RV407
TEST
S301
TP304
E302
TP303
TP302
E301
TP300
TP404
TP403
RV405
TP503
E501
TP504
TP502
RV502RV501
RV506RV507
TP500
TP506
TP501
TP106
TP105
RV102 RV104
RV101 RV103
RV305
RV306
RV307
RV308
RV105
RV106
RV107
RV108
RV201
RV202
E104
E102
TP102
TP103
S101
E103
E101
TP100
S102
RV211 RV212
RV205
TP202
TP204
E902
TP203
A No.
ON
OFF
S302
TEST
TEST
TEST
ON
OFF
NOR
NOR
NOR
NOR
