Sony DPP-EX7 - Page 17

6-3
DPP-EX7 V2

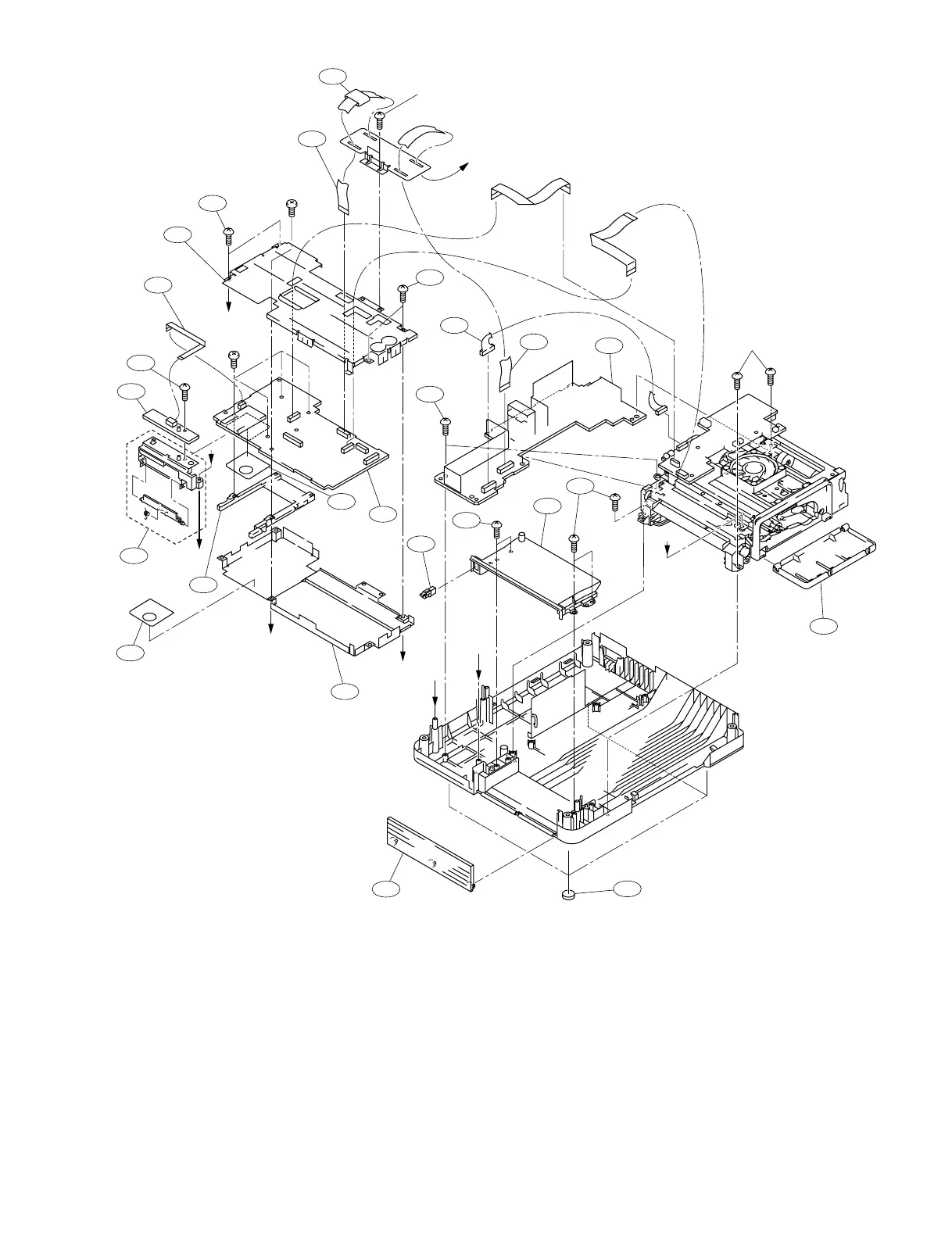

Chassis Block
B
A
D
B
C
D
C
A
BVTT
2.6x5
BTP
2.6x10
BTP
2.6x10
B 2x10
TO
THERMAL HEAD
101
102
103
104
105
106
107
108
109
110
117
117
117
117
117
111
112
113
114
115
116
118
119
120
121
No. Part No. SP Description
101 A-8345-772-A s MOUNTED CIRCUIT BOARD, DK-45
102 A-8345-774-A s MOUNTED CIRCUIT BOARD, PW-45
103 X-3168-376-1 o GUIDE ASSY, PC/MS
104 X-3168-400-2 s CASE (UPPER) ASSY, SHIELD
105 ! 1-468-636-12 s REGULATOR,SWITCHING(100V-120V)
(for J,UC)
! 1-468-637-12 s REGULATOR, SWITCHING (230V)
(for CED,CEK,KR)
106 1-500-635-11 s CORE, FERRITE
107 1-757-374-11 s FFC (POHE14)
108 1-757-375-11 s FFC (DKHE13)
109 1-823-204-11 o CABLE, FLEXIBLE FLAT (DKPW)
110 1-961-275-11 o HARNESS (PS-43)
111 3-205-355-01 o MS SHEET (DK)
No. Part No. SP Description
112 3-205-356-01 o MS SHEET (SLD)
113 3-205-593-11 s DOOR, FRONT
114 3-205-594-11 s DOOR, RIBBON
115 3-205-598-02 o GUIDE, EJECT
116 3-205-614-01 o CASE (LOWER), SHIELD
117 3-946-346-01 s SCREW (+BV)(2.6X8),TAPPING(ST)
118 4-047-474-01 s FOOT, RUBBER (URETHAN)
119 4-650-216-01 s EJECTOR, PCMCIA
120 4-951-620-61 s SCREW (2.6)
121 4-995-081-01 s LATCH, DC
7-621-772-50 s SCREW +B 2X10
7-685-535-14 s SCREW +BTP2.6X10
7-685-861-01 s SCREW +BVTT 2.6X5
