Sony DPP-EX7 - Page 18

6-4
DPP-EX7 V2
A
A
B
B
PS
3x10
BVTT
2.6x5
PSW
2.6x6
B 2.6x3
BVTT
2.6x5
TO DK-45
CN253
TO SW-REG
P3
201
202
203
204
205
206
214
207
208
209
210
211
212
213
215
216
No. Part No. SP Description
201 A-8345-768-A s MOUNTED CIRCUIT BOARD, PE-45
202 A-8345-769-A s MOUNTED CIRCUIT BOARD, RM-45
203 A-8345-770-A s MOUNTED CIRCUIT BOARD, MD-45
204 A-8345-771-A s MOUNTED CIRCUIT BOARD, JD-45
205 X-3608-505-1 s FRAME ASSY,K
206 X-3608-506-1 s GUIDE ASSY,PAPER
207 1-476-408-13 s HEAD, THERMAL
208 1-763-640-11 s FAN, DC
209 1-960-961-11 o HARNESS (PE41)
210 1-960-962-11 o HARNESS (JD41)
No. Part No. SP Description
211 1-961-875-11 o HARNESS (RM-44)
212 3-206-332-01 s SHIM, CENTER
213 3-713-786-51 s SCREW (M2X3)
214 3-946-346-01 s SCREW (+BV)(2.6X8),TAPPING(ST)
215 4-650-140-01 o HOLDER, K FRAME
216 4-650-141-03 s GUIDE, RIBBON
7-621-759-40 s SCREW +PSW 2.6X6
7-621-775-08 s SCREW +B2.6X3
7-682-649-09 s SCREW +PS 3X10
7-685-861-01 s SCREW +BVTT 2.6X5

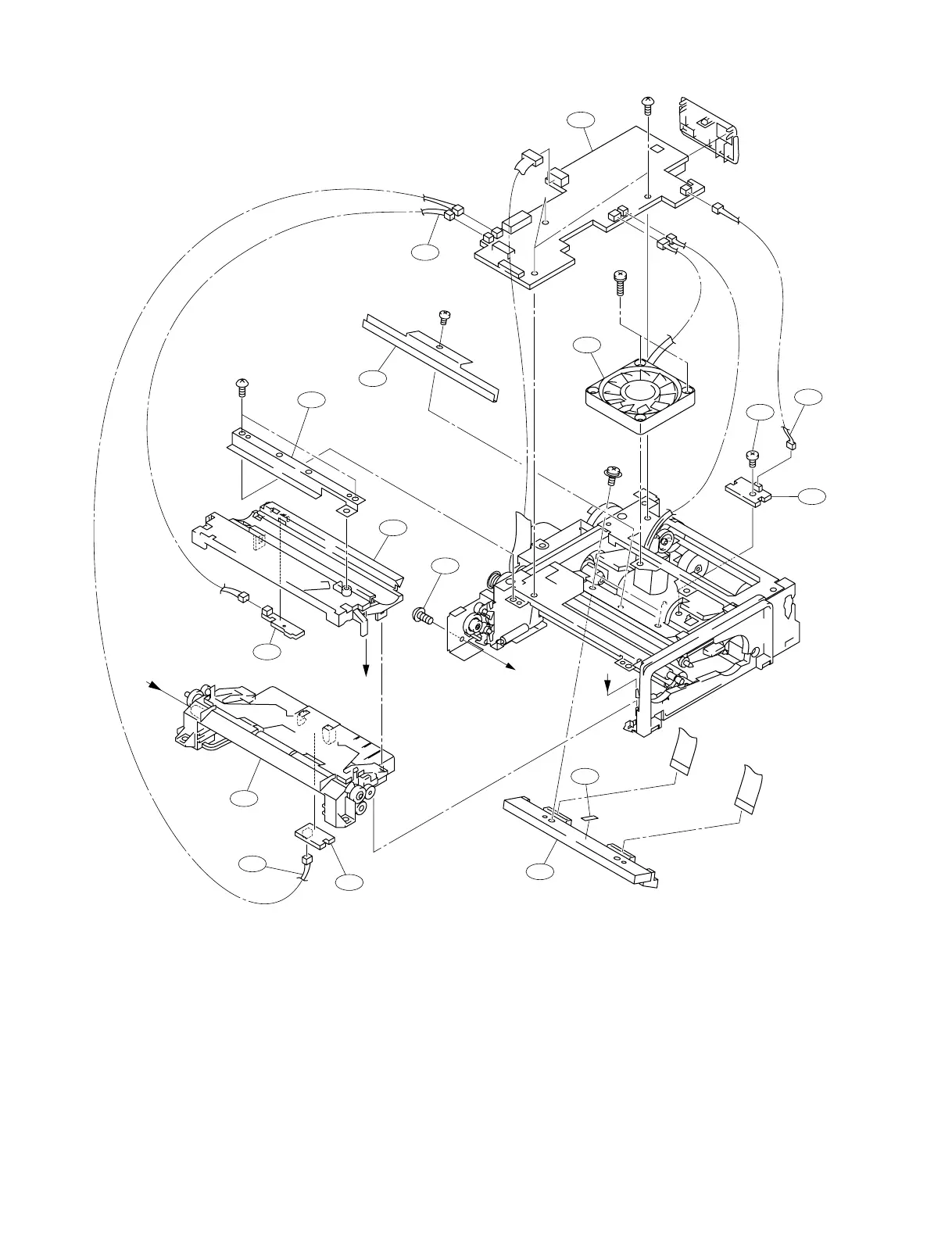

Mecha Deck Block 1
