Overview of
the
Signal
Processing
Blocks
To be continued
The
digital
signal converted by the A/D
converter is
then processed
through
Input,
Equalizer,
Delay, Auto
panner and
Output
blocks
sequentially.
Then it
enters into the D/A
converter

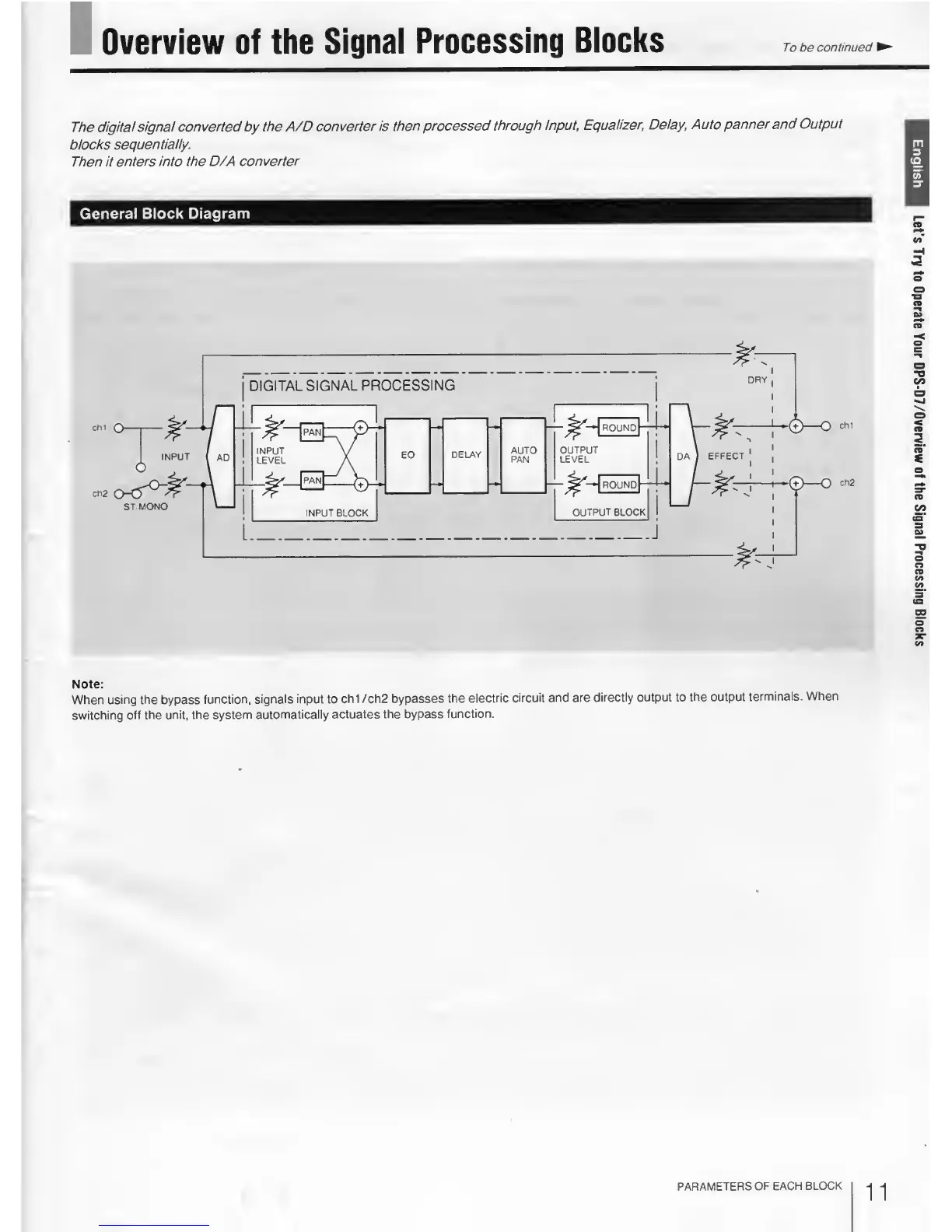

General Block Diagram
m
D
(Q
55'
zr
chi
ch2
Note:
When
using the
bypass
function, signals
input
to
chi /ch2
bypasses the
electric
circuit and are
directly output to
the output
terminals.
When
switching
off the unit, the system
automatically
actuates the bypass
function.
