Sony DSC-H7 - CABINET AND FLEXIBLE BOARD DISASSEMBLY

2-2
DSC-H7/H9_L2
2-1. DISASSEMBLY
HARDWARE LIST
HARDWARE LIST

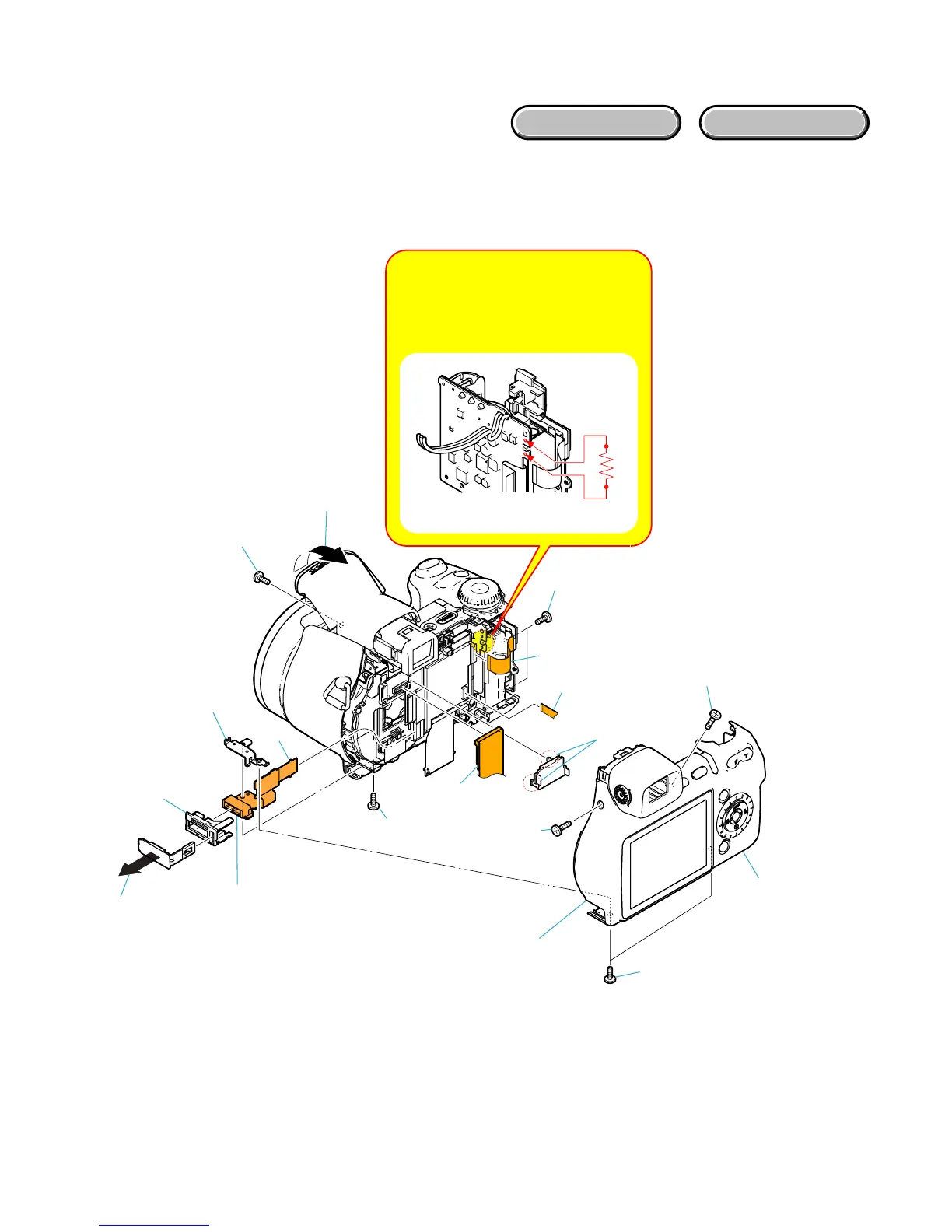

EXPLODED VIEW
EXPLODED VIEW
2-1-1. CABINET(REAR) BLOCK ASSY AND JK-338 FLEXIBLE BOARD (DSC-H7)
1 Cabinet (Rear) Block Assy
2 JK-338 Flexible Board
1-1 (#10)
1-2 (#10)
1-3 (#10)
1-4 (#10)
1-5
1-6 (#12)
1-7
1-8
1-9 (Claw)
1-10
2-1(#10)
2-3
2-4
2-2
1-11
1-12
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between the two points
with the short jig about 10 seconds.
R:1 kΩ/1 W
(Part code: 1-215-869-11)
