Assembling procedures that require attention are described here.
a
b

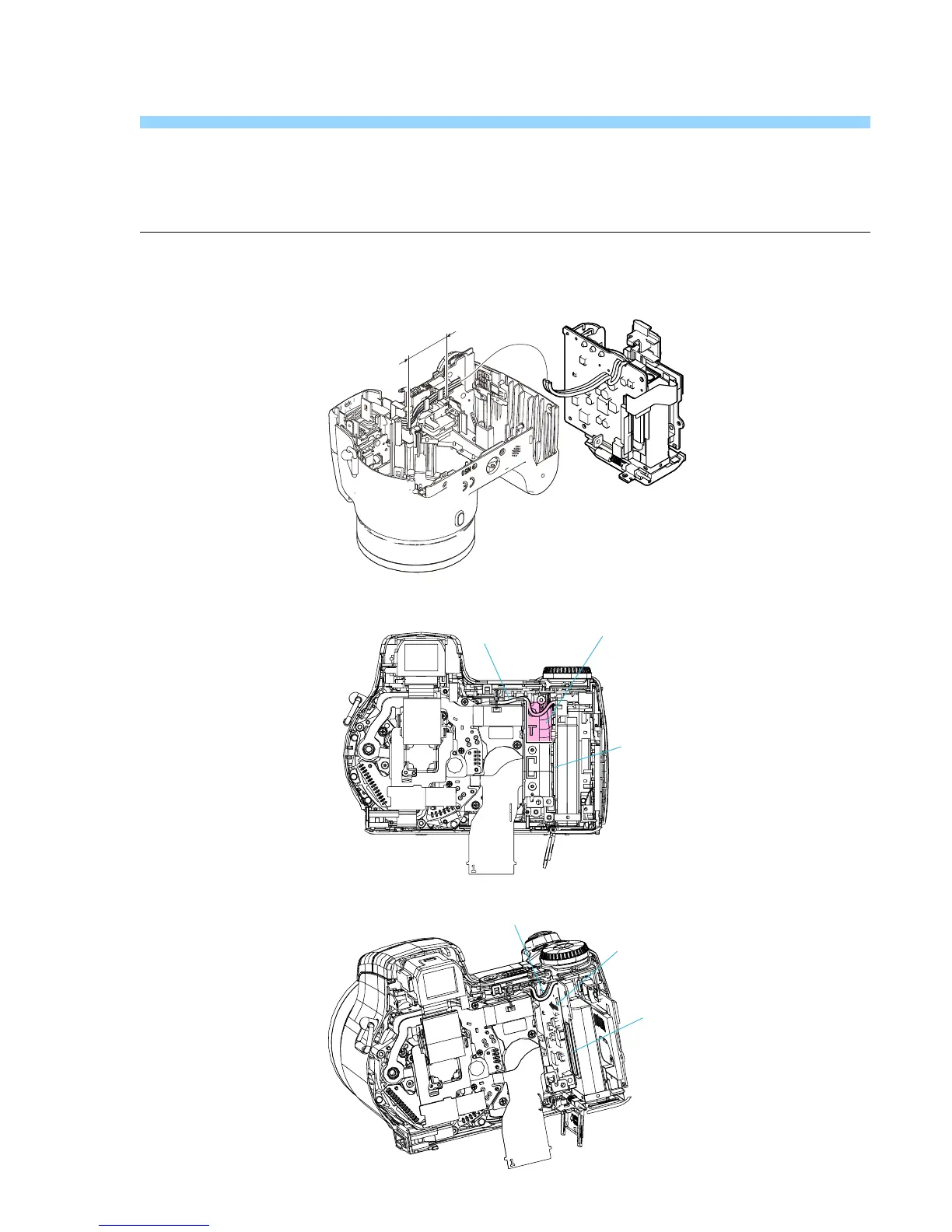

When installing theree harness, do not intersect the harness in the part between “a” and “b” as shown in figure.
Rib
Strobe harness
Arrange the strobe harness
inside of the rib
Rib
Strobe harness
Arrange the strobe harness
in this range.
