Sony DSC-H7 - Page 23

HELP
DSC-H7/H9_L2

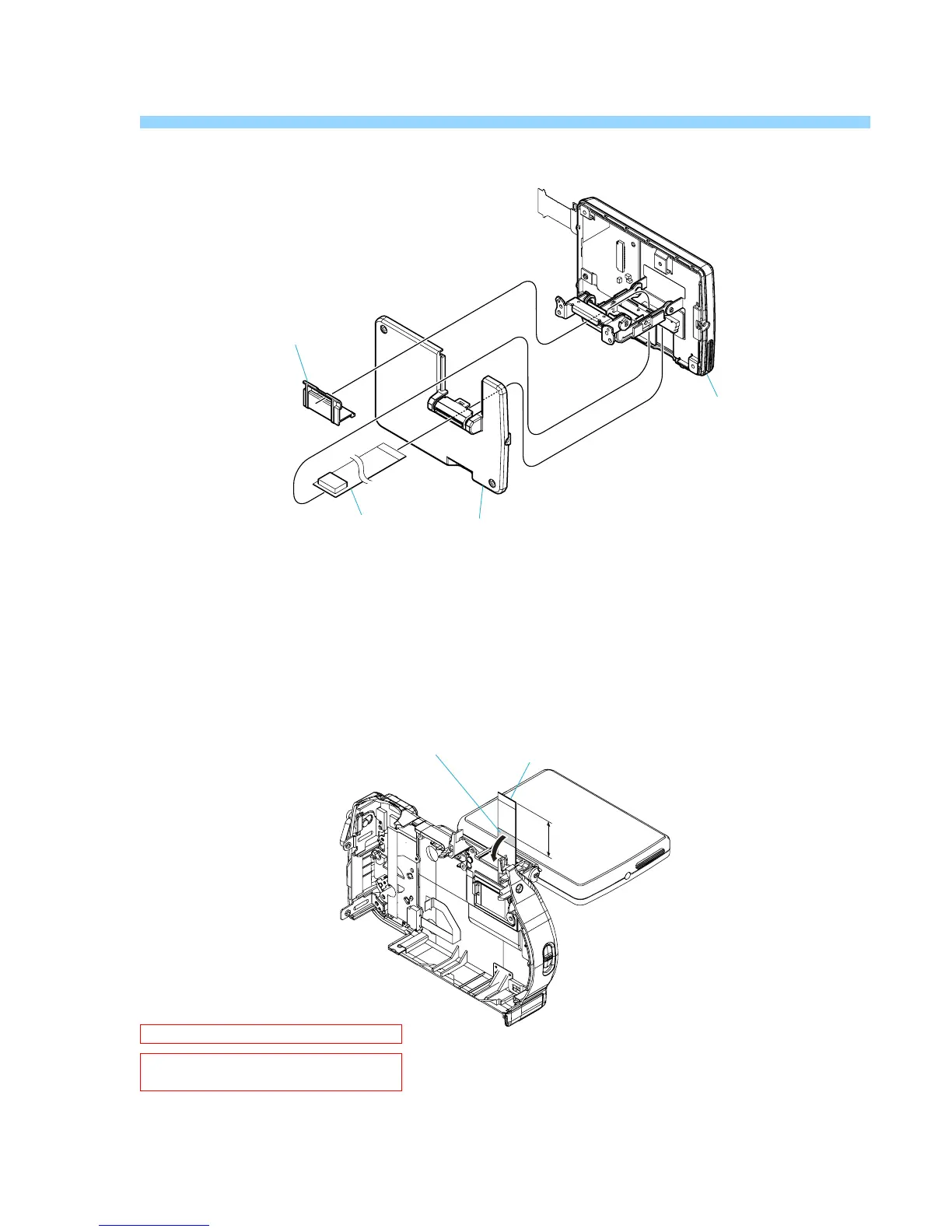

CK-182 flexible board arrangement
CK-182 flexible board sticking
CK-182 board
Cabinet (C) Assy (B), (P)
Blind Assy, Cabinet (Rear)
Panel Block Assy
25mm
CK-182 board
(Note)
adhesive sheet (4.5mm x 12mm)
Note: 接着紙(2-649-300-01)を切って使用。
Note : Cut SHEET, ADHESIVE (2-649-300-01)
into the desired length and use it.
