5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-M1

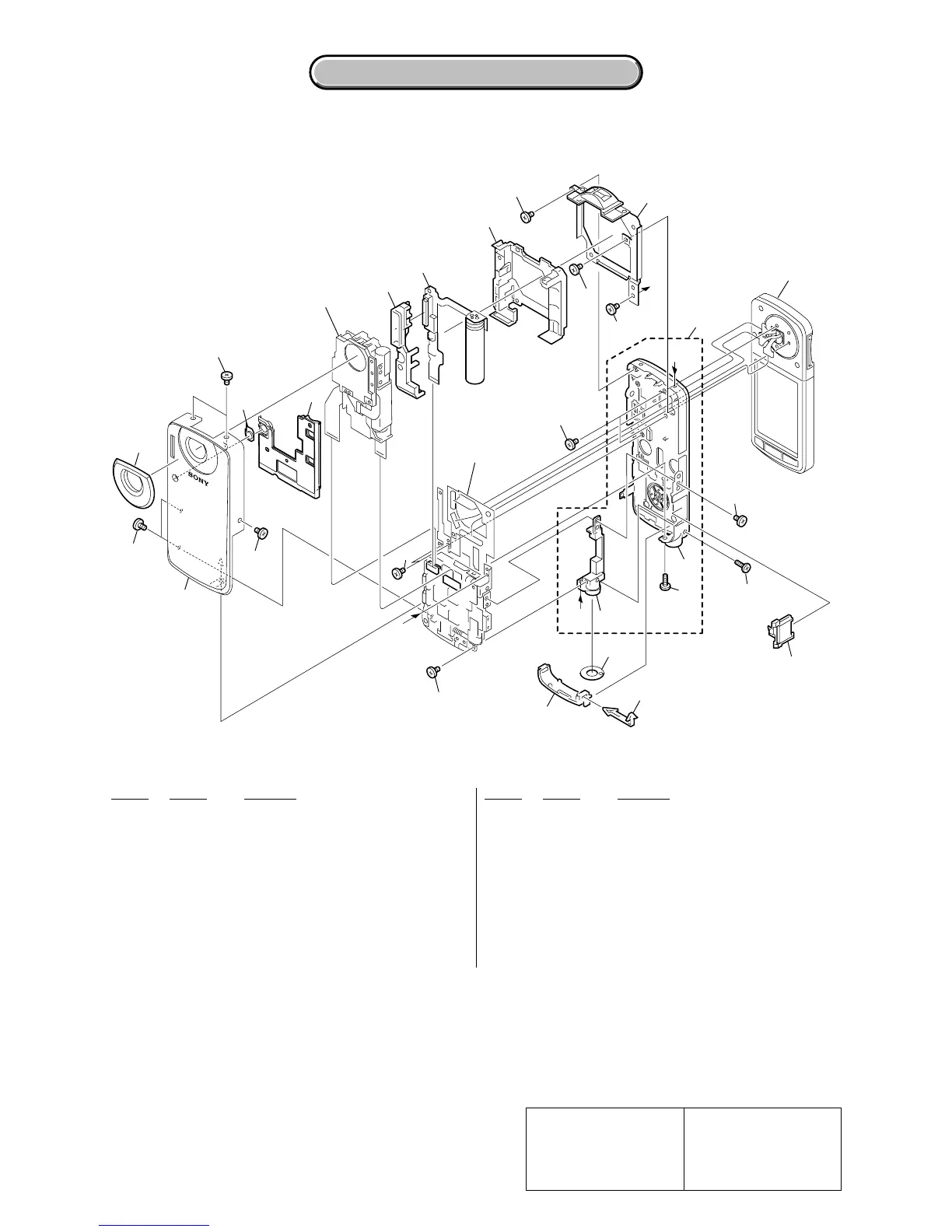

5-1-1. OVERALL SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
1 X-2024-378-1 CABINET (FRONT) ASSY
2 2-515-483-21 SCREW (M1.7), LOCK ACE, P2
3 X-2024-383-1 RING ASSY, LENS
4 X-2024-382-1 CABINET (FRONT) ASSY, INNER
5 2-320-827-01 FRAME (UPPER), ST
0 6 1-479-040-11 FLASH UNIT (FL80000)
7 2-320-828-01 FRAME (LOWER), ST
8 2-320-826-01 WINDOW, AF
9 X-2024-381-1 FRAME ASSY, LENS
10 2-515-487-01 SCREW (M2), LOCK ACE, P2
11 2-515-488-21 SCREW (M1.7), LOCK ACE, P2
12 X-2024-377-1 CABINET (REAR) ASSY
13 2-515-483-41 SCREW (M1.7), LOCK ACE, P2
14 X-2024-374-1 HOLDER ASSY, MULTI
15 2-320-889-01 SCREW, TRIPOD
16 2-320-836-01 ARM, BT
17 2-320-835-01 COVER, BT
18 3-080-204-01 SCREW, TAPPING, P2
19 2-546-143-01 SHEET METAL (SERVICE EXCLUSIVE)
5-1. EXPLODED VIEWS
LCD section
(See page 5-5, 5-6
)
Battery holder section
(See page 5-4)
Lens section
(See page 5-7)
A
B
A
B
C
C
2
3
5
6
7
10
10
11
11
11
12
9
18
18
2
8
1
2
4
17
16
14
15
13
13
ns
19
ns : not supplied
Note :
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
