5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-M1

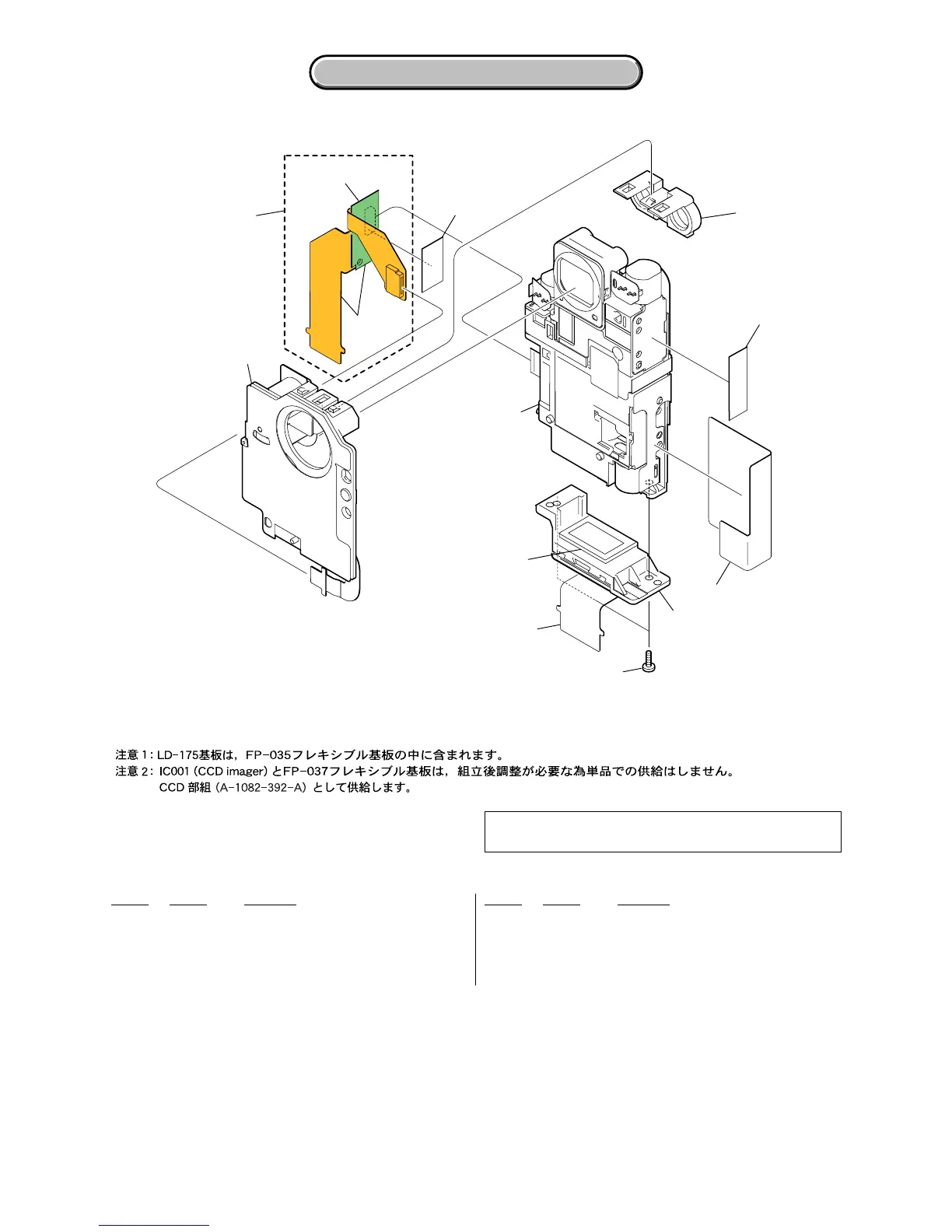

5-1-5. LENS SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
201 1-787-259-11 MOTOR UNIT
202 2-320-829-01 HOLDER, LENS BARRIER
203 A-1081-832-A FP-035 FLEXBLE BOARD
204 3-086-237-01 SHEET (LD), ADHESIVE
205 A-1082-228-A LENS ASSY (SERVICE USE)
206 3-089-781-01 SHEET (MOTOR), PROTECTION
207 2-186-593-01 SHEET, COPPER LEAF PROTECTION
208 A-1082-392-A CCD BLOCK ASSY (SERVICE) (CCD IMAGER)
209 3-086-156-11 SCREW B1.2
202
201
207
208
206
205
209
204
203
FP-037 flexible board
Note 2 :
LD-175 board
Note 1 :
CCD imager
Note 2 :
Note 1: LD-175 board is included in the FP-035 flexible board .
Note 2: IC001 (CCD imager) and the FP-037 flexible board are supplied as a pair because the need adjustment after they are combined
together. Therefore, they are not supplied as an independent part. They are supplied as the CCD block assembly (A-1082-392-A).
(Japanese)
(English)
ns
Be sure to read “Precautions upon replacing CCD imager”
on page 4-3 when changing the CCD imager.
Ver 1.1 2005. 04
