5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-M1

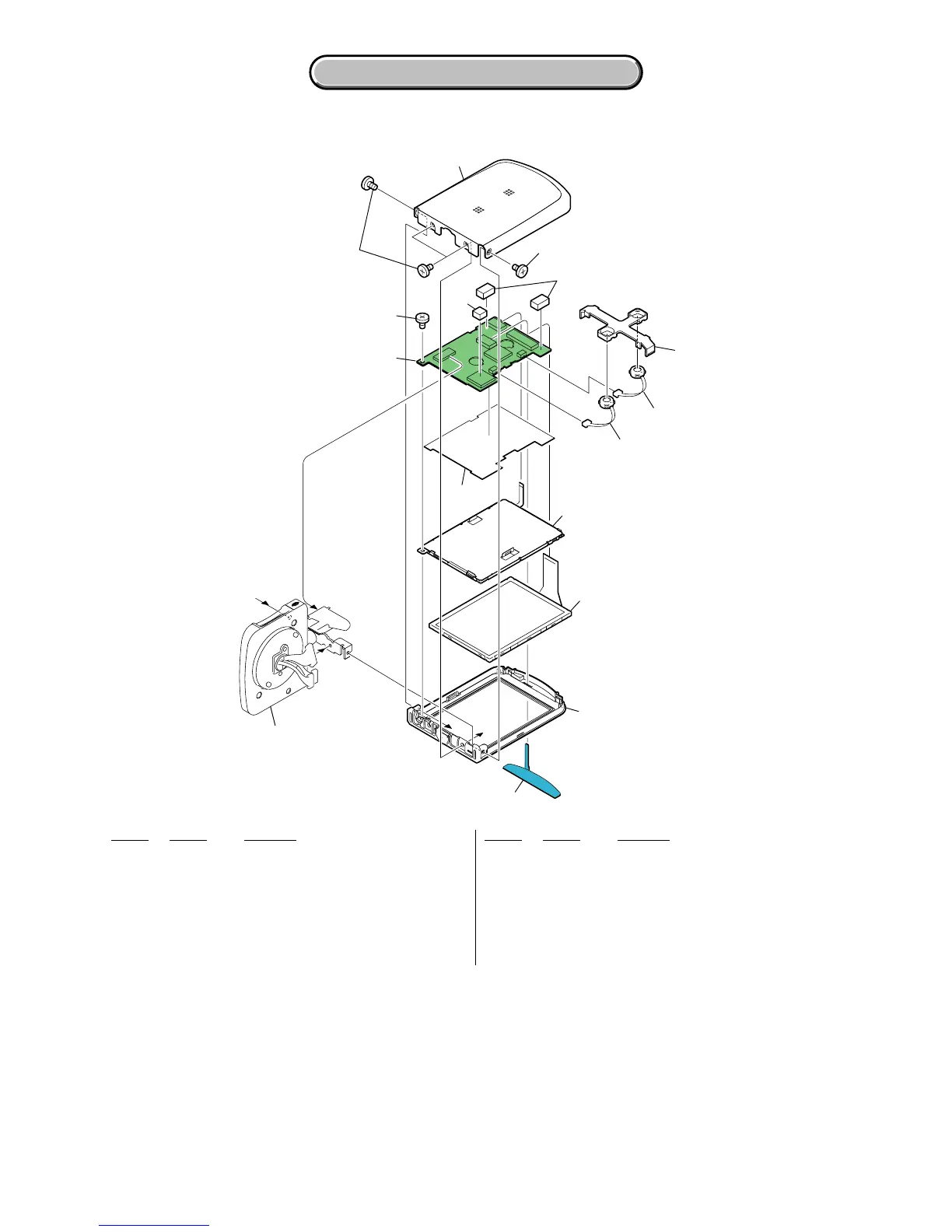

5-1-3. LCD SECTION-1
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
101 1-479-042-11 SWITCH BLOCK, CONTROL (PB80000)
102 X-2024-375-1 CABINET (M) ASSY, P
103 X-2024-380-1 CABINET (C) ASSY, P
104 A-1081-824-A PM-045 BOARD, COMPLETE
105 3-080-204-01 SCREW, TAPPING, P2
106 2-515-483-21 SCREW (M1.7), LOCK ACE, P2
107 2-514-841-01 CUSHION (A), PANEL
108 2-514-843-01 CUSHION (C), PANEL
109 2-320-824-01 RETAINER, MICROPHONE
LCD901 8-753-210-98 ACX528AK-J
LED901 1-478-462-11 BLOCK, LIGHT GUIDE PLATE (2.5)
MIC901 1-418-351-01 MICROPHONE UNIT (MIC L)
MIC902 1-418-351-01 MICROPHONE UNIT (MIC R)
P
M
-145
LCD section-2
(See page 5-6)
A
B
B
A
LED901
ns
MIC901
101
102
108
104
103
109
LCD901
MIC902
105
107
106
106
