5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-M1

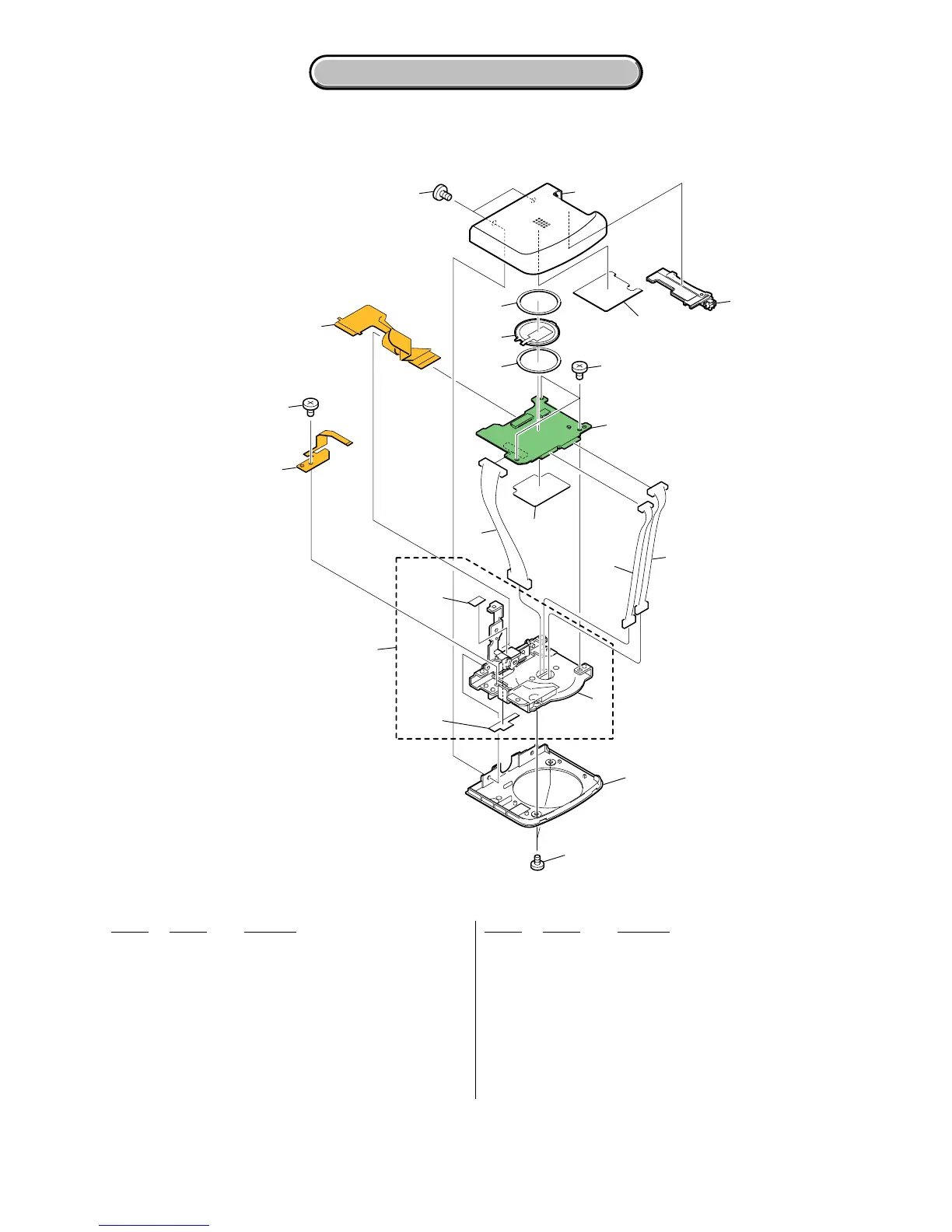

5-1-4. LCD SECTION-2
ns : not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
151 2-515-483-21 SCREW (M1.7), LOCK ACE, P2
152 2-320-823-01 CABINET, HINGE
153 2-320-833-01 SHEET (SPEAKER), ADHESIVE
154 2-320-832-01 SHEET (SP), INSULATING
155 X-2024-376-1 HINGE ASSY, LCD
156 1-963-309-11 HARNESS (MS-121)
157 1-963-308-11 HARNESS (MA-154)
158 1-963-310-11 HARNESS (PD-130)
159 2-320-831-01 SHEET (MS)
160 A-1081-825-A MS-252 BOARD, COMPLETE
161 A-1081-826-A FP-041 FLEXBLE BOARD
162 2-515-488-21 SCREW (M1.7), LOCK ACE, P2
163 X-2024-379-1 HOLDER ASSY, MS
164 1-864-626-11 FP-038 FLEXBLE BOARD
165 2-320-822-01 COVER, HINGE
166 2-320-834-01 CUSHION, RING
167 2-320-871-01 SHEET (UPPER), HINGE ADHESIVE
168 2-320-872-01 SHEET (LOWER), HINGE ADHESIVE
SP901 1-825-644-11 BUZZER, PIEZOELECTRIC (SPEAKER)
151
152
155
157
156
160
158
167
159
162
163
165
151
164
162
161
166
153
154
SP901
ns
MS-252
168
Note : For how to use the sheet, refer to
DISASSEMBLY on page 2-6.
