2-4
DSC-P52

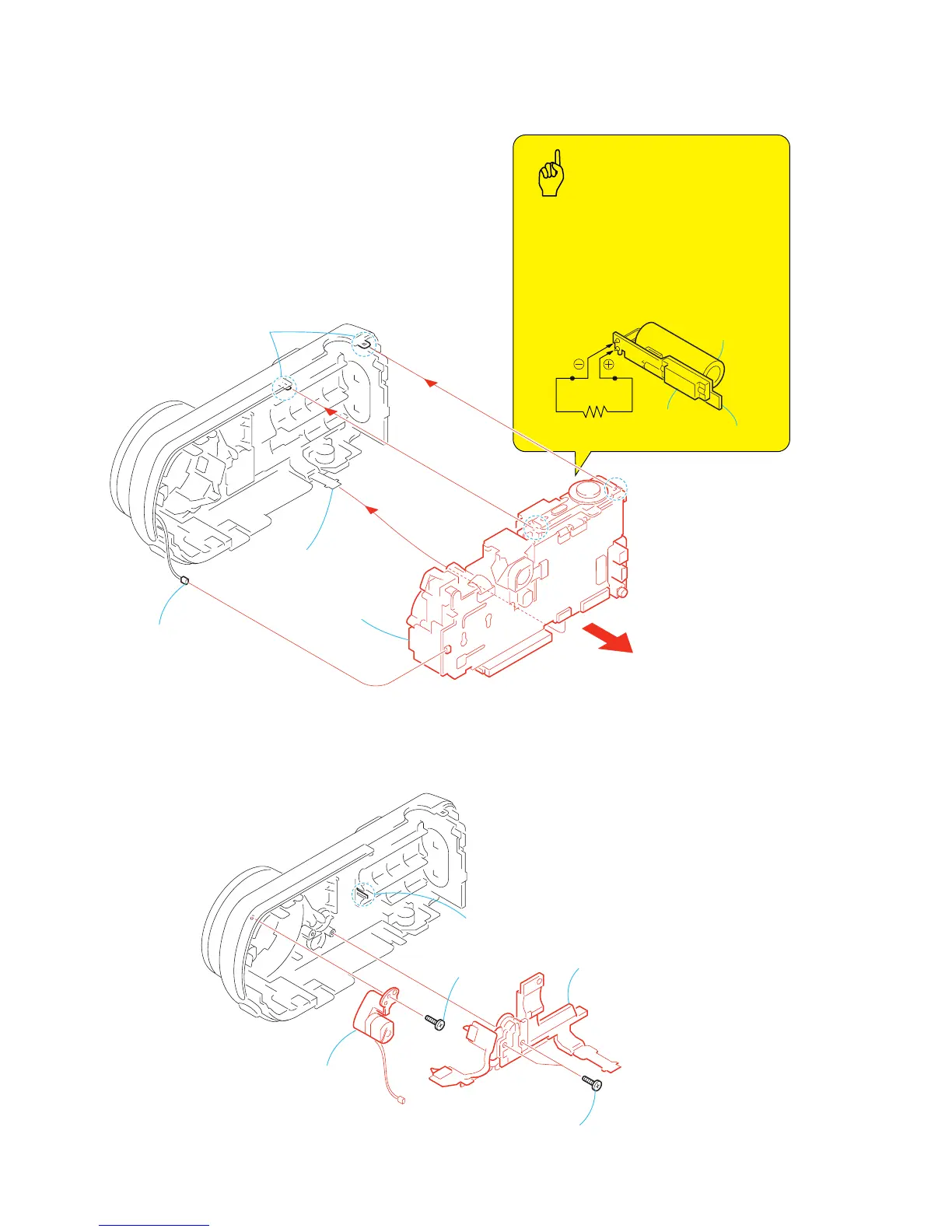

2-4. UNIT PARTS (UA-003), DC 8C-028G MOTOR
2-3. MAIN BLOCK ASSEMBLY
4
Main block assembly
3
Two claws
1
Unit parts (UA-003)
(10P)
2
DC 8C-028G motor (2P)
Shorting jig
(1k
Ω
/ 1w)
The power supply capacitor of the Flash unit is
charged to the voltage as high as 300 V at a
maximum. The high voltage is not discharged
even after the main power of the machine is
simply turned off and the charged potential still
remains.
Discharge the residual voltage by referring to
Service Note (page 1-1).
Caution
Capacitor
ST-82 board
Flash unit
1
Two tapping screws, p2
(1.7
×
5)
4
Tapping screw, p2
(1.7
×
5)
3
Unit parts (UA-003)
5
DC 8C-028G motor
2
Claw
To Next Page
