Sony DSC-P52 - Control Switch Block (Rl-060); Optical Finder (B148 B), Video Lens (B147 A)

2-5
DSC-P52

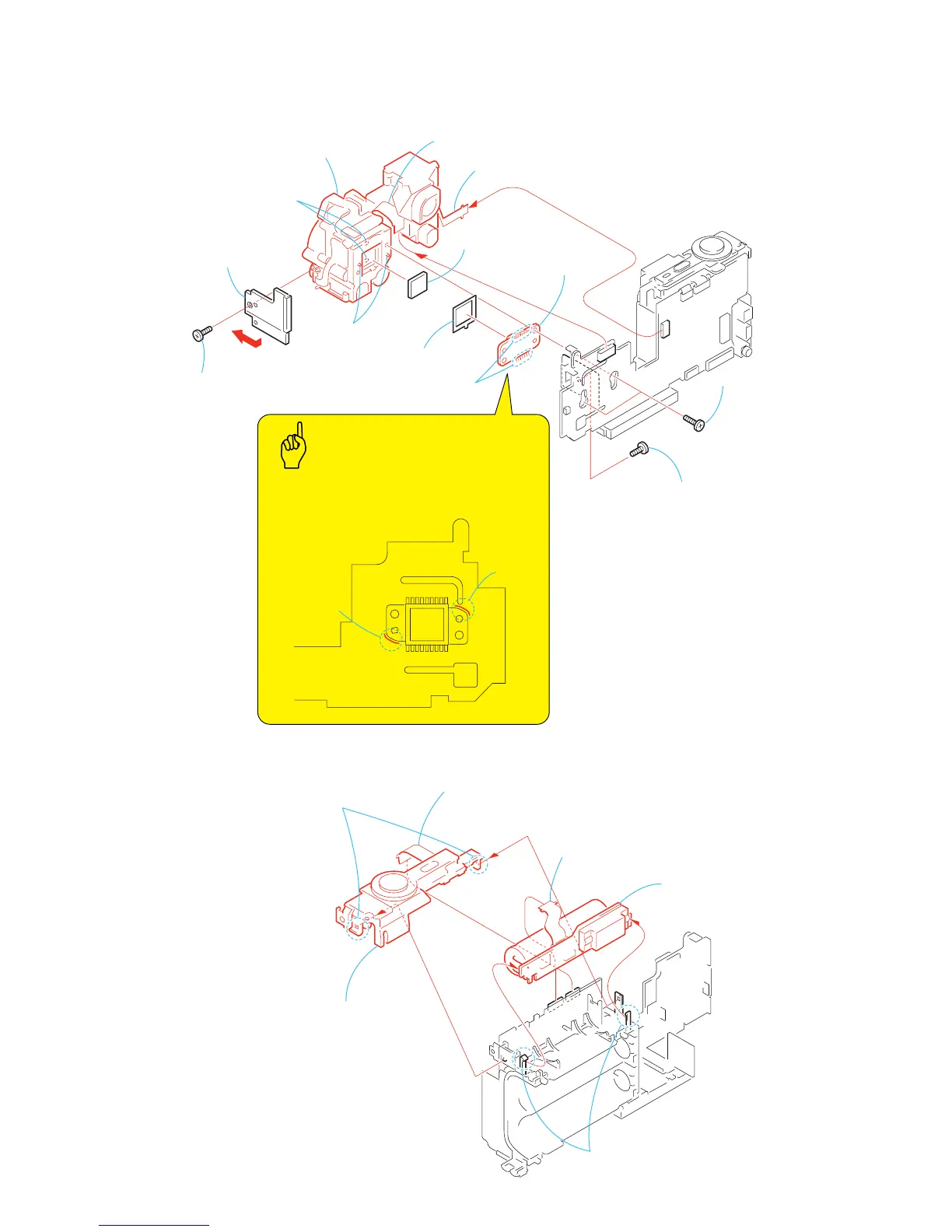

2-5. OPTICAL FINDER (B148B), VIDEO LENS (B147A), CCD BLOCK ASSEMBLY
q; Optical filter block
9 Optical finder (B148B), video lens (B147A)
1 FP689 flexible board (21P)
2 Optical finder (8P)
qs Remove the solderings.
qd CCD block assembiy
5 Two tapping screws ,p2
(1.7 × 5)
3 Tapping screw
(1.7 × 4)
6 Tapping screw
(1.7 × 4)
4 Lens frame (R)
8 two bosses
7 T wo bosses
qa Seal rubber (DQ)
Caution
mark
mark
When installing the CCD block assy,
align the CCD block assy with the mark as shown
in the illustration.
2 Control switch block (RL-060)
(10P)
3 Control switch block (RL-060)
5 FP-643 flexible board
(12P)
1 Two claws
4 Two claws
6 ST-82 boar
d
2-6. CONTROL SWITCH BLOCK (RL-060), ST-82 BOARD
