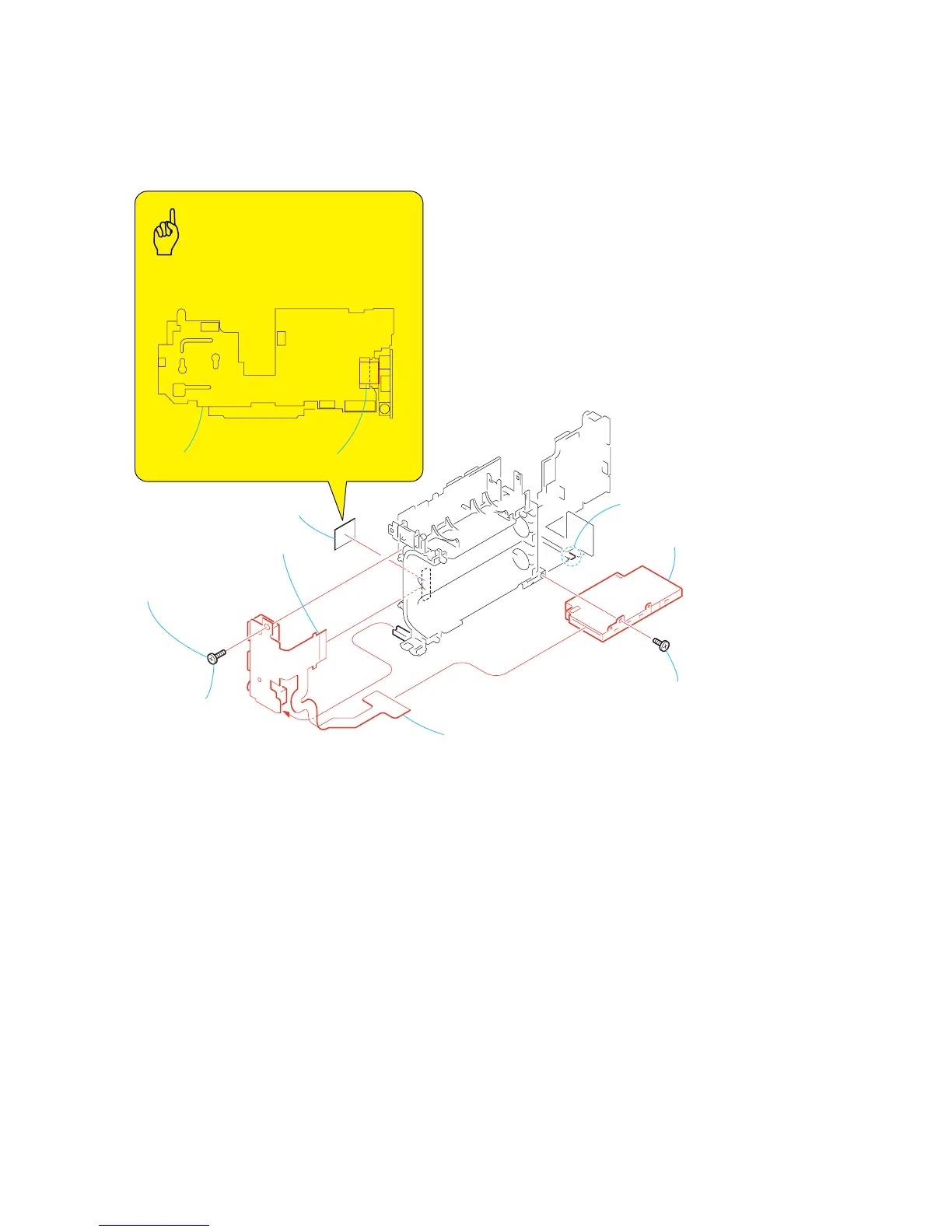

2-7. MEMORY STICK CONNECTOR, JK BLOCK (JK-256)
1 Tapping screw
(1.7
× 4)
5 Tapping screw, p2
(1.7
× 5)
4 Memory stick connecto
r
7 JK BLOCK (JK-256)
(39P)
8 JK BLOCK (JK-256)
3 JK BLOCK (JK-256)
(10P)
2 Claw
Tape (Y)
SY-91 board
Caution
Attach the Tape (Y) as shown in the illustration.
6 Tape (Y)
