5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

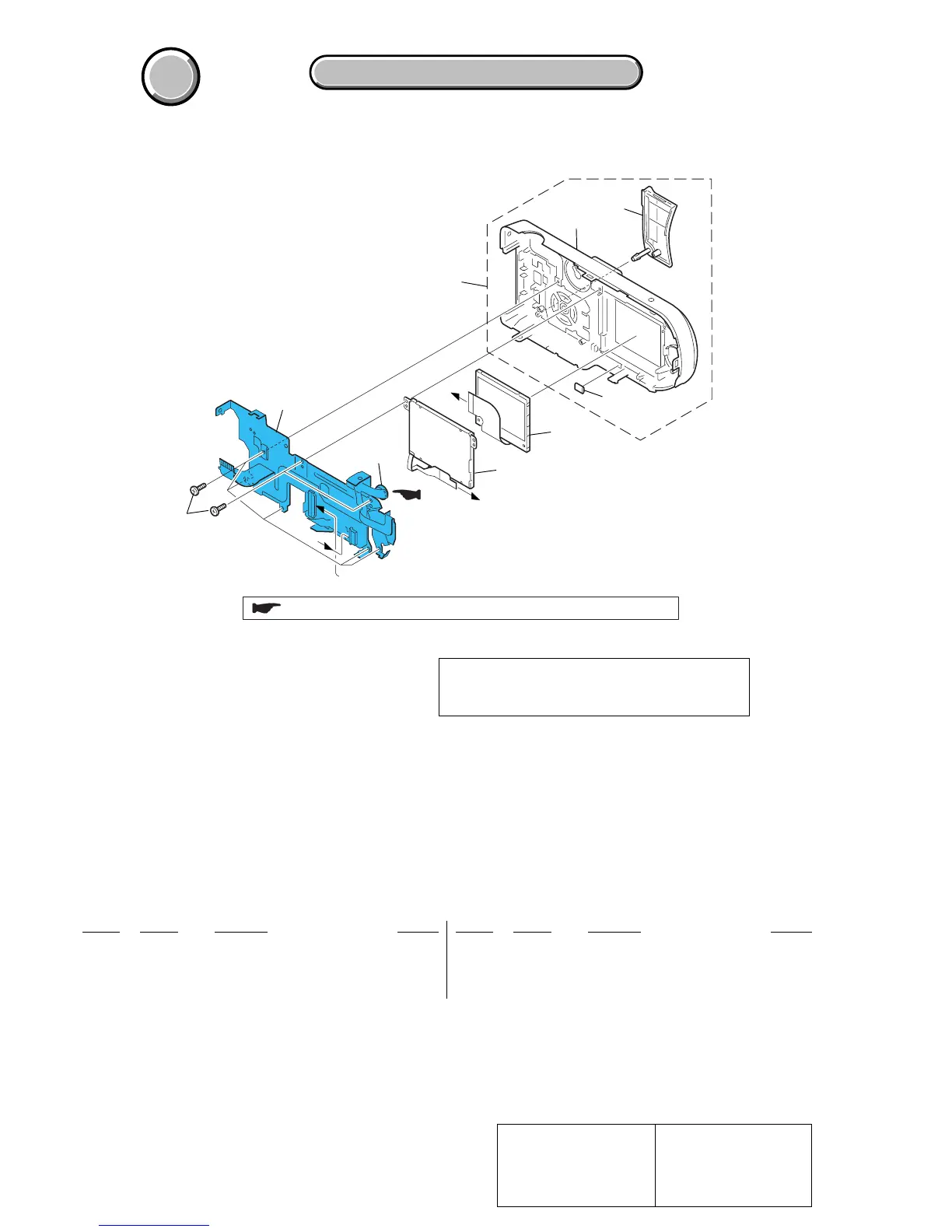

5-1-2. CABINET (REAR) BLOCK SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-078-890-11 SCREW, TAPPING
52 1-477-906-11 CONTROL SWITCH BLOCK (SW-392)
53 X-3953-323-1 CABINET (REAR) ASSY
54 3-080-985-01 COVER, JACK
55 3-083-057-01 CUSHION (ISB), ELECTROSTATIC
0 ND901 1-477-761-11 BLOCK LIGHT GUIDE PLATE (1.5)
LCD901 1-805-168-21 INDICATOR MODULE LIQUID CRYST
ns : not supplied
Note :
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
52
51
ns
LCD901
54
55
53
BT100
A
A
B
B
ND901
: For the installation position of BT100 (Lithium battery), refer to page 2-3
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
