Sony DSC-R1 Service Manual

DSC-R1_L2
2. DISASSEMBLY
2. DISASSEMBLY
2-5 2-6

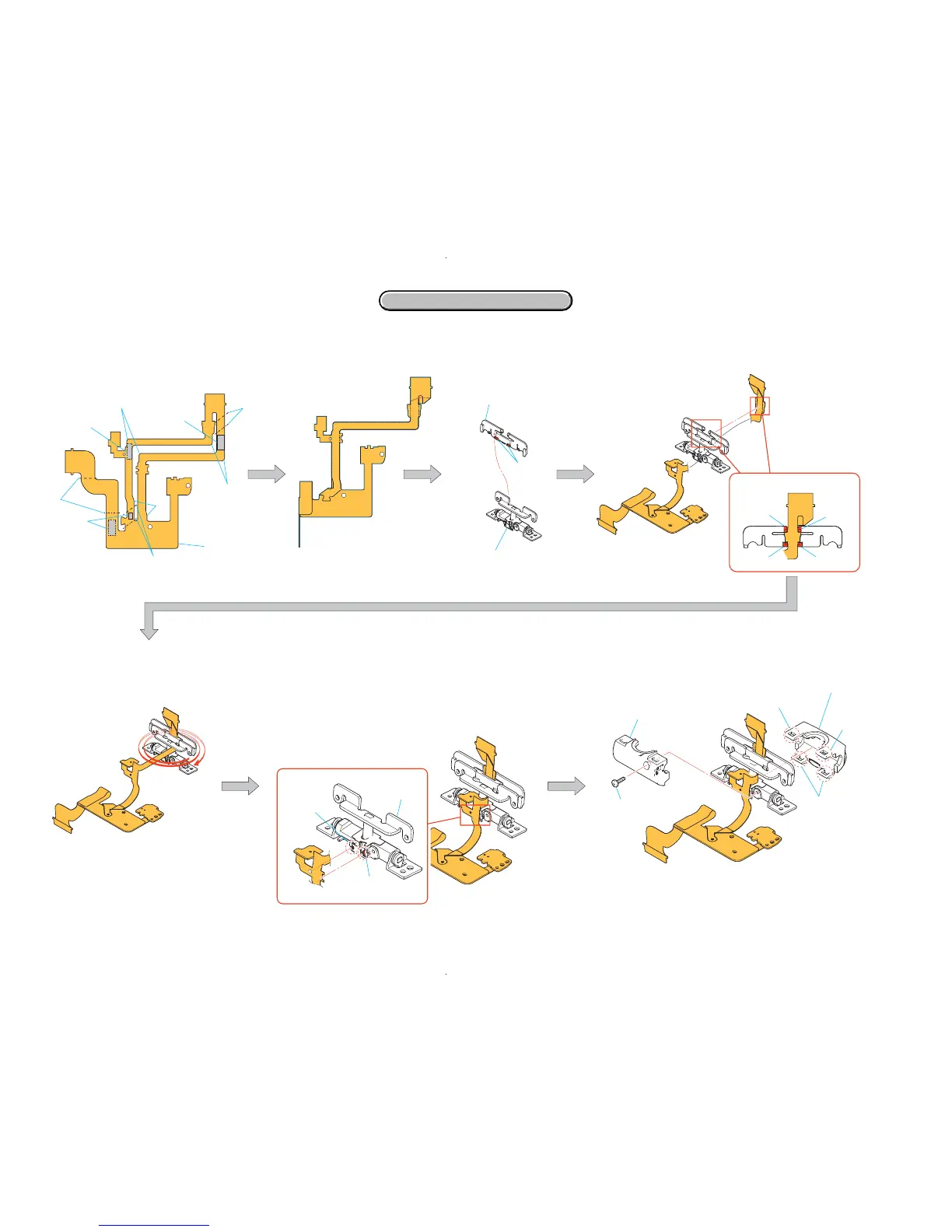

2-2. THE METHOD OF ATTACHMENT OF PN-002 FLEXIBLE BOARD
Fold
Fold
Fold
Adhesive tape
Adhesive tape
Adhesive tape
A
B
C
1The A and A, B and B, C and C section
are united and an angle is folded.
2An angle is folded.
6Set the hinge (ZZ) assembly and PN-002 flexible board.
7Screw (M1.7x3) (black)
PN-002 flexible board
LCFPC holder
Claw
Claw
Claw
Claw
8LC hinge cover (L)
9LC hinge cover (U)
Claw
Claw
Claw
Claw
5Roll the the PN-002 flexible board 1.5 times,
in the direction of arrow
A.
5Set the LCFPC holder
and hinge (ZZ) assembly.
5Set the LCFPC holder
and PN-002 flexible board.
A
Hinge (ZZ) assembly
Boss
Claw
Hinge (ZZ)
assembly

Sony DSC-R1 Specifications

General

Sensor Type	CMOS
Sensor Size	21.5 x 14.4 mm
Effective Pixels	10.3 Megapixels
Lens	Carl Zeiss Vario-Sonnar T*
Focal Length	24-120 mm (35mm equivalent)
ISO Sensitivity	160-3200
Shutter Speed	30 - 1/2000 sec
Image Formats	JPEG, RAW
Battery	NP-FM50 InfoLithium rechargeable battery
Weight	995 g (including battery)
Aperture Range	f/2.8-4.8
LCD Screen	2.0-inch, 134, 000 pixels
Viewfinder	Electronic (EVF), 235, 000 pixels
Storage Media	CompactFlash, Memory Stick
Dimensions	139 x 97 x 156 mm
Camera Type	Digital SLR-like camera
